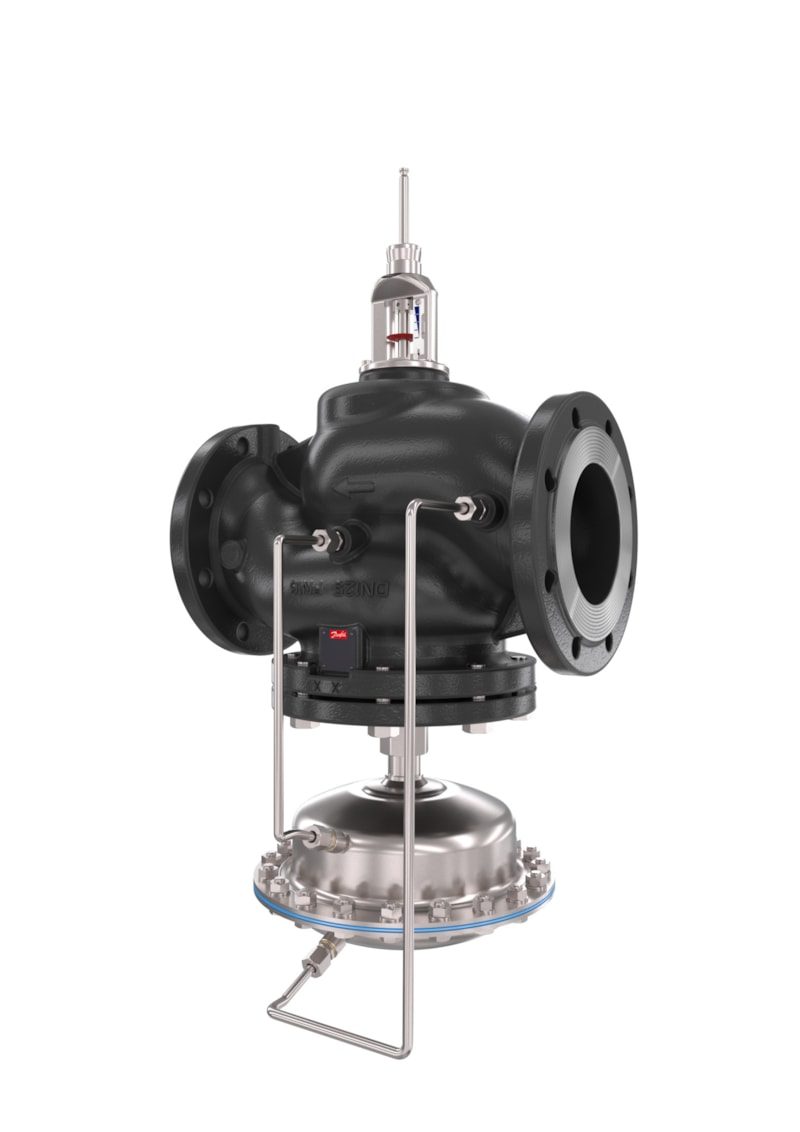

Danfoss AFQM 2 DN 150 PN 16 pressure-independent flow control valve — flange, Kvs 380 m³/h, flow 32–160 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AFQM 2 DN 150 PN 16 — self-acting pressure-independent flow control valve (flow limiter with integrated control valve) for district heating and district cooling circuits. Combines automatic flow limitation with a control valve in one body; the flow set point is held independent of differential-pressure variation across the valve. Flange connection. Kvs 380 m³/h; adjustable flow range 32–160 m³/h (flow restrictor differential pressure dpb 0.2 bar). Media temperature 2 °C to 150 °C. Maximum operating pressure 16 bar. Body Grey cast iron EN-GJL-250 (GG-25); valve cone and seat Stainless steel mat. No. 1.4021; EPDM seals and rolling diaphragm. Normally-open stem, stroke 23 mm. Medium: district heating/cooling circulation water (glycolic water up to 30%). OEM designation "AFQM 2, PN 16, DN 150, Flow rate [m³/h]: 32 - 160, Flange, Mounting version: Free". OEM P/N 003G5508. EAN 5714279065077. Technical data quoted verbatim from store.danfoss.com (code 003G5508).
Technical Specifications
- Code number
- 003G5508
- Type
- AFQM 2
- Product group
- Pressure flow controllers
- Gross weight
- 168 Kilogram
- Net weight
- 142.5 Kilogram
- Volume
- 499.2 Liter
- Actuator diaphragm material
- EPDM (Rolling, fibre enforced)
- Actuator size [cm²]
- 320 cm²
- Application
- District heating and cooling
- Cavitation factor
- 0.4
- Cavitation factor 100%
- 0.34
- Cavitation factor 25%
- 0.64
- Cavitation factor 50%
- 0.64
- Cavitation factor 75%
- 0.41
- China RoHS compliance
- Out of scope
- Connection size
- DN 150
- Connection types
- Flange
- Contains batteries
- No
- Description
- Pressure independent control valve
- Diameter [mm]
- 150 mm
- Differential pressure range [bar] [Max]
- 12 bar
- EU RoHS compliance
- Out of scope
- Flow control
- Yes
- Flow limitation
- Yes
- Flow rate [m³/h]
- 160 m³/h
- Flow rate [m³/h] [Max]
- 160 m³/h
- Flow rate [m³/h] [Min]
- 32 m³/h
- Flow restrictor diff.pressure - dpb [bar]
- 0.2 bar
- Function
- Flow controller with int. control valve
- Function VSP - P
- No
- Function VSP - Q
- No
- Function VSP - T
- No
- Kvs values [m³/h]
- 380 m³/h
- Leakage rate [% Kvs]
- 0.01
- Leakage through port max. [% Kvs]
- 0.01
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 150 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Free
- Number of ports
- 2
- Operating pressure [bar] [Max]
- 16 bar
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 25
- Pressure class
- PN 16
- Pressure controller
- No
- Pressure nominal [bar]
- 16 bar
- Pressure relieve system control valve insert
- Chamber
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sealing CV material
- EPDM
- Sealing DP material
- EPDM
- Setting Type
- Fixed
- Stem position
- Normally open
- Stroke [mm]
- 23 mm
- Valve body material
- Grey cast iron EN-GJL-250 (GG-25)
- Valve cone CV material
- Stainless steel mat. No. 1.4021
- Valve cone DP material
- Stainless steel mat. No. 1.4021
- Valve seat DP material
- Stainless steel, mat. No. 1.4021
- Valve seat material
- Stainless steel, mat. No. 1.4021
- Valve size
- DN 150
- EAN
- 5714279065077
- HS code
- 8481.80
Standards & Compliance
- Size / Series
- AFQM 2
- Material
- Valve body Grey cast iron EN-GJL-250 (GG-25); cone/seat Stainless steel mat. No. 1.4021; EPDM diaphragm and seals
- Pressure Rating
- PN 16
- Temperature Range
- 2 °C to 150 °C
- HS Code
- 8481.80
Compatibility & Fitment
AFQM 2 is a self-acting flow limiter with an integrated control valve; select by pipe size (DN 150), pressure class (PN 16) and required flow range. The AFQM range spans DN 65–250 in PN 16 / PN 25 / PN 40, each size offered in two overlapping flow bands (flow-restrictor dpb 0.2 bar or 0.5 bar). For combined flow + differential-pressure limitation use AFQMP; for an external electric set-point use the AFQM 6 / motorised variants. Confirm DN, PN and flow band against the AFQM data sheet before ordering.
