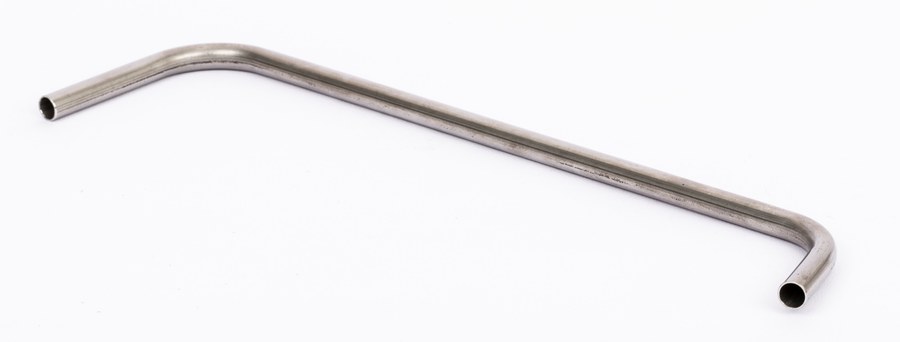

Danfoss AF-range impulse tube set for AFPB (-F) controllers — valve DN 40, PN 40, 10 mm × G 1/4, Stainless steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AF-range impulse tube set (OEM designation "Impulse tubes for AFPB (-F) PN40 40"). The impulse tubes connect the diaphragm chamber of a Danfoss self-acting AF-range pressure/flow controller actuator to the pressure-sensing tapping(s) on the pipework, transmitting the pipe pressure to the actuator so it can hold the set differential pressure or flow. This set is matched to the AFPB (-F) controller on valve size DN 40 at PN 40. Tube outer diameter 10 mm; union connection G 1/4; material Stainless steel. Permissible medium: District heating/cooling circulation water. OEM P/N 003G1359. EAN 5702421812099. Technical data quoted verbatim from store.danfoss.com (code 003G1359).
Technical Specifications
- Code number
- 003G1359
- Type
- Impulse tubes
- Product group
- Accessories - SAC
- Gross weight
- 0.088 Kilogram
- Net weight
- 0.088 Kilogram
- Volume
- 0.549 Liter
- Connection size
- G 1/4
- Contains batteries
- No
- Description
- Impulse tubes for AFPB (-F) PN40 40
- Diameter [mm]
- 10 mm
- EU RoHS compliance
- Yes with exemptions
- For product type
- AFPB (-F)
- For valve size
- DN 40
- Material
- Stainless steel
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 40 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- SCIP dossier no.
- 4faab7a1-b51b-40d1-b265-5c393b635759
- SCIP dossier product name
- AF IMPULSE TUBES (2)
- Suitable for valve of diameter [mm] [Max]
- 40 mm
- Suitable for valve of diameter [mm] [Min]
- 40 mm
- Suitable for valve of pressure [bar] [Max]
- 40 bar
- Suitable for valve of pressure [bar] [Min]
- 16 bar
- EAN
- 5702421812099
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Impulse tubes
- Material
- Stainless steel
- Thread Standard
- G 1/4
- Pressure Rating
- PN 40
- HS Code
- 8481.90
Compatibility & Fitment
Impulse tubes are ordered to match the controller Type and the valve size/pressure class. This set fits AFPB (-F) controllers at valve size DN 40, PN 40. Confirm the controller Type, valve DN and PN against the AF-range data sheet before ordering — impulse tube length and fittings differ between controller families (AFQ, AFP/AFPB, AFPQ, AFPQ4/AVPQ).
Product Documentation
More from Danfoss
Danfoss
Danfoss AF-range impulse tube set for AFPB (-F) controllers — valve DN 50, PN 40, 10 mm × G 1/4, Stainless steel
003G1360
Danfoss
Danfoss AF-range impulse tube set for AFPB (-F) controllers — valve DN 65/80, PN 40, 10 mm × G 1/4, Stainless steel
003G1361
Danfoss
Danfoss AF-range impulse tube set for AFPB (-F) controllers — valve DN 100, PN 40, 10 mm × G 1/4, Stainless steel
003G1363
Danfoss
Danfoss AF-range impulse tube set for AFPB (-F) controllers — valve DN 125, PN 40, 10 mm × G 1/4, Stainless steel
003G1364
Danfoss
Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 15/20, PN 40, 10 mm × G 1/4, Stainless steel
003G1365
Danfoss
Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 25/32, PN 40, 10 mm × G 1/4, Stainless steel
003G1367
Danfoss

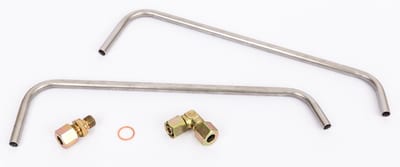

Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 40, PN 40, 10 mm × G 1/4, Stainless steel
