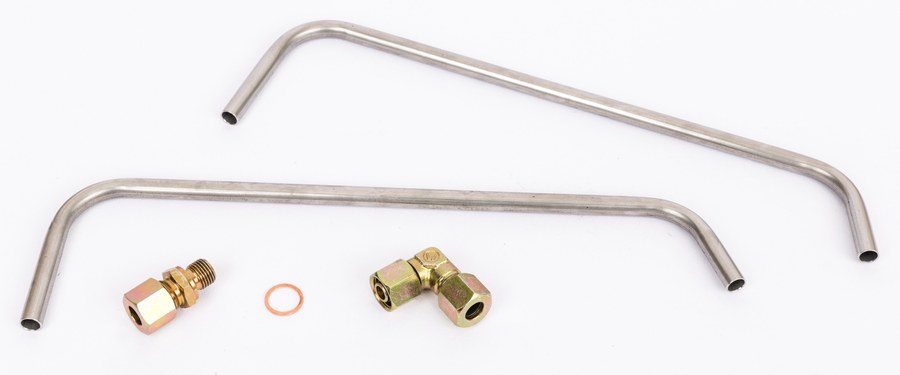

Danfoss AF-range impulse tube set for AFPQ controllers — valve DN 25/32, PN 40, 10 mm × G 1/4, Stainless steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AF-range impulse tube set (OEM designation "Impulse tubes for AFPQ PN40 25/32"). The impulse tubes connect the diaphragm chamber of a Danfoss self-acting AF-range pressure/flow controller actuator to the pressure-sensing tapping(s) on the pipework, transmitting the pipe pressure to the actuator so it can hold the set differential pressure or flow. This set is matched to the AVPQ controller on valve size DN 25/32 at PN 40. Tube outer diameter 10 mm; union connection G 1/4; material Stainless steel. Permissible medium: District heating/cooling circulation water. OEM P/N 003G1367. EAN 5702421812174. Technical data quoted verbatim from store.danfoss.com (code 003G1367).
Technical Specifications
- Code number
- 003G1367
- Type
- Impulse tubes
- Product group
- Accessories - SAC
- Gross weight
- 0.314 Kilogram
- Net weight
- 0.314 Kilogram
- Volume
- 0.5 Liter
- Connection size
- G 1/4
- Contains batteries
- No
- Description
- Impulse tubes for AFPQ PN40 25/32
- Diameter [mm]
- 10 mm
- EU RoHS compliance
- Yes with exemptions
- For product type
- AVPQ
- For valve size
- DN 25 DN 32
- Material
- Stainless steel
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 40 bar
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- SCIP dossier no.
- 4faab7a1-b51b-40d1-b265-5c393b635759
- SCIP dossier product name
- AF IMPULSE TUBES (2)
- Suitable for valve of diameter [mm] [Max]
- 32 mm
- Suitable for valve of diameter [mm] [Min]
- 25 mm
- Suitable for valve of pressure [bar] [Max]
- 40 bar
- Suitable for valve of pressure [bar] [Min]
- 16 bar
- EAN
- 5702421812174
- HS code
- 8481.90
Standards & Compliance
- Size / Series
- Impulse tubes
- Material
- Stainless steel
- Thread Standard
- G 1/4
- Pressure Rating
- PN 40
- HS Code
- 8481.90
Compatibility & Fitment
Impulse tubes are ordered to match the controller Type and the valve size/pressure class. This set fits AVPQ controllers at valve size DN 25/32, PN 40. Confirm the controller Type, valve DN and PN against the AF-range data sheet before ordering — impulse tube length and fittings differ between controller families (AFQ, AFP/AFPB, AFPQ, AFPQ4/AVPQ).
