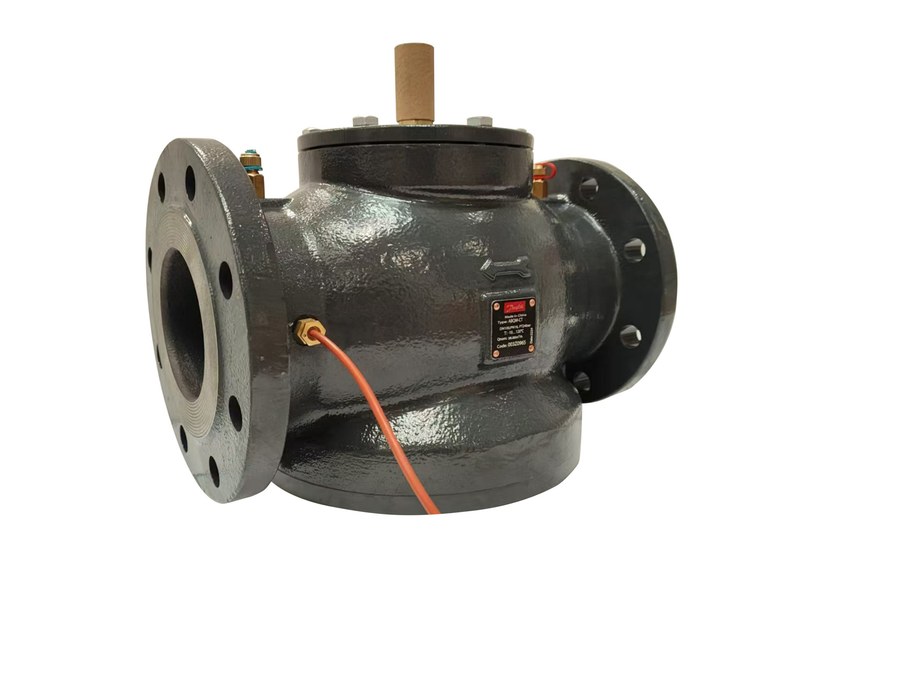

Danfoss AB-QM DN 65 pressure-independent balancing & control valve flange (003Z0963)

Danfoss AB-QM DN 65 — pressure-independent balancing and control valve (PICV) with a flange connection and a temperature-sensor port. A single AB-QM valve combines three functions in one body: an automatic flow limiter that holds the set flow constant regardless of pressure fluctuations elsewhere in the system, a control valve (operated by a Danfoss thermal or modulating actuator on the Danfoss standard connection), and a manual shut-off. Presetting fixes the maximum flow so the branch is inherently balanced — no separate manual balancing valve or commissioning flow-measurement is required. Grey iron (EN-GJL-250) body, PN 16, 20 m³/h nominal flow, up to 600 KPa max differential, stroke 15 mm, media temperature -10 °C to 120 °C, supplied temperature-sensor port. OEM P/N 003Z0963. EAN 5715162930861. Technical data quoted verbatim from store.danfoss.com (code 003Z0963).

Code number

003Z0963

Type

AB-QM

Version

AB-QM

Product group

Pressure independent balancing and control valves

Description

AB-QM DN 65, flange, with one temper sensor, pressure independent balancing and control valve

Valve size

DN 65

Valve body material

Grey iron (EN-GJL-250)

Connection types

Flange

Actuator connection

Danfoss standard

Test plugs

With test plugs

Pressure class

PN 16

Flow nominal [m³/h]

20 m³/h

Stroke [mm]

15 mm

Differential pressure [kPa] [Max]

600 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Contains batteries

No

EU RoHS compliance

Out of scope

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Net weight

36 Kilogram

Gross weight

38 Kilogram

Volume

17.835 Cubic decimeter

EAN

5715162930861

Material

Valve body Grey iron (EN-GJL-250)

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
