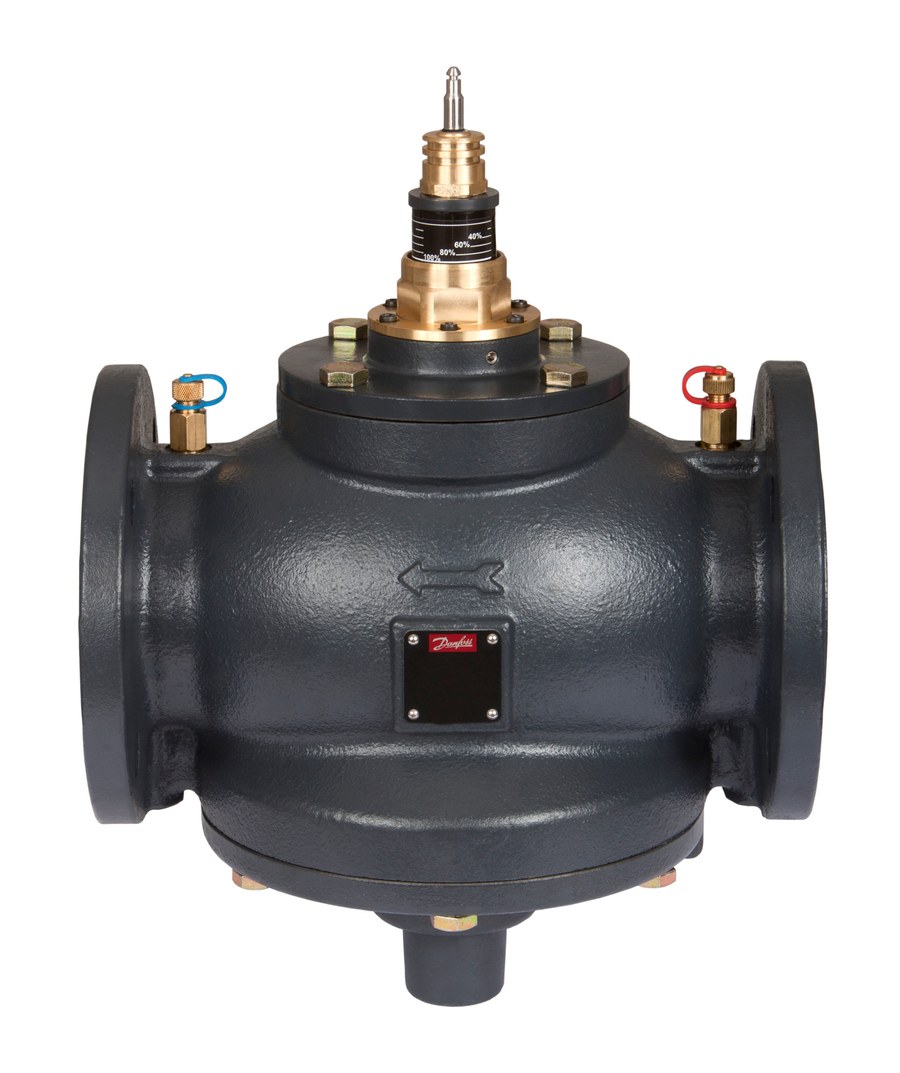

Danfoss AB-QM ANSI 3" high-flow pressure-independent balancing & control valve ANSI flange

Danfoss AB-QM ANSI 3" (high-flow) — pressure-independent balancing and control valve (PICV) with a ANSI flange connection. A single AB-QM valve combines three functions in one body: an automatic flow limiter that holds the set flow constant regardless of pressure fluctuations elsewhere in the system, a control valve (operated by a Danfoss thermal or modulating actuator on the M30 x 1.5 connection), and a manual shut-off. Presetting fixes the maximum flow so the branch is inherently balanced — no separate manual balancing valve or commissioning flow-measurement is required. Grey cast iron (A48 No. 35A) body,, 176 gal/min nominal flow, 9 psi to 60 psi control differential, stroke 15 mm, media temperature 15 °F to 250 °F, supplied with test plugs. OEM P/N 003Z0984. EAN 5714279008913. Technical data quoted verbatim from store.danfoss.com (code 003Z0984).

Code number

003Z0984

Type

AB-QM ANSI

Product group

Pressure independent balancing and control valves

Description

AB-QM 3" High flow, pressure independent balancing and control valve

Valve size

3"High flow

Valve body material

Grey cast iron (A48 No. 35A)

Connection types

ANSI Flange

Actuator connection

M30 x 1.5

Test plugs

With test plugs

Flow nominal [m³/h]

0 m³/h

Flow [gpm] [Max]

176 gal/min

Stroke [mm]

15 mm

Differential pressure range [psi] [Min]

9 psi

Differential pressure range [psi] [Max]

60 psi

Static pressure [psi] [Max]

300 psi

Media temperature [°F] [Min]

15 °F

Media temperature [°F] [Max]

250 °F

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

43 Kilogram

Gross weight

44.5 Kilogram

Volume

83.434 Liter

EAN

5714279008913

Material

Valve body Grey cast iron (A48 No. 35A)

Temperature Range

15 °F to 250 °F (media)

Classification / Approval

CE

HS Code

8481.80
