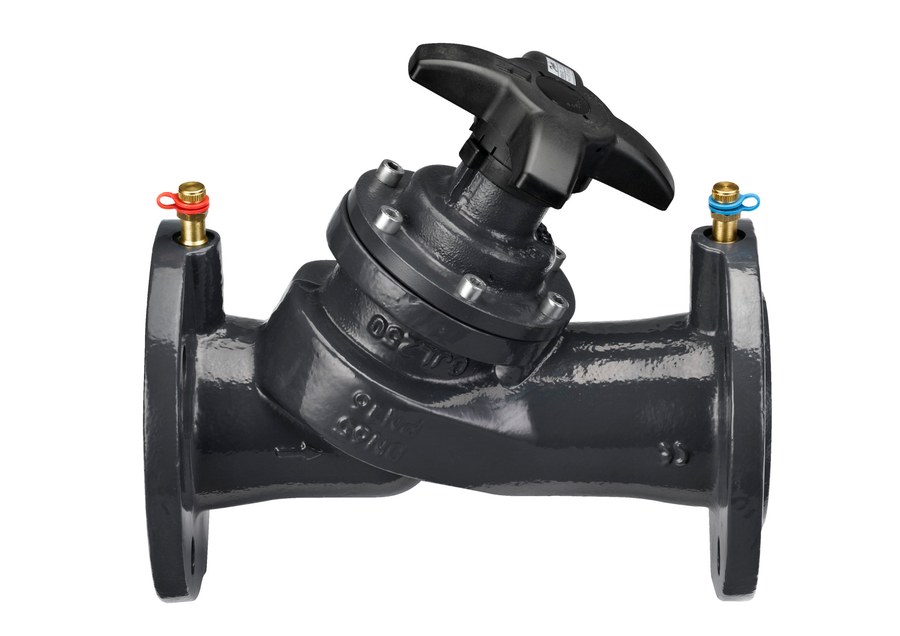

Danfoss MSV-F2 DN 65 PN 16 flanged manual static balancing valve

Danfoss MSV-F2 DN 65 PN 16 — flanged manual (static) double-regulating balancing valve for the main risers and branches of heating and cooling systems. Presetting the handwheel fixes the valve authority so design flow is distributed correctly across the network; the two built-in test plugs allow differential-pressure and flow measurement for commissioning without extra tappings, and the valve doubles as a shut-off. Kvs 93.4 m³/h, maximum differential pressure 150 KPa, media temperature -10 °C to 130 °C, Cast iron (EN-GJL-250) body. OEM P/N 003Z1062. EAN 5702421551394. Technical data quoted verbatim from store.danfoss.com (code 003Z1062).

Code number

003Z1062

Type

MSV-F2

Product group

Manual balancing

Description

MSV-F2 DN 65 with test plugs PN16, manual balancing valve

Valve size

DN 65

Valve body material

Cast iron (EN-GJL-250)

Connection types

Flange

Test plugs

With test plugs

Setting scale

Yes

Shut-off function

Yes

Drain function

No

Pressure class

PN 16

Kvs values [m³/h]

93.4 m³/h

Differential pressure over the valve [kPa] [Max]

150 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

130 °C

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

b53622cd-50a2-4626-a23a-856f12c6983e

SCIP dossier product name

MSV-F2 MNF DN15-300

Net weight

14.8 Kilogram

Gross weight

16.668 Kilogram

Volume

33.922 Liter

EAN

5702421551394

Material

Valve body Cast iron (EN-GJL-250)

Pressure Rating

PN 16

Temperature Range

-10 °C to 130 °C (media)

Classification / Approval

CE

HS Code

8481.80
