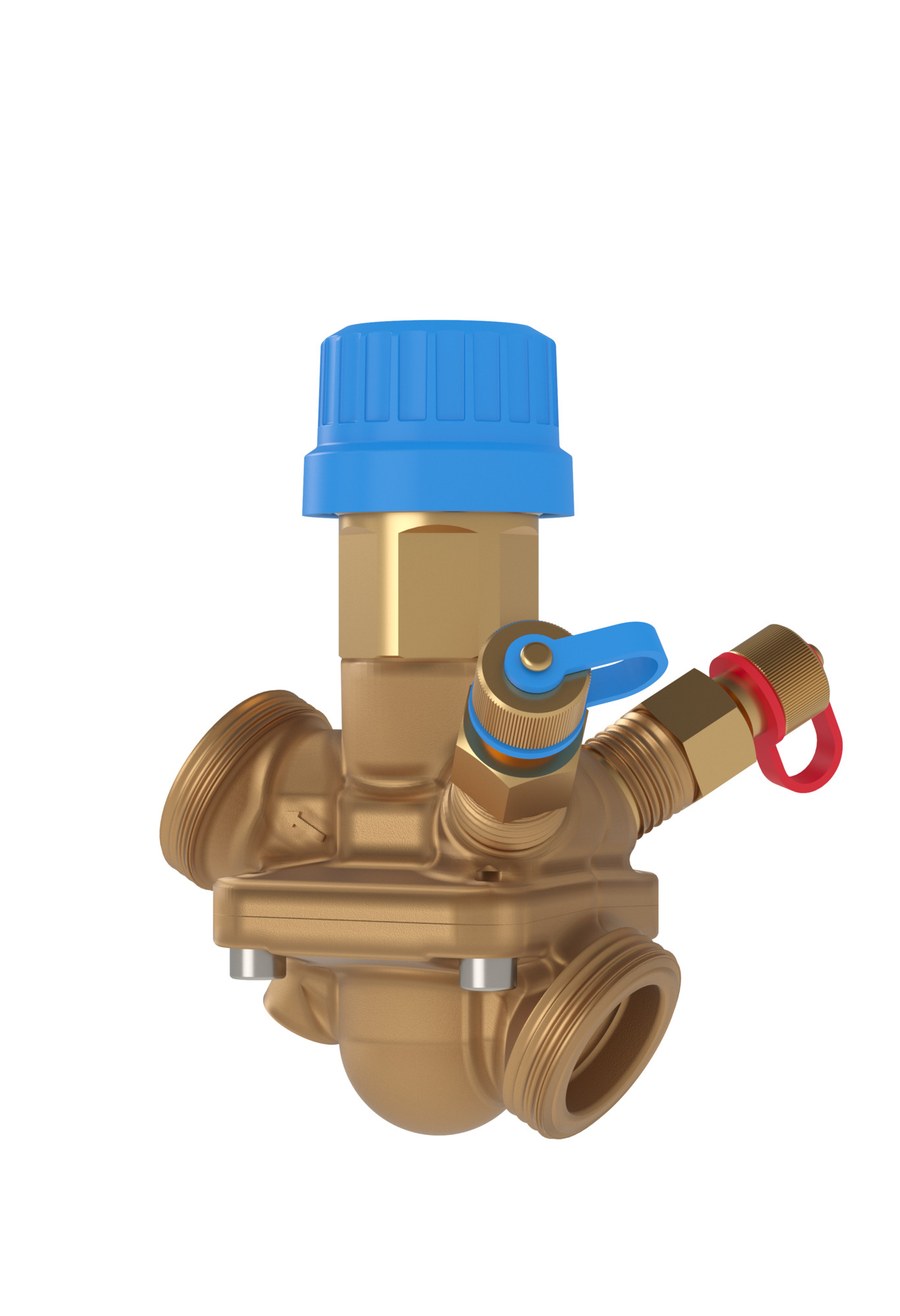

Danfoss AB-QM DN 32 standard-flow pressure-independent balancing & control valve, with test plugs

Danfoss AB-QM DN 32 — pressure-independent balancing and control valve (PICV) for the terminal branches of heating and cooling systems. A built-in differential-pressure controller keeps the flow through the settable orifice constant regardless of pressure fluctuations elsewhere in the network, so each terminal delivers its design flow without manual re-balancing; the presetting dial fixes the maximum flow (20 %-100 % of nominal) and the valve also acts as a shut-off. DZR brass CuZn36Pb2AS (CW 602N) body, External thread ISO 228/1 G 1 ½A connection, AB-QM 3.0, PN 16, nominal flow 3.2 m³/h, control differential pressure 25 KPa to 600 KPa, seat leakage Class III with the recommended actuator, media temperature -10 °C to 120 °C. Supplied with pressure test plugs for flow verification. Actuator connection M30 x 1.5. OEM P/N 003Z1215. EAN 5710104029962. Technical data quoted verbatim from store.danfoss.com (code 003Z1215).

Code number

003Z1215

Type

AB-QM

Version

AB-QM 3.0

Product group

Pressure independent balancing and control valves

Description

AB-QM DN 32, with test plugs, pressure independent balancing and control valve

Valve size

DN 32

Valve body material

DZR brass CuZn36Pb2AS (CW 602N)

Connection types

External thread ISO 228/1 G 1 ½A

Actuator connection

M30 x 1.5

Test plugs

With test plugs

Flow limitation

Yes

Flow nominal [m³/h]

3.2 m³/h

Setting scale

Yes

Setting range [%] [min]

20 %

Setting range [%] [max]

100 %

Stroke [mm]

4.5 mm

Shut-off function

Yes

Shut-off leakage rate (ISO 5208)

Rate A

Leakage rate with recommended actuator (IEC 60534-4)

Class III

Mounting position

Supply / return pipe

Pressure class

PN 16

Differential pressure [kPa] [Min]

25 KPa

Differential pressure [kPa] [Max]

600 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Storage and Transport temperature [°C] [Min]

-40 °C

Storage and Transport temperature [°C] [Max]

70 °C

Contains batteries

No

EPD available

Yes

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

2a8fd55f-ecba-4d14-b3c7-868fb34c0079

SCIP dossier product name

AB-QM DN32 with measuring nipples

Net weight

2.298 Kilogram

Gross weight

2.316 Kilogram

Volume

2.668 Liter

EAN

5710104029962

Material

Valve body DZR brass CuZn36Pb2AS (CW 602N)

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
