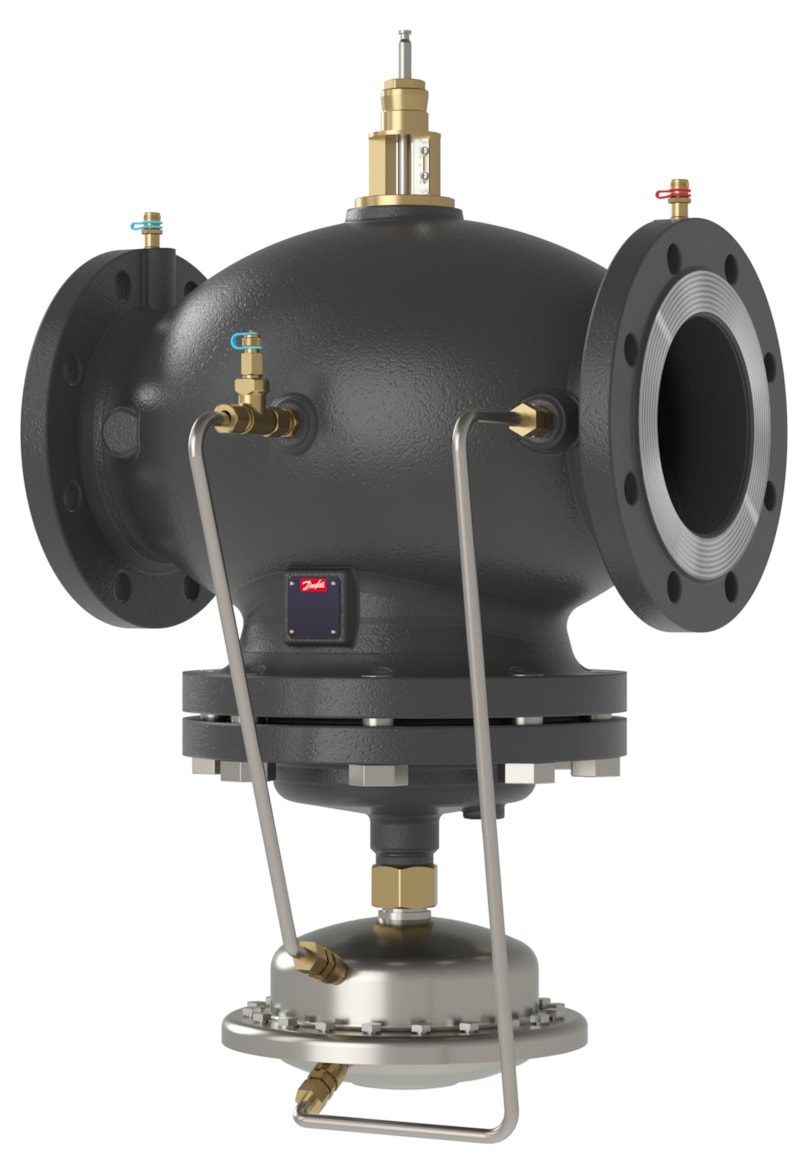

Danfoss AB-QM DN 150 high-flow pressure-independent balancing & control valve flange (003Z0716)

Danfoss AB-QM DN 150 (high-flow) — pressure-independent balancing and control valve (PICV) for a flange connection. A single AB-QM valve combines three functions in one body: an automatic flow limiter that holds the set flow constant regardless of pressure fluctuations elsewhere in the system, a control valve (operated by a Danfoss thermal or modulating actuator on the Danfoss standard connection), and a manual shut-off. Presetting fixes the maximum flow so the branch is inherently balanced — no manual balancing valve or commissioning flow-measurement is required. Grey iron (EN-GJL-250) body, PN 16, 190 m³/h nominal flow, up to 600 KPa max differential, stroke 30 mm, media temperature -10 °C to 120 °C, supplied with test plugs. OEM P/N 003Z0716. EAN 5702425082122. Technical data quoted verbatim from store.danfoss.com (code 003Z0716).

Code number

003Z0716

Type

AB-QM

Version

AB-QM

Product group

Pressure independent balancing and control valves

Description

AB-QM DN 150 High flow, with three test plugs, pressure independent balancing and control valve

Valve size

DN 150High flow

Valve body material

Grey iron (EN-GJL-250)

Connection types

Flange

Actuator connection

Danfoss standard

Test plugs

With test plugs

Pressure class

PN 16

Flow nominal [m³/h]

190 m³/h

Stroke [mm]

30 mm

Differential pressure [kPa] [Max]

600 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

174 Kilogram

Gross weight

174.2 Kilogram

Volume

657.6 Liter

EAN

5702425082122

SCIP dossier no.

b01c3cca-8324-4bda-8070-982597d4a155

SCIP dossier product name

AB-QM DN65-150

Material

Valve body Grey iron (EN-GJL-250)

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
