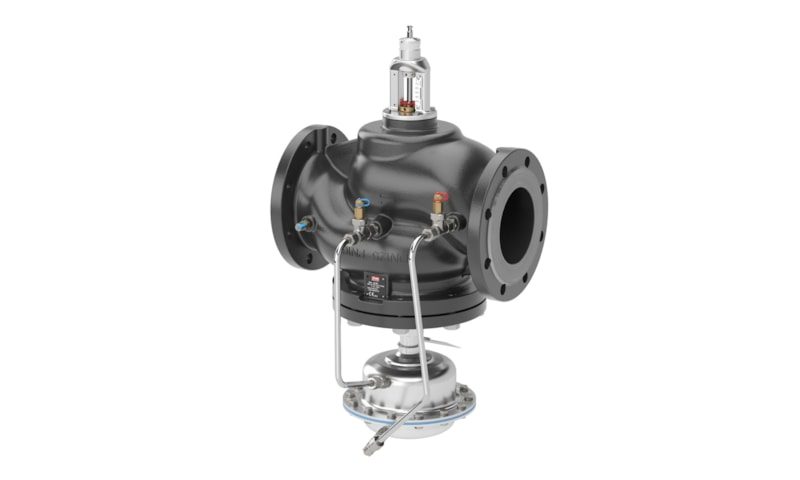

Danfoss AB-QM DN 125 pressure-independent balancing & control valve flange (003Z0725)

Danfoss AB-QM DN 125 — pressure-independent balancing and control valve (PICV) for a flange connection. A single AB-QM valve combines three functions in one body: an automatic flow limiter that holds the set flow constant regardless of pressure fluctuations elsewhere in the system, a control valve (operated by a Danfoss thermal or modulating actuator on the Danfoss standard connection), and a manual shut-off. Presetting fixes the maximum flow so the branch is inherently balanced — no manual balancing valve or commissioning flow-measurement is required. Grey cast iron EN-GJL-250 (GG-25) body, PN 16, 115 m³/h nominal flow, 40 KPa to 800 KPa control differential, stroke 28 mm, media temperature -10 °C to 120 °C, supplied with test plugs. OEM P/N 003Z0725. EAN 5715255153856. Technical data quoted verbatim from store.danfoss.com (code 003Z0725).

Code number

003Z0725

Type

AB-QM

Version

AB-QM

Product group

Pressure independent balancing and control valves

Description

AB-QM DN 125, with three test plugs, pressure independent balancing and control valve

Valve size

DN 125

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Connection types

Flange (EN 1092-2)PN16

Actuator connection

Danfoss standard

Test plugs

With test plugs

Pressure class

PN 16

Flow nominal [m³/h]

115 m³/h

Flow limitation

Yes

Setting range [%] [min]

40 %

Setting range [%] [max]

100 %

Setting scale

Yes

Stroke [mm]

28 mm

Differential pressure [kPa] [Min]

40 KPa

Differential pressure [kPa] [Max]

800 KPa

Leakage rate with recommended actuator (IEC 60534-4)

Class IV

Shut-off function

Yes

Shut-off leakage rate (ISO 5208)

Rate A

Mounting position

Supply / return pipe

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Storage and Transport temperature [°C] [Min]

-40 °C

Storage and Transport temperature [°C] [Max]

70 °C

CE mark

Yes

UL mark

No

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

85.6 Kilogram

Gross weight

111.5 Kilogram

Volume

633.6 Liter

EAN

5715255153856

In scope of WEEE

No

SCIP dossier no.

659b804b-09ce-4df9-9060-9b0f99989269

SCIP dossier product name

AB-QM PN16 DN125-250 NF-HF

Material

Valve body Grey cast iron EN-GJL-250 (GG-25)

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
