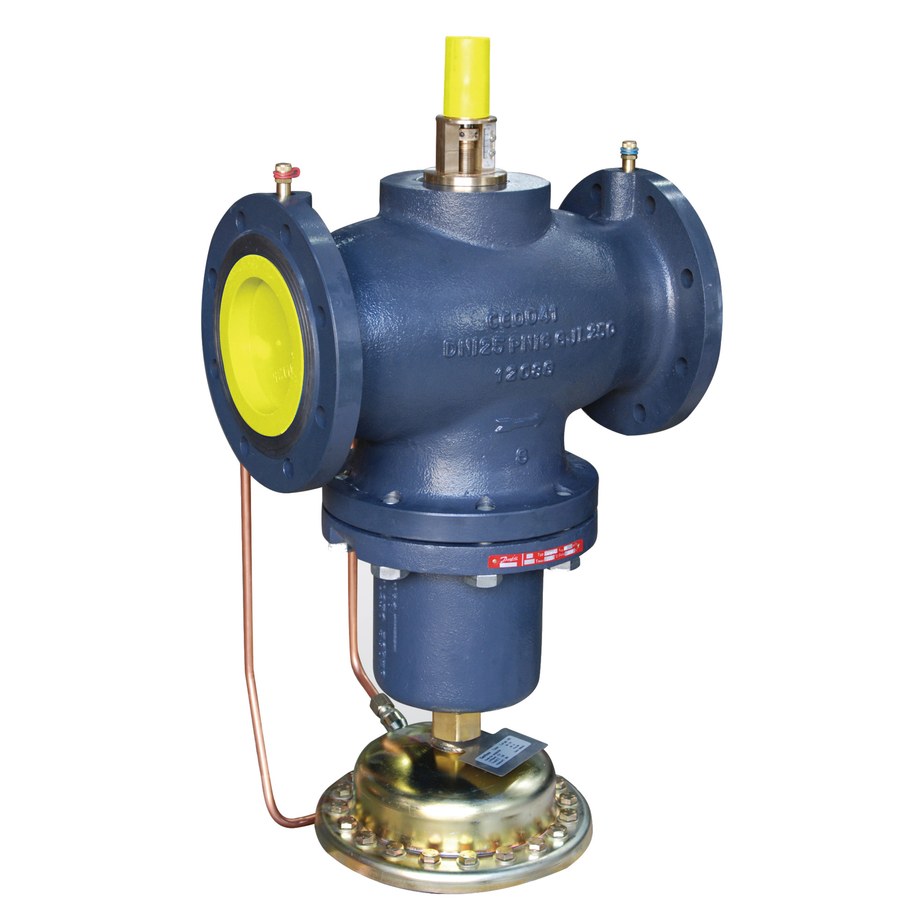

Danfoss AB-QM DN 125 HF high-flow pressure-independent balancing & control valve, flanged (EN 1092-2), PN 16

Danfoss AB-QM DN 125 HF (003Z1715) — pressure-independent balancing and control valve (PICV) for heating and cooling distribution. The integral differential-pressure controller holds the flow through the settable orifice constant regardless of pressure fluctuations in the network, combining automatic balancing, flow limitation and modulating control in one valve. Connection Flange (EN 1092-2). Valve body W.Nr.1.4027. PN 16, nominal flow 110 m³/h, media temperature -10 °C to 120 °C (media). Supplied with test plugs. OEM designation "AB-QM, DN 125 HF, flange connection, PN16, pressure independent balancing and control valve". OEM P/N 003Z1715. Contains lead per the REACH candidate list. Technical data quoted verbatim from store.danfoss.com (code 003Z1715). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

003Z1715

Type

AB-QM

Version

AB-QM

Product group

Pressure independent balancing and control valves

Description

AB-QM, DN 125 HF, flange connection, PN16, pressure independent balancing and control valve

Valve body material

W.Nr.1.4027

Actuator connection

Danfoss standard

Test plugs

Yes

Flow limitation

Yes

Flow nominal [m³/h]

110 m³/h

Setting scale

Yes

Setting range [%] [min]

40 %

Setting range [%] [max]

110 %

Stroke [mm]

30 mm

Leakage rate with recommended actuator (IEC 60534-4)

Class IV

Pressure class

PN 16

Differential pressure [kPa] [Min]

60 KPa

Differential pressure [kPa] [Max]

600 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Storage and Transport temperature [°C] [Min]

-40 °C

Storage and Transport temperature [°C] [Max]

70 °C

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

b01c3cca-8324-4bda-8070-982597d4a155

SCIP dossier product name

AB-QM DN65-150

Net weight

116 Kilogram

Gross weight

118 Kilogram

Volume

652.8 Liter

EAN

5710104524160

Material

W.Nr.1.4027

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
