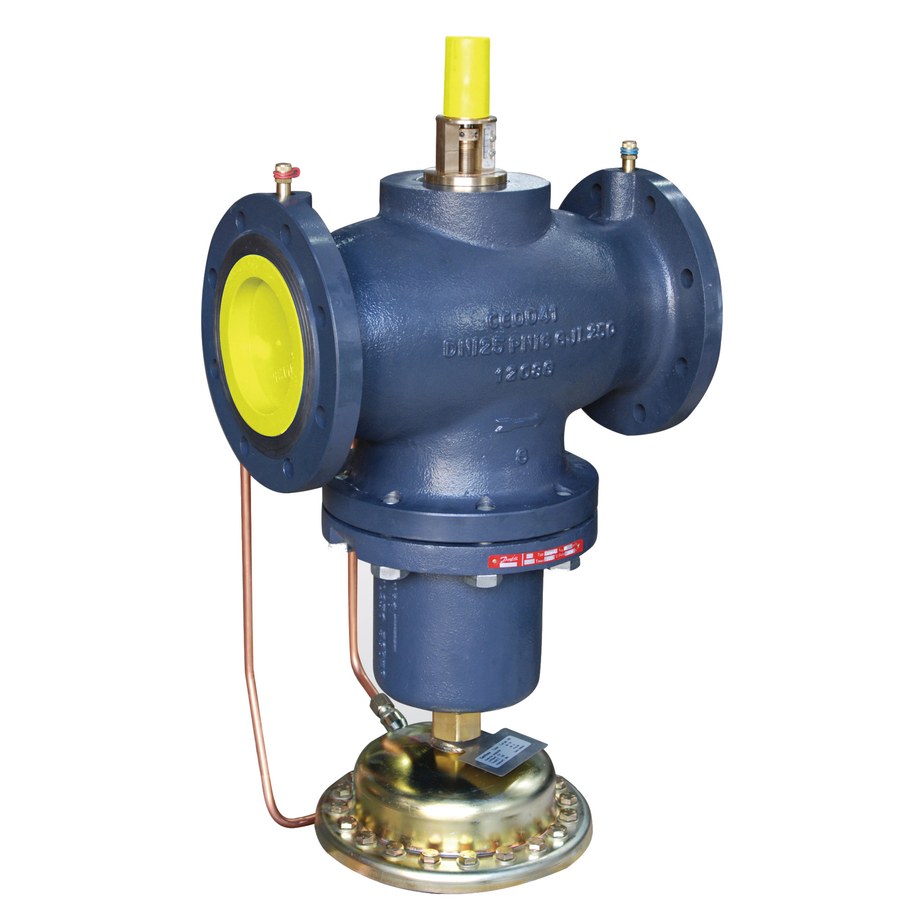

Danfoss AB-QM DN 250 HF high-flow pressure-independent balancing & control valve, flanged (EN 1092-2), PN 16

Danfoss AB-QM DN 250 HF (003Z1718) — pressure-independent balancing and control valve (PICV) for heating and cooling distribution. The integral differential-pressure controller holds the flow through the settable orifice constant regardless of pressure fluctuations in the network, combining automatic balancing, flow limitation and modulating control in one valve. Connection Flange (EN 1092-2). Valve body W.Nr.1.4027. PN 16, nominal flow 370 m³/h, media temperature -10 °C to 120 °C (media). Supplied with test plugs. OEM designation "AB-QM, DN 250 HF, flange connection, PN16, pressure independent balancing and control valve". OEM P/N 003Z1718. Technical data quoted verbatim from store.danfoss.com (code 003Z1718). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

003Z1718

Type

AB-QM

Version

AB-QM

Product group

Pressure independent balancing and control valves

Description

AB-QM, DN 250 HF, flange connection, PN16, pressure independent balancing and control valve

Valve body material

W.Nr.1.4027

Actuator connection

Danfoss standard

Test plugs

Yes

Flow limitation

Yes

Flow nominal [m³/h]

370 m³/h

Setting scale

Yes

Setting range [%] [min]

40 %

Setting range [%] [max]

110 %

Stroke [mm]

30 mm

Leakage rate with recommended actuator (IEC 60534-4)

Class IV

Pressure class

PN 16

Differential pressure [kPa] [Min]

60 KPa

Differential pressure [kPa] [Max]

600 KPa

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Storage and Transport temperature [°C] [Min]

-40 °C

Storage and Transport temperature [°C] [Max]

70 °C

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Yes with exemptions

China RoHS exemption clause

7.3

Net weight

378 Kilogram

Gross weight

378 Kilogram

Volume

700.8 Liter

EAN

5710104524191

Material

W.Nr.1.4027

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
