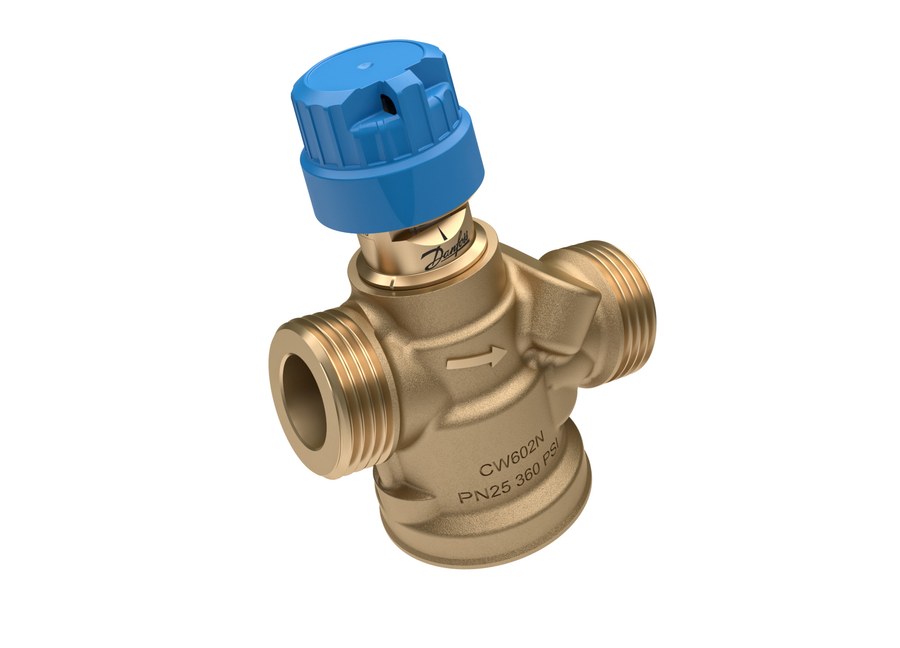

Danfoss AB-QM 4.0 DN 15 LF (low flow) pressure-independent balancing & control valve, without test plugs, external thread

Danfoss AB-QM 4.0 pressure-independent balancing and control valve (PICV). AB-QM DN 15 Low flow, without test plugs, External thread, PN25, pressure independent balancing and control valve. Combines automatic flow limitation and differential-pressure control in one DN 15 body; nominal flow 0.2 m³/h, PN 25, DZR Brass (CW 602N) body. Setting range 10 %–100 %, actuator connection M30 x 1.5; driven by a separate Danfoss electric or thermal actuator. OEM P/N 003Z8220. EAN 5714279038996. Technical data quoted verbatim from store.danfoss.com (code 003Z8220).

Code number

003Z8220

Type

AB-QM

Product group

Pressure independent balancing and control valves

Version

AB-QM 4.0

Description

AB-QM DN 15 Low flow, without test plugs, External thread, PN25, pressure independent balancing and control valve

Valve size

Low flowDN 15 LF

Connection types

External thread ISO 228/1G ¾A

Actuator connection

M30 x 1.5

Pressure class

PN 25

Flow nominal [m³/h]

0.2 m³/h

Flow limitation

Yes

Differential pressure [kPa] [Min]

16 KPa

Differential pressure [kPa] [Max]

600 KPa

Setting range [%] [min]

10 %

Setting range [%] [max]

100 %

Setting scale

Yes

Stroke [mm]

4 mm

Shut-off function

Yes

Shut-off leakage rate (ISO 5208)

Rate A

Leakage rate with recommended actuator (IEC 60534-4)

Class IV

Valve body material

DZR Brass (CW 602N)

Test plugs

Without test plugs

Mounting position

Supply / return pipe

Media temperature [°C] [Min]

-20 °C

Media temperature [°C] [Max]

95 °C

Storage and Transport temperature [°C] [Min]

-40 °C

Storage and Transport temperature [°C] [Max]

70 °C

Contains batteries

No

Gross weight

0.56 Kilogram

Net weight

0.496 Kilogram

Volume

0.942 Liter

EAN

5714279038996

Material

DZR Brass (CW 602N)

Pressure Rating

PN 25

Temperature Range

-20 to 95 °C

HS Code

8481.80
