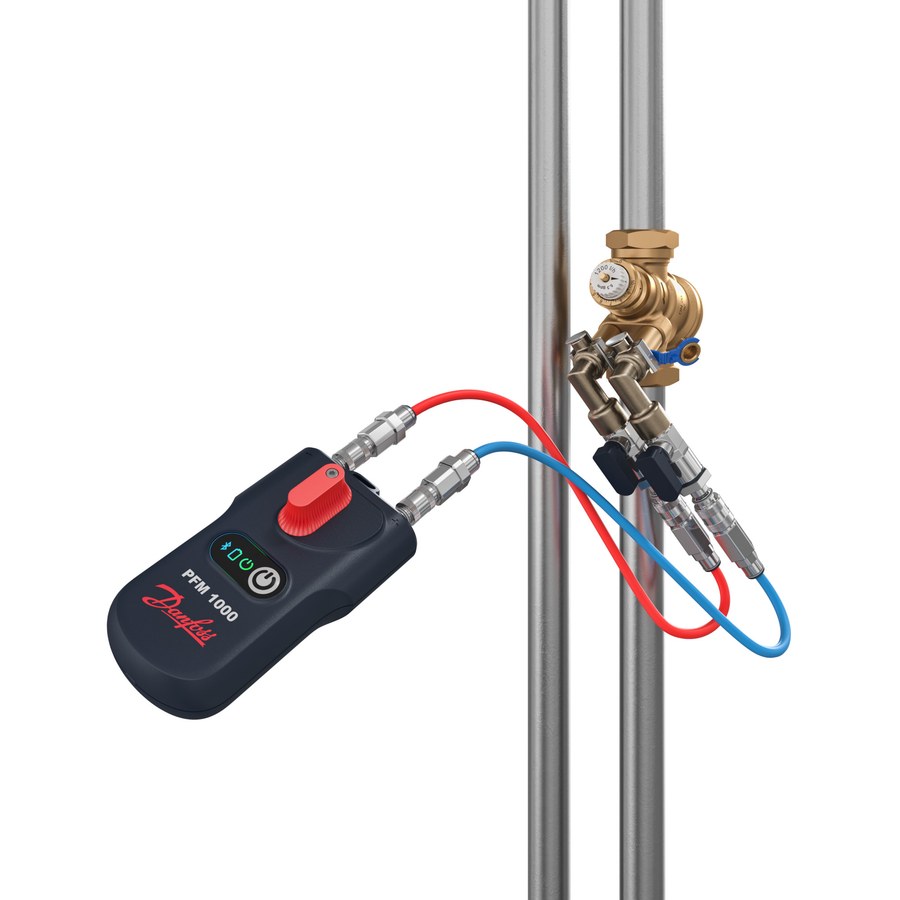

Danfoss PFM 1000 balancing measurement instrument, 10 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss PFM 1000 portable measuring instrument for balancing cooling, heating and domestic hot-water systems. PFM 1000, 10 bar, measuring instrument for balancing cooling, heating and domestic hot water systems. Reads differential pressure and flow on Danfoss AB-QM and manual balancing valves via the test plugs; IP65, media temperature -5 to 90 °C, pressure rating 10 bar. OEM P/N 003Z8260. EAN 5702428581141. Technical data quoted verbatim from store.danfoss.com (code 003Z8260).
Technical Specifications
- Code number
- 003Z8260
- Type
- PFM 1000
- Product group
- Manual balancing
- Description
- PFM 1000, 10 bar, measuring instrument for balancing cooling, heating and domestic hot water systems.
- Media temperature [°C] [Min]
- -5 °C
- Media temperature [°C] [Max]
- 90 °C
- IP protection class
- IP65
- Pressure [bar]
- 10 bar
- Contains batteries
- No
- Gross weight
- 2.554 Kilogram
- Net weight
- 2.5 Kilogram
- Volume
- 11.52 Liter
- EAN
- 5702428581141
- China RoHS compliance
- Out of scope
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Label product
- Yes
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
Standards & Compliance
- Pressure Rating
- 10 bar
- Temperature Range
- -5 to 90 °C
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
Danfoss PFM 1000 balancing instrument for use with Danfoss AB-QM PICV and manual balancing valves fitted with measuring test plugs. Confirm the pressure rating (10 bar) matches the system before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss PFM 1000 balancing measurement instrument, 20 bar
003Z8261
Danfoss
Danfoss Set of the hoses PFM 1000 (red&blue)
003Z8262
Danfoss
Danfoss Set of the filters PFM 1000 (2 pcs.)
003Z8263
Danfoss
Danfoss Set of the needles with ball valve PFM 1000 (2 pcs.)
003Z8264
Danfoss
Danfoss Adapter R21 (2 pcs., rectus type)
003Z8267
Danfoss

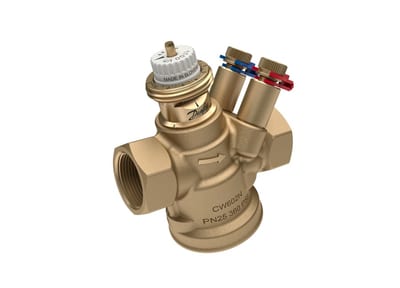

Danfoss AB-QM 4.0 DN 15 LF (low flow) pressure-independent balancing & control valve, with test plugs, internal thread (Rp)
