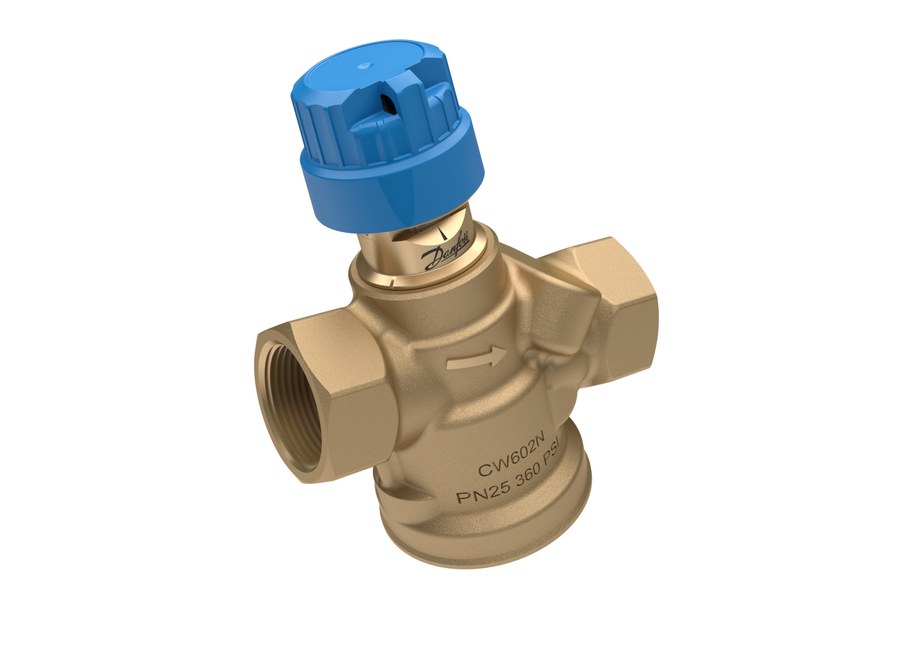

Danfoss AB-QM 4.0 DN 15 HF (high flow) pressure-independent balancing & control valve, without test plugs, internal thread (Rp)

Danfoss AB-QM 4.0 pressure-independent balancing and control valve (PICV). AB-QM DN 15 High flow, without test plugs, Internal thread, PN25, pressure independent balancing and control valve. Combines automatic flow limitation and differential-pressure control in one DN 15 body; nominal flow 1.2 m³/h, PN 25, DZR Brass (CW 602N) body. Setting range 10 %–100 %, actuator connection M30 x 1.5; driven by a separate Danfoss electric or thermal actuator. OEM P/N 003Z8322. EAN 5714279039986. Technical data quoted verbatim from store.danfoss.com (code 003Z8322).

Code number

003Z8322

Type

AB-QM

Product group

Pressure independent balancing and control valves

Version

AB-QM 4.0

Description

AB-QM DN 15 High flow, without test plugs, Internal thread, PN25, pressure independent balancing and control valve

Valve size

High flowDN 15 HF

Connection types

Internal thread ISO 7/1Rp ½

Actuator connection

M30 x 1.5

Pressure class

PN 25

Flow nominal [m³/h]

1.2 m³/h

Flow limitation

Yes

Differential pressure [kPa] [Min]

25 KPa

Differential pressure [kPa] [Max]

600 KPa

Setting range [%] [min]

10 %

Setting range [%] [max]

100 %

Setting scale

Yes

Stroke [mm]

4 mm

Shut-off function

Yes

Shut-off leakage rate (ISO 5208)

Rate A

Leakage rate with recommended actuator (IEC 60534-4)

Class IV

Valve body material

DZR Brass (CW 602N)

Test plugs

Without test plugs

Mounting position

Supply / return pipe

Media temperature [°C] [Min]

-20 °C

Media temperature [°C] [Max]

95 °C

Storage and Transport temperature [°C] [Min]

-40 °C

Storage and Transport temperature [°C] [Max]

70 °C

Contains batteries

No

Gross weight

0.558 Kilogram

Net weight

0.503 Kilogram

Volume

0.968 Liter

EAN

5714279039986

Material

DZR Brass (CW 602N)

Pressure Rating

PN 25

Temperature Range

-20 to 95 °C

HS Code

8481.80
