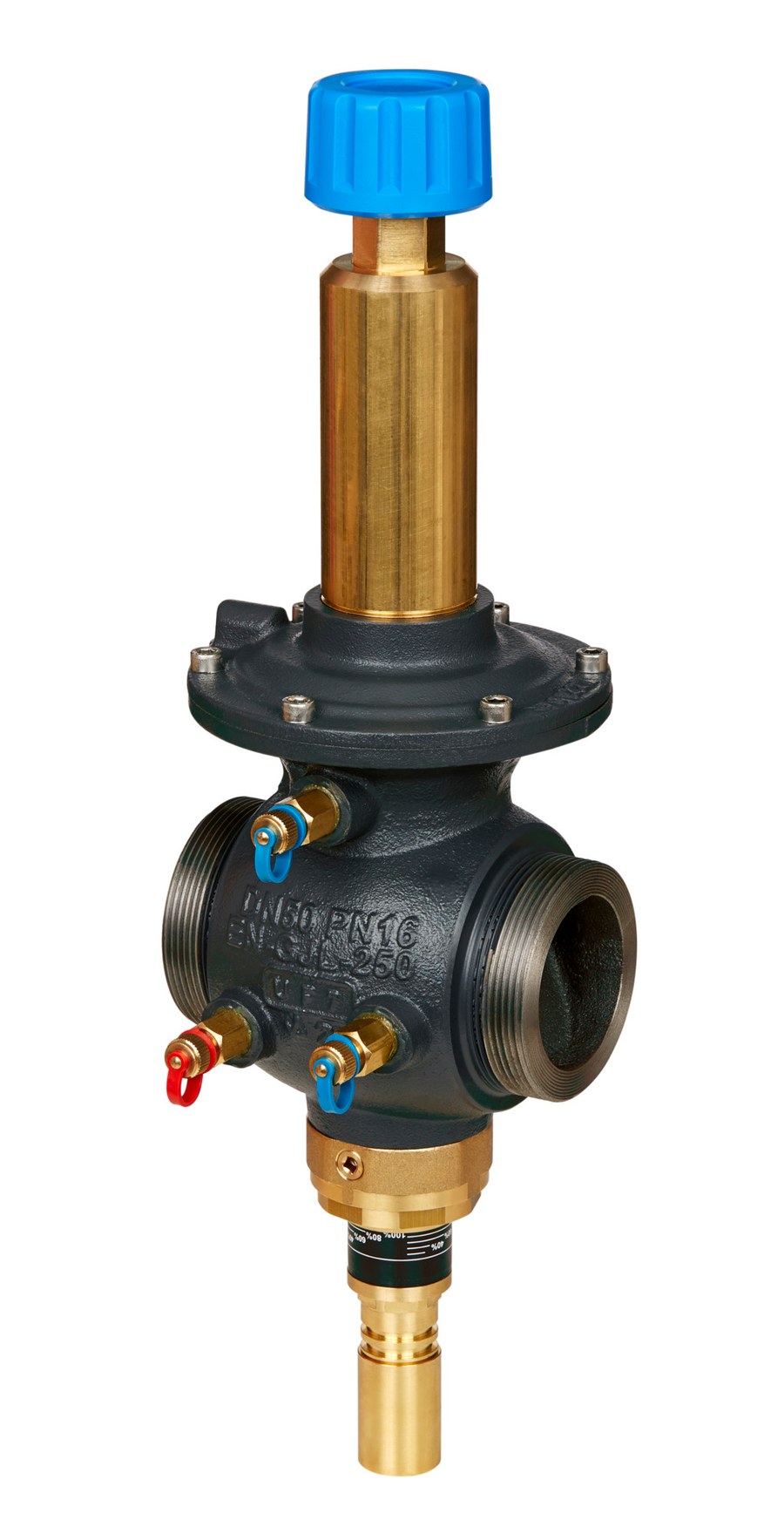

Danfoss AB-PM DN 40 differential pressure controller & flow limiter, Standard, flange

Danfoss AB-PM DN 40 — combined automatic balancing valve and differential-pressure controller (standard version) for hydronic heating and cooling systems. The AB-PM integrates four functions in one flanged body: a differential-pressure controller that holds a constant Δp across the connected terminal or riser, an automatic flow limiter (presetting caps the maximum flow), a modulating control-valve seat driven by a Danfoss actuator on the Danfoss standard connection, and a manual shut-off. Because the valve keeps the differential pressure stable, connected control valves retain their full authority and the branch stays balanced across all load conditions without manual re-commissioning. Grey cast iron EN-GJL-250 (GG-25) body, PN 16, differential-pressure range 42 KPa to 4000 KPa, maximum controllable flow 5.0 m³/h at Δp=25 kPa, stroke 10 mm, media temperature -10 °C to 120 °C, mounted in the return pipe. Connection: Flange (EN 1092-2)G 2A. OEM P/N 003Z1435. Technical data quoted verbatim from store.danfoss.com (code 003Z1435). Used in commercial refrigeration, provision-room cooling and reefer plant rooms across HFC, HFO and CO2 (R744) refrigerants.

Code number

003Z1435

Type

AB-PM

Product group

Automatic balancing

Description

AB-PM DN 40, combined automatic balancing valve

Valve size

DN 40

Pressure version

Standard

Connection types

Flange (EN 1092-2)G 2A

Actuator connection

Danfoss standard

CV stroke

10

Differential pressure [kPa] [Min]

42 KPa

Differential pressure [kPa] [Max]

4000 KPa

Flow max at Δp [m3/h]

5.0 m³/h at Δp=25 kPa

Impulse tube length [m]

2.5 m

Mounting position

Return pipe

Pressure class

PN 16

Valve body material

Grey cast iron EN-GJL-250 (GG-25)

Shut-off leakage rate (ISO 5208)

Rate A

Media temperature [°C] [Min]

-10 °C

Media temperature [°C] [Max]

120 °C

Contains batteries

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

China RoHS compliance

Out of scope

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Net weight

6.834 Kilogram

Gross weight

7.905 Kilogram

Volume

18.073 Liter

EAN

5710104095493

Material

Valve body Grey cast iron EN-GJL-250 (GG-25)

Pressure Rating

PN 16

Temperature Range

-10 °C to 120 °C (media)

Classification / Approval

CE

HS Code

8481.80
