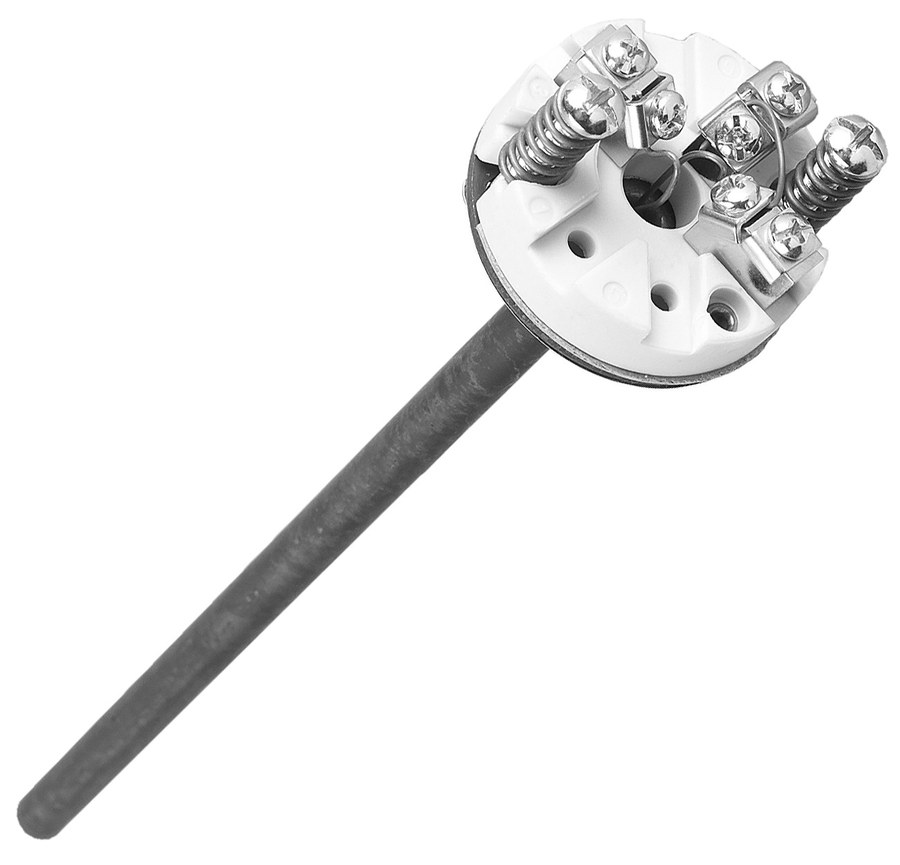

Danfoss MBT 156 temperature sensor insert, Pt 100, 200 mm insertion, Type B terminal-block head
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 156 replaceable temperature-sensor insert, code 084Z4317 (type designation MBT 156-B01-200-0-0000). The insert carries the Pt 100 platinum measuring element (100 ohm at 0 °C, Class B per EN 60751/IEC 60751) and is the field-replaceable measuring core of the MBT 5116 high-temperature sensor — it is exchanged in service without removing the sensor pocket/thermowell from the process. Insertion length 200 mm; 8 mm protection-tube diameter; Type B terminal block, 3 terminals connection. Measuring range -50 to +600 °C. Net weight 0.131 kg / gross 0.134 kg; supplied multi pack, 9 pc. EAN 5702423153220. OEM P/N 084Z4317.
Technical Specifications
- Type
- Danfoss MBT 156 temperature sensor insert
- Type designation
- MBT 156-B01-200-0-0000
- Code number
- 084Z4317
- Product group
- Accessories, sensors (replaceable measuring insert)
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 °C)
- Element standard
- EN 60751 (IEC 60751)
- Tolerance class
- Class B
- Measuring range
- -50 to +600 °C
- Insertion length
- 200 mm
- Protection tube diameter
- 8 mm
- Connection
- Type B terminal block, 3 terminals
- Fits
- MBT 5116 high-temperature sensor
- Packing format
- Multi pack
- Quantity per pack
- 9 pc
- Net weight
- 0.131 kg
- Gross weight
- 0.134 kg
- Approvals
- CE
- EU RoHS
- Yes (with exemption 6(c))
- Lifecycle status
- Current
- EAN
- 5702423153220
Standards & Compliance
- Standard
- EN 60751
- Size / Series
- 200 mm insertion
- Material
- AISI stainless-steel protection tube, Pt100 platinum element
- Temperature Range
- -50 to +600 °C
- Classification / Approval
- CE
- HS Code
- 9025.90
Compatibility & Fitment
Replaceable measuring insert for the MBT 5116 high-temperature sensor. Confirm the insertion length (200 mm) and head build (B01) match the installed sensor/pocket before ordering.
Product Documentation
More from Danfoss
Danfoss

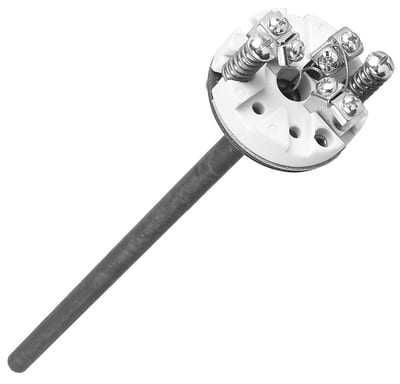

Danfoss MBT 156 temperature sensor insert, Pt 100, 250 mm insertion, Type B terminal-block head
