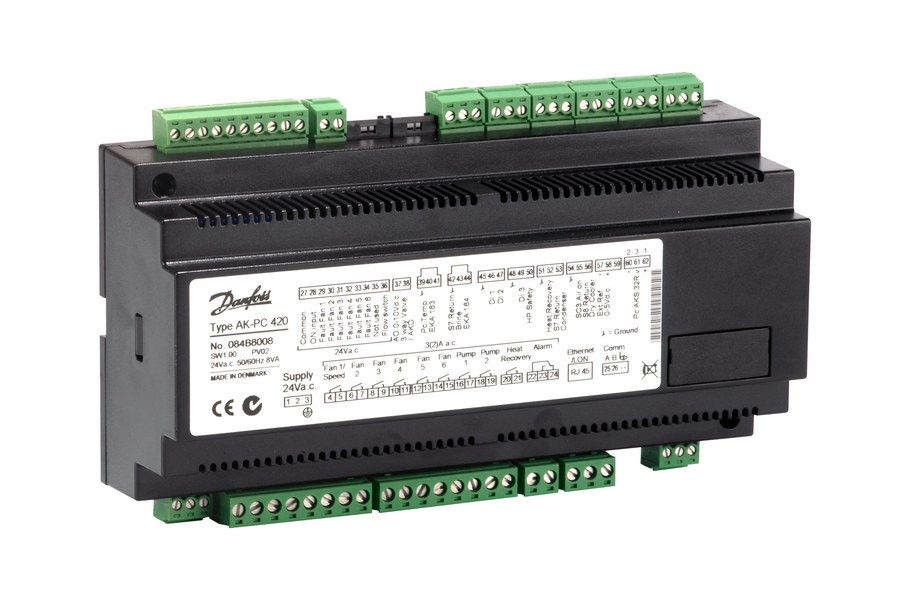

Danfoss AK-PC 420 dry cooler controller
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AK-PC 420 electronic dry-cooler / condenser controller. 24 V AC 50/60 Hz supply, step/speed fan capacity control with P/PI mode for up to 6 fans and 30 I/O connectors. Pressure or temperature condenser control with floating condenser pressure, heat-recovery, pump and three-way-valve control; optional LON or Modbus data communication. EAN 5702428136105.
Technical Specifications
- Model
- AK-PC 420
- Type
- Dry cooler controller
- Supply
- 24 V AC 50/60 Hz
- Power
- 8 VA
- Fan control
- Step/Speed, P/PI
- Fans
- max 6 pc
- I/O connectors
- max 30 pc
- Alarm inputs
- max 3 pc
- Condenser control
- Pressure / Temperature
- Comms
- LON / Modbus (optional)
- Display
- EKA 163B / EKA 164B
- Approvals
- CE, C-TICK, EAC
- EAN
- 5702428136105
- MPN
- 084B8008
- Net weight
- 0.44 Kilogram
- Product group
- Compressor/condenser control
- Additional alarm inputs max.
- 3 pc
- Application area
- Capacity control
- Approval
- C-TICK
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Communication type
- Optional LON
- Condenser control type
- Pressure/ Temperature
- Controller type
- Condensing Controller
- Display - option
- EKA 163B
- Display on front
- No
- Fan capacity control
- Step/ Speed
- Fan control mode
- P/PI
- Frequency [Hz]
- 50/60 Hz
- Function
- Cap.Reg. Dry Cooler
- I/O connectors max.
- 30 pc
- Number of fans max.
- 6 pc
- Other RoHS documentation
- EAEU RoHS
- Power consumption [VA]
- 8 VA
- Product features
- Condenser error monitoring
- REACH Candidate List substances
- No
- Supply voltage [V] AC
- 24 V
Standards & Compliance
- Classification / Approval
- CE, C-TICK, EAC
- HS Code
- 9032.89
Compatibility & Fitment
Verify condenser control mode (pressure/temperature) and fan count against your system.
