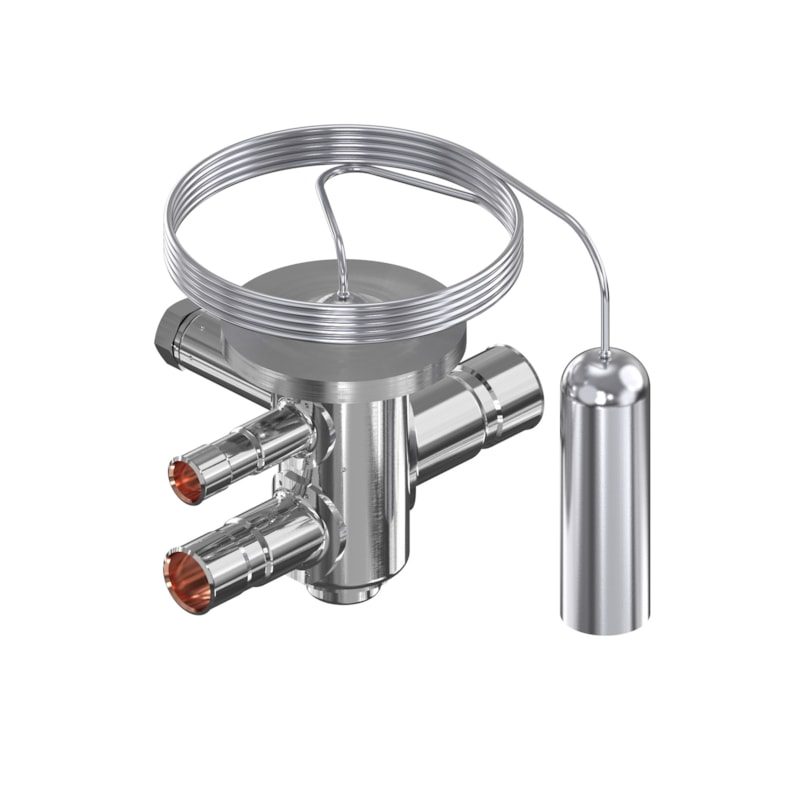

Danfoss TUBE thermostatic expansion valve, R410A, 3/8 in x 1/2 in solder ODF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TUBE universal thermostatic expansion valve, OEM P/N 068U3860. Externally equalized (1/4 in equalizer, Solder ODF). Stainless-steel body and capillary (fixed orifice, adjustable superheat). Refrigerant R410A. Orifice assembly size 9. Nominal capacity 26 kW (7.5 TR) at the standard rating condition. Evaporating temperature range -30 to 15 °C. Inlet 3/8 in, outlet 1/2 in, solder ODF. Static superheat 5 °C (adjustable). Max working pressure 45.5 bar (660 psig). Hermetic laser-welded design per EU F-gas Regulation 517/2014. EAN 5702428048149.
Technical Specifications
- Brand
- Danfoss
- Part number
- 068U3860
- Type
- TUBE (fixed orifice, adjustable superheat, externally equalized)
- Category
- Expansion valves — thermostatic
- Refrigerant
- R410A
- Nominal capacity
- 26 kW (7.5 TR)
- Pressure equalization
- Externally equalized (1/4 in equalizer, Solder ODF)
- Orifice size
- 9
- Inlet connection
- 3/8 in, Solder ODF
- Outlet connection
- 1/2 in, Solder ODF
- Static superheat
- 5 °C, adjustable
- Evaporating temperature range
- -30 to 15 °C
- Max working pressure
- 45.5 bar (660 psig)
- Body material
- Stainless steel
- EAN
- 5702428048149
- Approvals
- EAC
- Net weight
- 0.155 Kilogram
- Product group
- Expansion valves
- Approval
- EAC
- Capillary tube length [in]
- 31 in
- Capillary tube length [mm]
- 800 mm
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection material
- Bi-metal: Steel/copper
- Direction
- Straightway
- Equalization connection type
- Solder, ODF
- Equalization size [in]
- 1/4 in
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Single-flow
- Flow direction indicator
- Laser engraved 1-way arrow
- Fluid Group
- 2
- Inlet connection type
- Solder, ODF
- Inlet size [in]
- 3/8 in
- Max. Working Pressure [bar]
- 45.5 bar
- Max. Working Pressure [psig]
- 660 psig
- Orifice capacities [kW]
- 26 kW
- Orifice capacities [TR]
- 7.5 TR
- Outlet connection type
- Solder, ODF
- Outlet size [in]
- 1/2 in
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- Rated cap. cond. Range N [IMP]
- OS=7.2 ºF
- Rated cap. cond. Range N [SI]
- OS=4K
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R410A
- Seal
- No
- Static Superheat (SS) [°C]
- 5 °C
- Static Superheat (SS) [°F]
- 9 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- 15 °C
- Temperature range [°C] [min]
- -30 °C
- Temperature range [°F] [max]
- 59 °F
- Temperature range [°F] [min]
- -22 °F
Standards & Compliance
- Size / Series
- 3/8 in x 1/2 in
- Material
- Stainless steel
- Pressure Rating
- 45.5 bar (660 psig) max working pressure
- Temperature Range
- -30 to 15 °C (evaporating)
- Classification / Approval
- EAC
- HS Code
- 8481.80
Compatibility & Fitment
Rated for R410A. Select capacity to the evaporator load and rating condition per the TU/TC data sheet before ordering.
