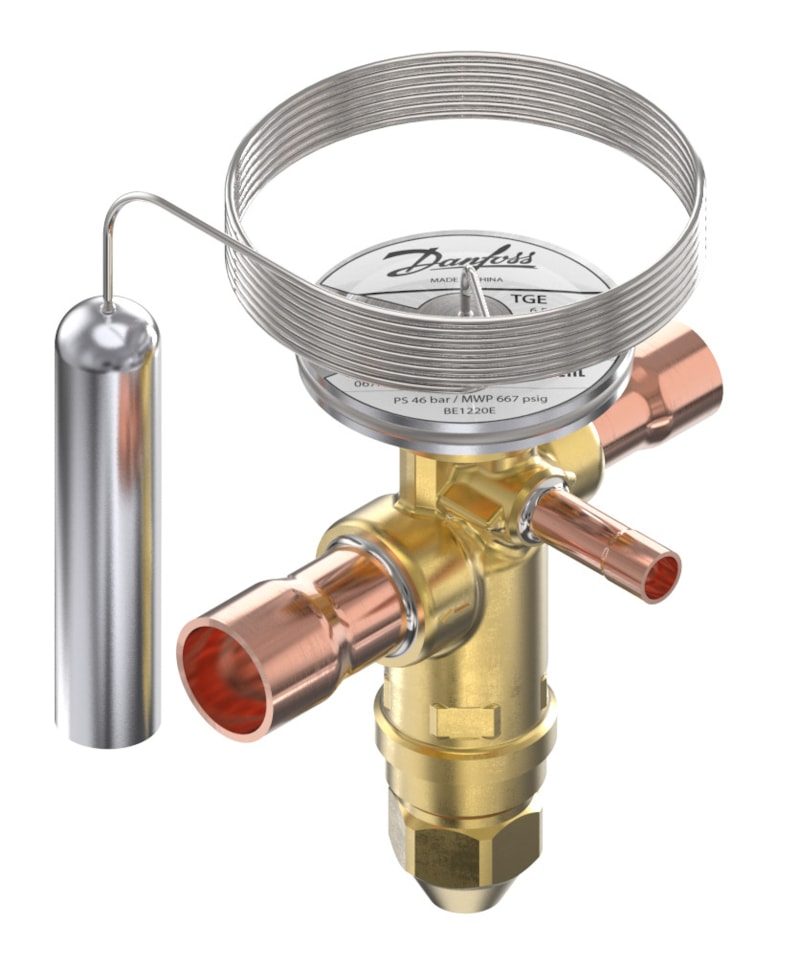

Danfoss 067N2001 TGE thermostatic expansion valve, R22/R407C, 1/2 in x 5/8 in solder ODF
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TGE thermostatic expansion valve, OEM P/N 067N2001. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R22/R407C. Orifice assembly size 3. Nominal capacity 10 kW (3 TR) at the standard rating condition. Evaporating temperature range -25 to 10 °C. Inlet 1/2 in, outlet 5/8 in, external equalizer 1/4 in, all solder ODF. Static superheat 4 °C (adjustable). MOP 100 psig at 15 °C. Max working pressure 49 bar (711 psig). Brass body, copper connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428137867.
Specifications
- Part number
- 067N2001
- HS code
- 8481.80
- Material
- Brass body, copper connections
- Pressure rating
- 49 bar (711 psig) max working pressure
- Temperature range
- -25 to 10 °C (evaporating)
- Standard size
- 1/2 in x 5/8 in
Compatibility
Rated for R22/R407C. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
Approvals
