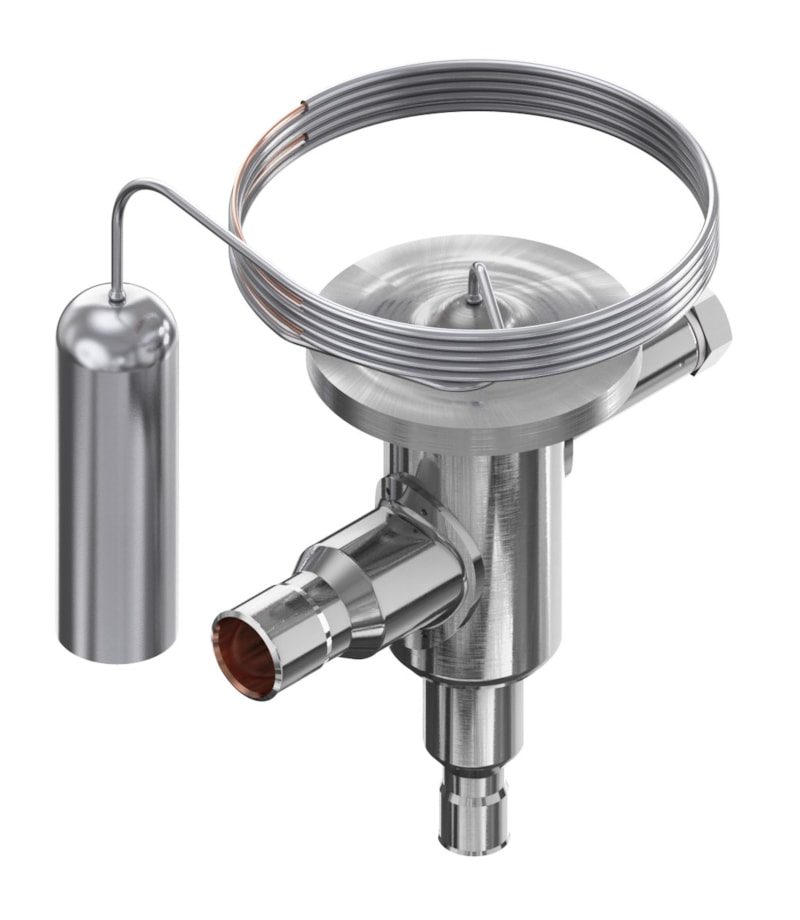

Danfoss 068U2496 TUB thermostatic expansion valve, R134a/R513A, 1/4 in x 3/8 in solder ODF
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TUB universal thermostatic expansion valve, OEM P/N 068U2496. Internally equalized, stainless-steel body and capillary (fixed orifice, adjustable superheat). Refrigerant R134a/R513A. Orifice assembly size 4. Nominal capacity 1.6 kW (0.45 TR) at the standard rating condition. Evaporating temperature range -40 to 10 °C. Inlet 1/4 in, outlet 3/8 in, solder ODF. Static superheat 4 °C (adjustable). Capillary/bulb length 800 mm. Max working pressure 34 bar (500 psig). Internally equalized for small evaporators with low refrigerant-side pressure drop. Hermetic laser-welded design per EU F-gas Regulation 517/2014. EAN 5702428446754.
Specifications
- Part number
- 068U2496
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 34 bar (500 psig) max working pressure
- Temperature range
- -40 to 10 °C (evaporating)
- Standard size
- 1/4 in x 3/8 in
Compatibility
Rated for R134a/R513A. Select capacity to the evaporator load and rating condition per the TU/TC data sheet before ordering.
Approvals
