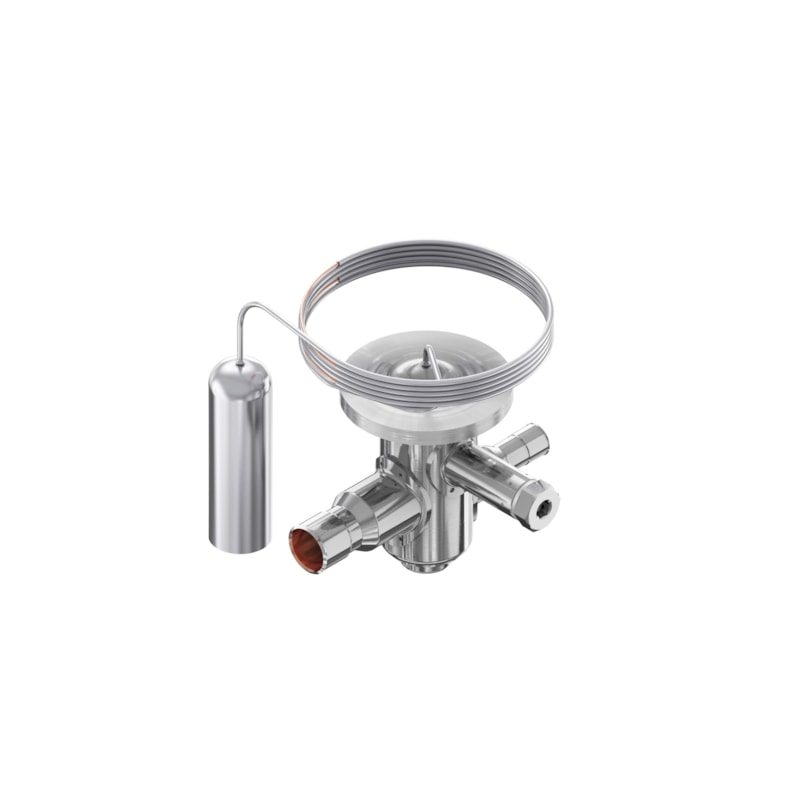

Danfoss 068U3913 TUB thermostatic expansion valve, R452A, 6 mm x 12 mm solder ODF
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TUB universal thermostatic expansion valve, OEM P/N 068U3913. Internally equalized, stainless-steel body and capillary (fixed orifice, adjustable superheat). Refrigerant R452A. Orifice assembly size 5. Nominal capacity 2.5 kW (0.7 TR) at the standard rating condition. Evaporating temperature range -40 to -15 °C. Inlet 6 mm, outlet 12 mm, solder ODF. Static superheat 4 °C (adjustable). Capillary/bulb length 800 mm. Max working pressure 34 bar (500 psig). Maximum operating pressure (MOP) 45 psig at -10 °C. Hermetic laser-welded design per EU F-gas Regulation 517/2014. EAN 5714279608762.
Specifications
- Part number
- 068U3913
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 34 bar (500 psig) max working pressure
- Temperature range
- -40 to -15 °C (evaporating)
- Standard size
- 6 mm x 12 mm
Compatibility
Rated for R452A. Select capacity to the evaporator load and rating condition per the TU/TC data sheet before ordering.
Approvals
