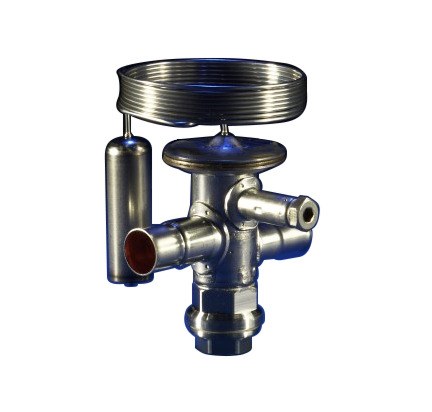

Danfoss 068U2281 TUA thermostatic expansion valve, R404A/R507A, 10 mm x 12 mm solder ODF
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TUA universal thermostatic expansion valve, OEM P/N 068U2281. Internally equalized, stainless-steel body and capillary (exchangeable orifice, adjustable superheat, internally equalized). Refrigerant R404A/R507A. Nominal capacity per selected orifice at the standard rating condition. Evaporating temperature range -40 to 10 °C. Inlet 10 mm, outlet 12 mm, Solder ODF. Static superheat 4 °C (adjustable). Capillary/bulb length 1500 mm. Max working pressure 34 bar (500 psig). Angleway flow direction. Hermetic laser-welded design per EU F-gas Regulation 517/2014. EAN 5702422182115. Exchangeable orifice assembly (orifice ordered separately).
Specifications
- Part number
- 068U2281
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 34 bar (500 psig) max working pressure
- Temperature range
- -40 °C to 10 °C (evaporating)
- Standard size
- 10 mm x 12 mm
Compatibility
Rated for R404A/R507A. Select capacity to the evaporator load and rating condition per the TU/TC data sheet before ordering.
Approvals
