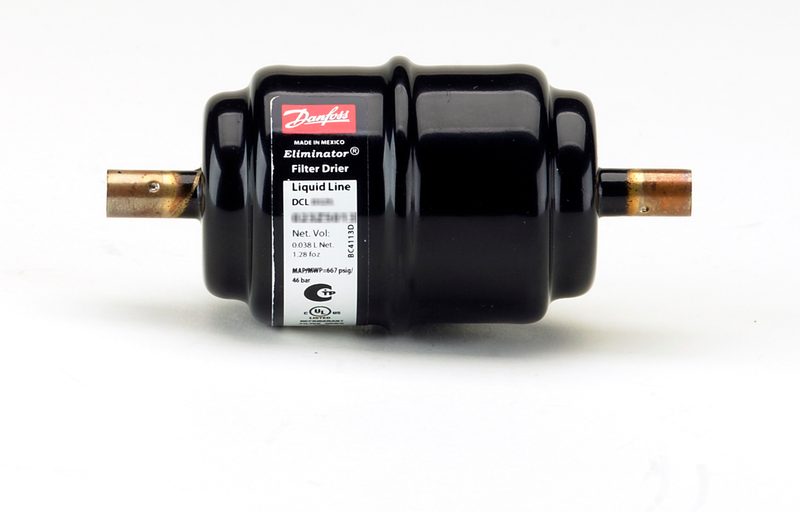

Danfoss DCL 032 filter drier, Flare, SAE, 1/4 in (6 mm)
Pricing
Request a quote
We reply within 24 hours
Product Description
DCL 032 ELIMINATOR hermetic filter drier, 03 cu.in. 80/20 molecular-sieve/activated-alumina solid core. Danfoss OEM, P/N 023Z5075. Liquid-line drier for refrigeration and air-conditioning systems; removes moisture, acids and solid particles from the refrigerant. Connection: Flare, SAE, 1/4 in (6 mm), inlet and outlet. Max working pressure 46 bar (667 psig); media temperature -40 to 70 °C. Acid-adsorbing 80/20 core (DCL) for burn-out clean-up. Refrigerant compatibility per the DML/DCL datasheet. EAN 5702428155335.
Technical Specifications
- Brand
- Danfoss
- Part number
- 023Z5075
- Model
- DCL 032 (ELIMINATOR hermetic filter drier)
- Category
- Filters & Driers
- Core
- 03 cu.in. solid core, 80% molecular sieve + 20% activated alumina
- Connection
- Flare, SAE, 1/4 in (6 mm), inlet and outlet
- Max working pressure
- 46 bar (667 psig)
- Operating temperature
- -40 °C to 70 °C (-40 °F to 160 °F)
- Body material
- Steel shell, steel connectors, 80/20 molecular-sieve/alumina core
- Packing format
- Multi pack (32 pc)
- EAN
- 5702428155335
- Approvals
- EAC, UL (file SA6398), PED Art. 4 par. 3, EU/China RoHS
- Net weight
- 0.166 Kilogram
- Type
- DCL
- Product group
- Filter driers
- Acid capacity [g]
- 0.53 g
- Acid capacity [oz]
- 0.019 oz
- Activated alumina [%]
- 20 %
- Approval
- UL
- Braket
- No
- China RoHS compliance
- Yes
- Connection Code
- (3011:X:6)
- Connection material
- Steel
- Core Size code
- 03 cu.in.
- Core type
- Solid core
- Drying Cap[Drops of Water]24°C
- R134a: 76
- Drying Cap[Drops of Water]52°C
- R134a: 69
- EU RoHS compliance
- Yes
- Filter application
- Std Moisture & Acid Capacity
- Flow capacity [kW]
- R134a: 5.8
- Flow capacity [TR]
- R134a: 1.6
- Flow direction indicator
- Label printed 1-way arrow
- Fluid Group
- 2
- Inlet 1 connection size [in]
- 1/4 in
- Inlet connection size [mm]
- 6 mm
- Inlet connection type
- Flare
- LiqCap Cond (ARI 710-2009)[SI]
- Delta p=0.07bar
- LiqCapCond (ARI 710-2009)[IMP]
- Delta p=1psi
- Lubricants compatibility
- Oilfree applications
- Max. Working Pressure [bar]
- 46 bar
- Max. Working Pressure [psig]
- 667 psig
- Molecular sieve [%]
- 80 %
- Net volume [foz US]
- 1.72 Fluid Ounce US
- Net volume [l]
- 0.051 L
- Oil free refrigerants
- R1234ze(E)
- Outlet 1 connection size [in]
- 1/4 in
- Outlet connection size [mm]
- 6 mm
- Outlet connection type
- Flare
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R1233zd(E)
- Shell volume [foz US]
- 2.44 Fluid Ounce US
- Shell volume [l]
- 0.07 L
- Solid core surface [cm2]
- 59 cm²
- Solid core surface [in2]
- 9.1 in²
- Solid core volume [cm3]
- 21 cm³
- Solid core volume [in3]
- 1.3 in³
- Temperature range [°C] [max]
- 70 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 160 °F
- Temperature range [°F] [min]
- -40 °F
- Type designation
- DCL 032
- UL approval file name
- SA6398
- UL approved refrigerants
- R125
- UL mark
- Yes
Standards & Compliance
- Size / Series
- 1/4 in (6 mm)
- Material
- Steel shell, steel connectors, 80/20 molecular-sieve/alumina core
- Pressure Rating
- 46 bar (667 psig) max working pressure
- Temperature Range
- -40 °C to 70 °C
- Classification / Approval
- EAC, UL (file SA6398), PED Art. 4
- HS Code
- 8421.39
Compatibility & Fitment
Refrigerant compatibility listed on the DML/DCL datasheet. Verify against your system specification before ordering.
Product Documentation
More from Danfoss
Danfoss
Danfoss TUB thermostatic expansion valve, R134A/R513A, 6 mm x 12 mm solder ODF 068U2000
Danfoss
Danfoss TUB thermostatic expansion valve, R134A/R513A, 6 mm x 12 mm solder ODF 068U2002
Danfoss
Danfoss TUB thermostatic expansion valve, R134A/R513A, 6 mm x 12 mm solder ODF 068U2003
Danfoss
Danfoss TUB thermostatic expansion valve, R134A/R513A, 6 mm x 12 mm solder ODF 068U2004
Danfoss
Danfoss TUB thermostatic expansion valve, R134A/R513A, 6 mm x 12 mm solder ODF 068U2005
Danfoss
Danfoss TUB thermostatic expansion valve, R134A/R513A, 10 mm x 12 mm solder ODF 068U2006
Danfoss
Danfoss TUB thermostatic expansion valve, R134A/R513A, 10 mm x 12 mm solder ODF 068U2007
Danfoss

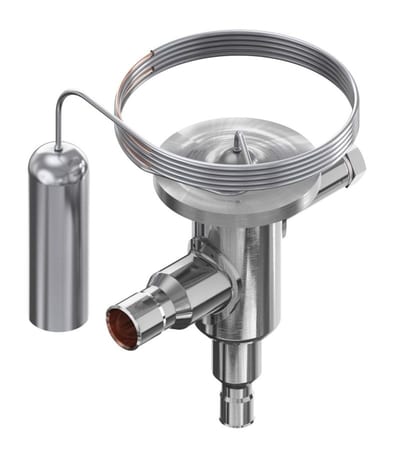

Danfoss TUB thermostatic expansion valve, R22/R407C, 1/4 in x 1/2 in solder ODF 068U2056
