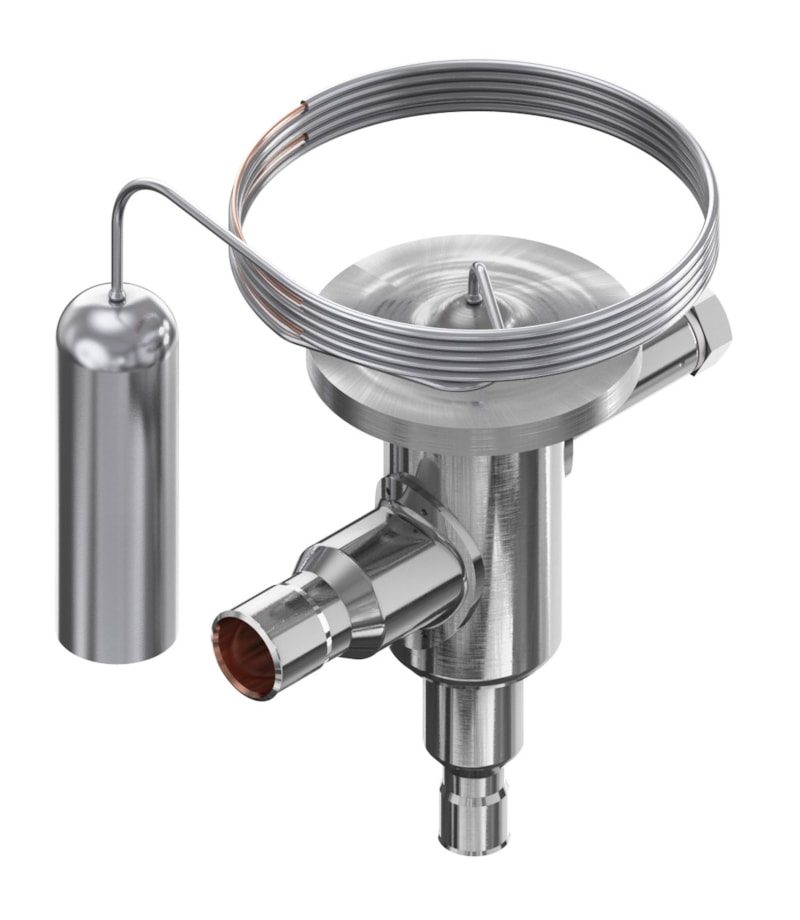

Danfoss TUB thermostatic expansion valve, R134A/R513A, 6 mm x 12 mm solder ODF 068U2004
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss TUB universal thermostatic expansion valve, OEM P/N 068U2004. Internally equalized, stainless-steel body and capillary (fixed orifice, adjustable superheat, internally equalized). Refrigerant R134a/R513A. Nominal capacity 2.7 kW (0.78 TR) at the standard rating condition. Orifice assembly no. 5. Evaporating temperature range -40 to 10 °C. Inlet 6 mm, outlet 12 mm, Solder ODF. Static superheat 4 °C (adjustable). Capillary/bulb length 800 mm. Max working pressure 34 bar (500 psig). Single-flow, angleway flow direction. Hermetic laser-welded design per EU F-gas Regulation 517/2014. EAN 5702422138532.
Technical Specifications
- Brand
- Danfoss
- Part number
- 068U2004
- Type
- TUB (fixed orifice, adjustable superheat, internally equalized)
- Category
- Expansion valves — thermostatic
- Refrigerant
- R134a/R513A
- Nominal capacity
- 2.7 kW (0.78 TR)
- Orifice assembly
- No. 5
- Pressure equalization
- Internally equalized
- Inlet connection
- 6 mm, Solder ODF
- Outlet connection
- 12 mm, Solder ODF
- Static superheat
- 4 °C (7.2 °F), adjustable
- Evaporating temperature range
- -40 °C to 10 °C (-40 °F to 50 °F)
- Capillary tube / bulb length
- 800 mm
- Max working pressure
- 34 bar (500 psig)
- Body material
- Stainless steel
- Flow direction
- Single-flow, angleway
- EAN
- 5702422138532
- Approvals
- UL, EAC
- Net weight
- 0.143 Kilogram
- Product group
- Expansion valves
- Approval
- EAC
- Capillary tube length [in]
- 31 in
- Capillary tube length [mm]
- 800 mm
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Connection Code
- (3001:X:6; 3001:X:12)
- Connection material
- Bi-metal: Steel/copper
- Direction
- Angleway
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction indicator
- Laser engraved 1-way arrow
- Fluid Group
- 2
- Identical product
- 068U2712
- Inlet connection type
- Solder, ODF
- Inlet size [mm]
- 6 mm
- Max. Working Pressure [bar]
- 34 bar
- Max. Working Pressure [psig]
- 500 psig
- Orifice capacities [kW]
- 2.7 kW
- Orifice capacities [TR]
- 0.78 TR
- Orifice size
- 5
- Outlet connection type
- Solder, ODF
- Outlet size [mm]
- 12 mm
- Parts included
- Bulb strap
- PED category
- Art. 4, par. 3
- Rated cap. cond. Range N [IMP]
- OS=7.2 ºF
- Rated cap. cond. Range N [SI]
- OS=4K
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R134a/R513A
- Seal
- No
- Static Superheat (SS) [°C]
- 4 °C
- Static Superheat (SS) [°F]
- 7.2 °F
- Superheat setting
- Adjustable
- Temperature range [°C] [max]
- 10 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 50 °F
- Temperature range [°F] [min]
- -40 °F
- UL approved refrigerants
- R134a
- UL mark
- Yes
Standards & Compliance
- Size / Series
- 6 mm x 12 mm
- Material
- Stainless steel
- Pressure Rating
- 34 bar (500 psig) max working pressure
- Temperature Range
- -40 °C to 10 °C (evaporating)
- Classification / Approval
- UL, EAC
- HS Code
- 8481.80
Compatibility & Fitment
Rated for R134a/R513A. Select capacity to the evaporator load and rating condition per the TU/TC data sheet before ordering.
