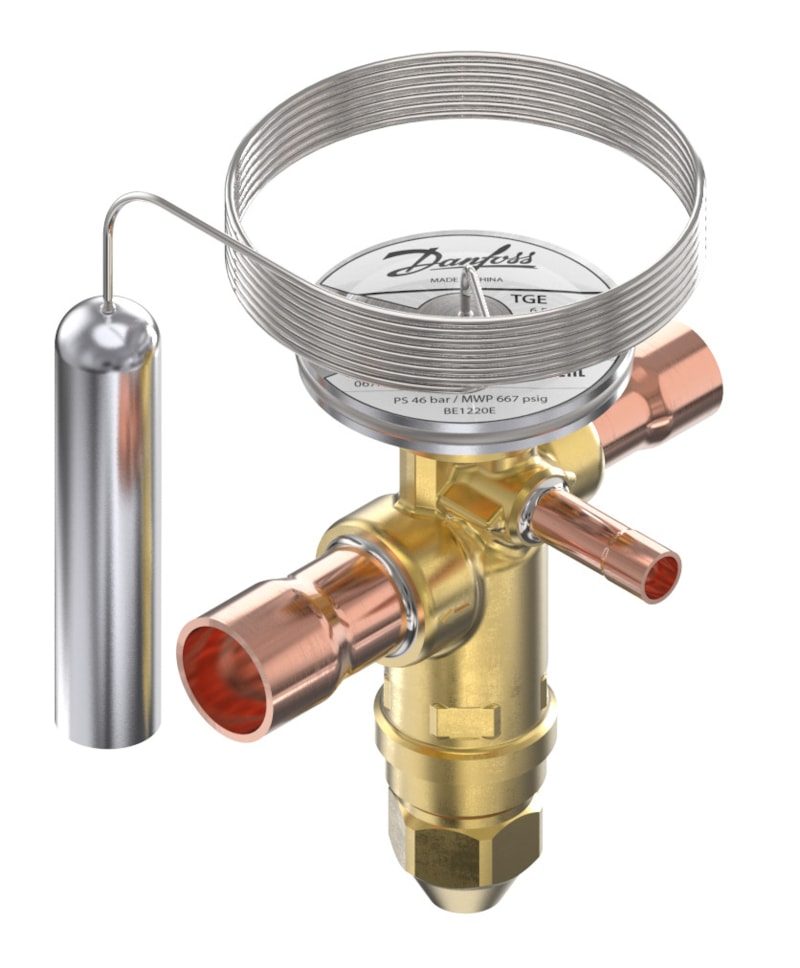

Danfoss 067N5301 TGE thermostatic expansion valve, R134a/R513A, 12 mm x 16 mm solder odf
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss TGE thermostatic expansion valve, OEM P/N 067N5301. Externally equalized, balanced-port, bi-flow (straightway) design with adjustable superheat. Refrigerant R134a/R513A. Orifice assembly size 6. Nominal capacity 12 kW (3.5 TR) at the standard rating condition. Evaporating temperature range -10 to 15 °C. Inlet 12 mm, outlet 16 mm, external equalizer 6 mm, all Solder ODF. Static superheat 4 °C (adjustable). MOP 70 psig at 20 °C. Max working pressure 49 bar (711 psig). Brass body, copper connections; 1500 mm capillary tube with bulb strap. PED Art. 4 par. 3. EAN 5702428488532.
Specifications
- Part number
- 067N5301
- HS code
- 8481.80
- Material
- Brass body, copper connections
- Pressure rating
- 49 bar (711 psig) max working pressure
- Temperature range
- -10 to 15 °C (evaporating)
- Standard size
- 12 mm x 16 mm
Compatibility
Rated for R134a/R513A. Select orifice/capacity to the evaporator load and rating condition per the TGE data sheet before ordering.
Approvals
