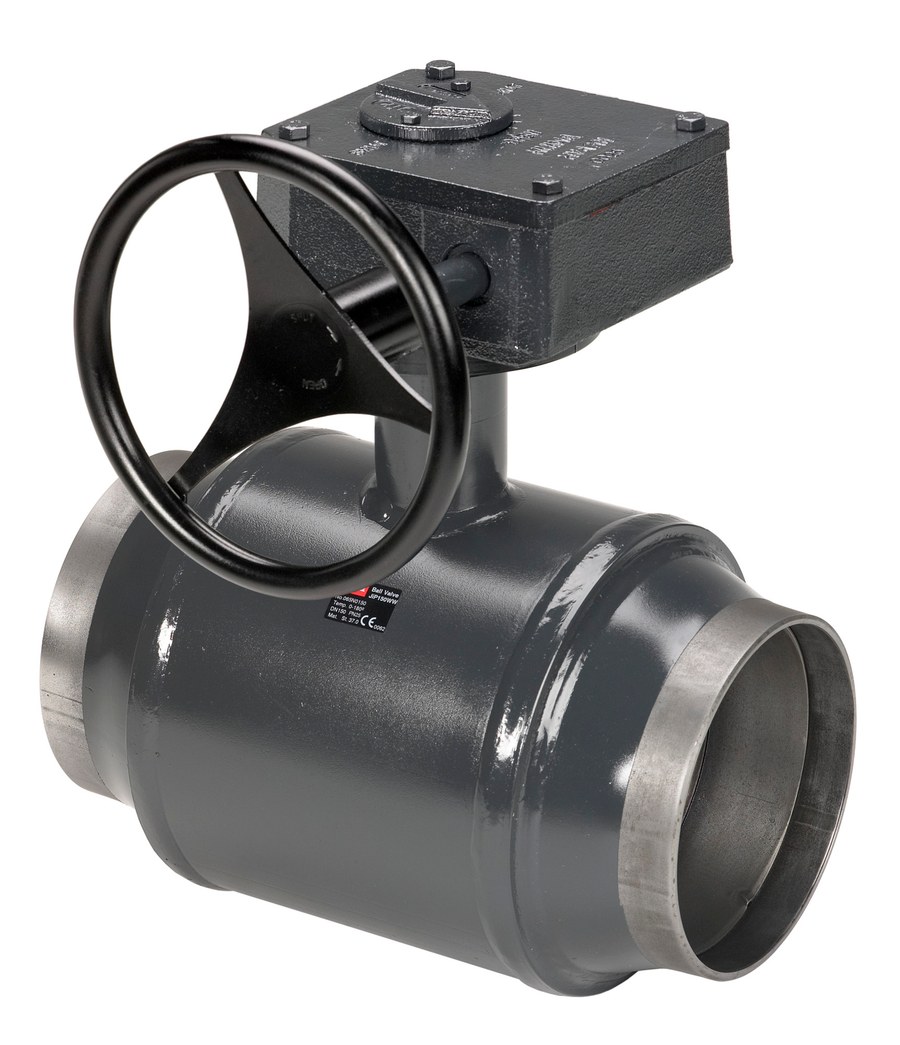

Danfoss JIP-WW ball valve DN 200 PN 25 — reduced bore, worm gear
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss JIP-WW industrial ball valve, DN 200 PN 25, reduced bore, weld × weld (butt-weld) connection, worm gear operated. Two-port on/off isolation valve for Heating and cooling circulation water; weldable-steel body with stainless-steel ball and stem. Rated PN 25. OEM P/N 065N2156. EAN 5710104513249. Verbatim technical data from store.danfoss.com (code 065N2156).
Technical Specifications
- Code number
- 065N2156
- Type
- JIP-WW, RB, Worm gear
- Product group
- Ball valves
- Valve size
- DN 200
- Pressure class
- PN 25
- Valve type
- Reduced Bore
- EU RoHS compliance
- Out of scope
- China RoHS compliance
- Out of scope
- REACH Candidate List substances
- No
- Net weight
- 55 kg
- Gross weight
- 56.5 kg
- EAN
- 5710104513249
Standards & Compliance
- Material
- Body: weldable steel #20 (CE/PED-approved); ball & stem: stainless steel
- Pressure Rating
- PN25
- Classification / Approval
- CE / PED
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss JIP-WW DN 200 PN 25, weld × weld (butt-weld). Confirm bore (Reduced Bore), end configuration and operator against the pipework; JIP-FF (flange/flange), JIP-FW (flange/weld), JIP-WW (weld/weld) and JIP-II (thread/thread) end configurations are not interchangeable.
Product Documentation
More from Danfoss
Danfoss
Danfoss JIP-WW ball valve DN 200 PN 25 — reduced bore, branching
065N2158
Danfoss
Danfoss JIP-WW ball valve DN 250 PN 25 — reduced bore, worm gear
065N2161
Danfoss
Danfoss JIP-WW ball valve DN 300 PN 25 — reduced bore, worm gear
065N2166
Danfoss
Danfoss JIP-II ball valve DN 20 PN 40 — reduced bore (065N2210)
Danfoss

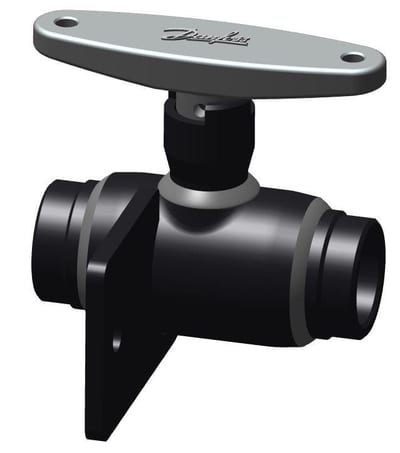

Danfoss JIP-II ball valve DN 20 PN 40 — reduced bore (065N2211)
Danfoss

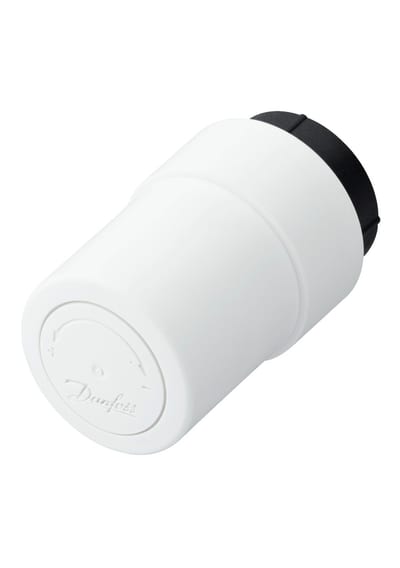

Danfoss manual handwheel for RA radiator valves — RAL 9016 (013G5002)
Danfoss

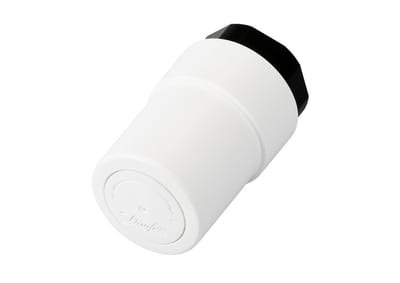

Danfoss manual handwheel for non-Danfoss radiator valves — RAL 9016
013G5003
Danfoss

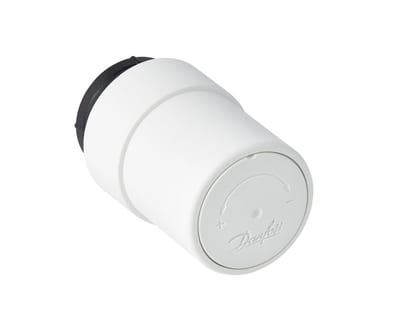

Danfoss manual handwheel for RA radiator valves — RAL 9016 (013G5009)
