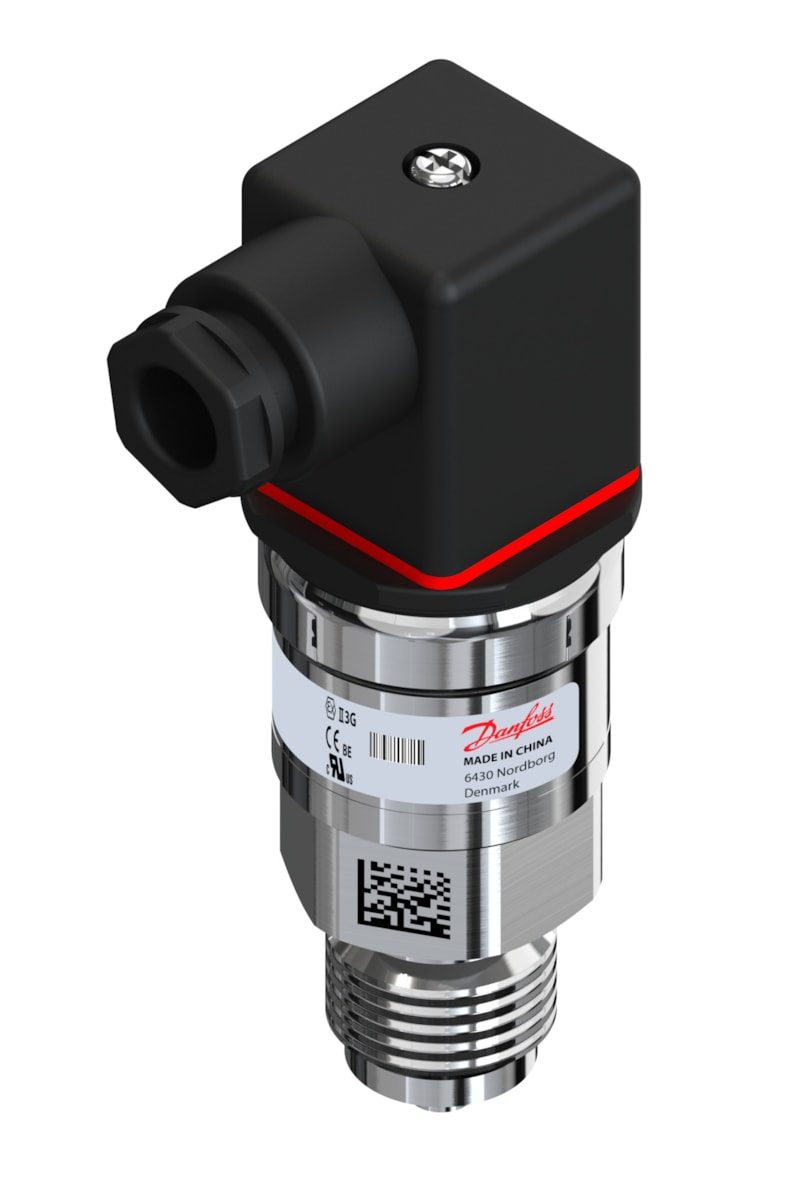

Danfoss MBS 3000 Pressure Transmitter 0–16 bar 4–20 mA — 060G1413
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G1413. Output 4–20 mA (2-wire) over a measuring range of 0–16 bar (0–232 psi), supply voltage 9–32 V DC. Pressure connection G 1/2 male (EN 837); electrical connection Angular connector Pg 9 (EN 175301-803-A). Pressure reference sealed gauge. Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US). EAN 5702423100255.
Specifications
- Part number
- 060G1413
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0–16 bar (0–232 psi)
- Temperature range
- -40 to +85 °C ambient
- IP rating
- IP65
- Standard size
- G 1/2 male (EN 837)
- Thread standard
- G 1/2 male (EN 837)
Compatibility
Select the measuring range and pressure/electrical connection to suit the application. Observe supply voltage and load limits.
