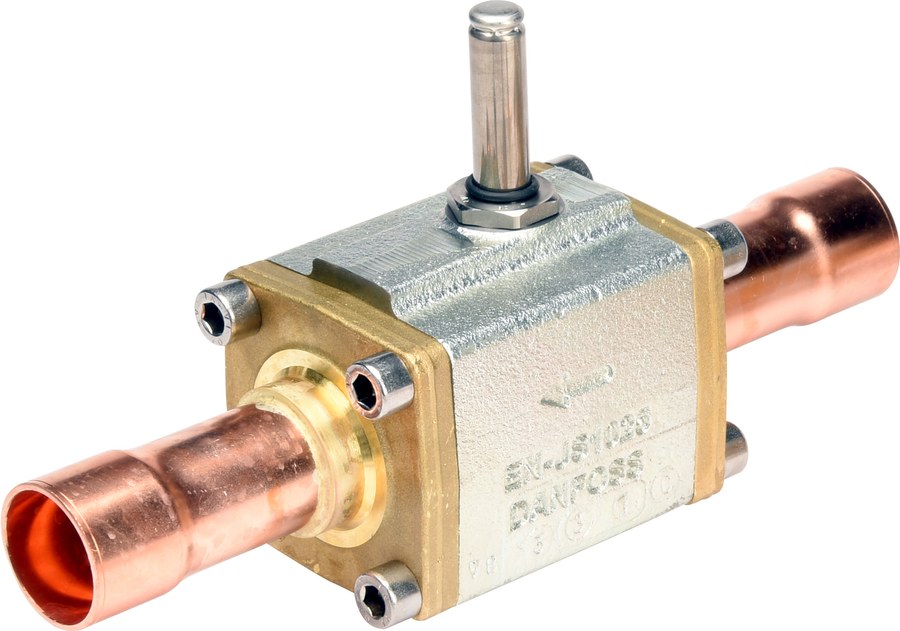

Danfoss EVR 32 Solenoid Valve 42 mm ODF Solder NC Refrigeration
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVR 32 normally closed (NC) servo-operated solenoid valve body, OEM P/N 032L1108. Controls the flow of liquid, suction and hot-gas refrigerant lines in commercial refrigeration and air-conditioning systems. Two-way servo-piston design with solder ODF connections, 42 mm inlet and outlet, cast-iron body. Max working pressure 45.2 bar (655 psig); media temperature -40 °C to 105 °C. The coil is ordered separately (AC or DC, clip-on). Refrigerant compatibility is listed on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 032L1108
- Model
- EVR 32 servo-operated solenoid valve (valve body)
- Category
- HVAC & Refrigeration — Solenoid Valves
- Function
- NC (normally closed)
- Type
- 2-way servo-piston solenoid valve
- Connection
- Solder, ODF, 42 mm, inlet and outlet
- Orifice
- 22.23 mm
- Kv
- 16.7 m³/h
- Manual stem operation
- No
- Max working pressure (PS/MWP)
- 45.2 bar (655 psig)
- Media temperature range
- -40 °C to 105 °C (-40 °F to 221 °F)
- Body
- cast iron
- Coil
- ordered separately (clip-on; AC/DC versions available)
- Net weight
- 4.398 kg
- Gross weight
- 4.81 kg
- Approvals
- UL (MH7648), CE / PED (2014/68/EU, EU Declaration Danfoss MD 033F0687), EAC
- HS code
- 8481.80
- Code number
- 032L1108
- Product group
- Solenoid valves
- Type designation
- Solenoid valve, Solder
- Direction
- Straightway
- Valve operation
- Servo-piston
- Inlet connection type
- Solder, ODF
- Inlet size
- 42.00 mm
- Outlet connection type
- Solder, ODF
- Outlet size
- 42.00 mm
- Cv value
- 19.300 gal/min
- MaxOPD 10W AC
- 38 bar
- MaxOPD 20W DC
- 17 bar
- MaxOPD coil BJ/BX
- 31 bar
- MinODP
- 0.200 bar
- MOPD [bar/psi]
- Coil Dependent
- Medium temperature range
- -40 °C to 105 °C
- Ambient temperature
- -40 - 80 °C
- Refrigerants
- R1234ze(E); R125; R134a; R22; R404A; R407A; R407C; R407F; R410A; R448A; R449A; R450A; R452A; R507A; R513A; R515B
- Lubricants compatibility
- AB; MO; PAG; PAO; POE; PVE
- UL approved refrigerants
- R1234ze(E); R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R410A; R448A; R449A; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R507A; R513A; R515B; R600; R600a
- UL mark
- Yes
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- EAN
- 5702428943154
Standards & Compliance
- Material
- Cast-iron body — full material breakdown in the EVR datasheet
- Pressure Rating
- 45.2 bar (655 psig) max working pressure
- Temperature Range
- -40 °C to 105 °C
- Classification / Approval
- UL (MH7648), CE / PED (2014/68/EU), EAC
- HS Code
- 8481.80
Compatibility & Fitment
Normally closed servo-operated solenoid valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Coil ordered separately. Solder ODF connections — verify code and connection size before ordering. Image is a generic solenoid-valve category placeholder (no fabricated brand artwork).
