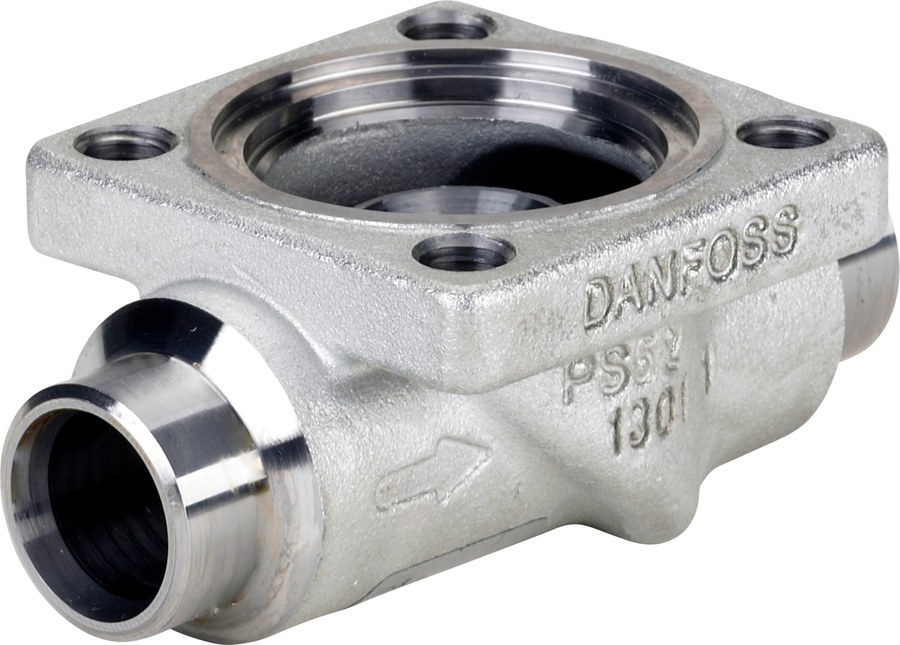

Danfoss ICV 20 multifunction valve body, butt weld 20 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss ICV 20 multifunction (Flexline) valve body, function module. Butt-weld connection 3/4 in (20 mm). Danfoss code number 027H1148. Steel body for industrial refrigeration service. Top module ordered separately.
Technical Specifications
- Brand
- Danfoss
- Type
- ICV 20 multifunction valve body (function module)
- Code number
- 027H1148
- Connection
- butt weld, 3/4 in (20 mm), ASME B 36.10M Schedule 80
- Body material
- steel
- Max. working pressure
- 52 bar (754 psig)
- Temperature range
- -60 to 120 °C (-76 to 248 °F)
- Flow direction
- embossed 1-way arrow
- Internal volume
- 1.197 L
- EAN
- 5702428243100
- Net weight
- 0.65 kg; gross weight: 0.808 kg
- Packing format
- single pack, 1 pc
- Refrigerant compatibility
- R134a, R404A, R410A, R32, R290, R717, R744 and others
- REACH Candidate List
- no substances listed
- EU RoHS / China RoHS
- compliant
- Approvals
- CE, EAC, PED 2014/68/EU, UL, EN 12178, EN 12284
- Product group
- Multifunction valves
- China RoHS compliance
- Yes
- Connection Code
- (2002:S80:20)
- Connection material
- Steel
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Connection standard
- ASME B 36.10M SCHEDULE 80
- Connection type
- Butt weld
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 120 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 248 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- ICM 20
- Valve operation
- Function module
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar (754 psig)
- Temperature Range
- -60 to 120 °C
- Classification / Approval
- CE, EAC, PED 2014/68/EU, EN 12178, EN 12284, UL
- HS Code
- 8481.80
Compatibility & Fitment
ICV 20 body for the ICM/ICS/ICLX modular valve programme. Confirm port size and top module against the system spec.
