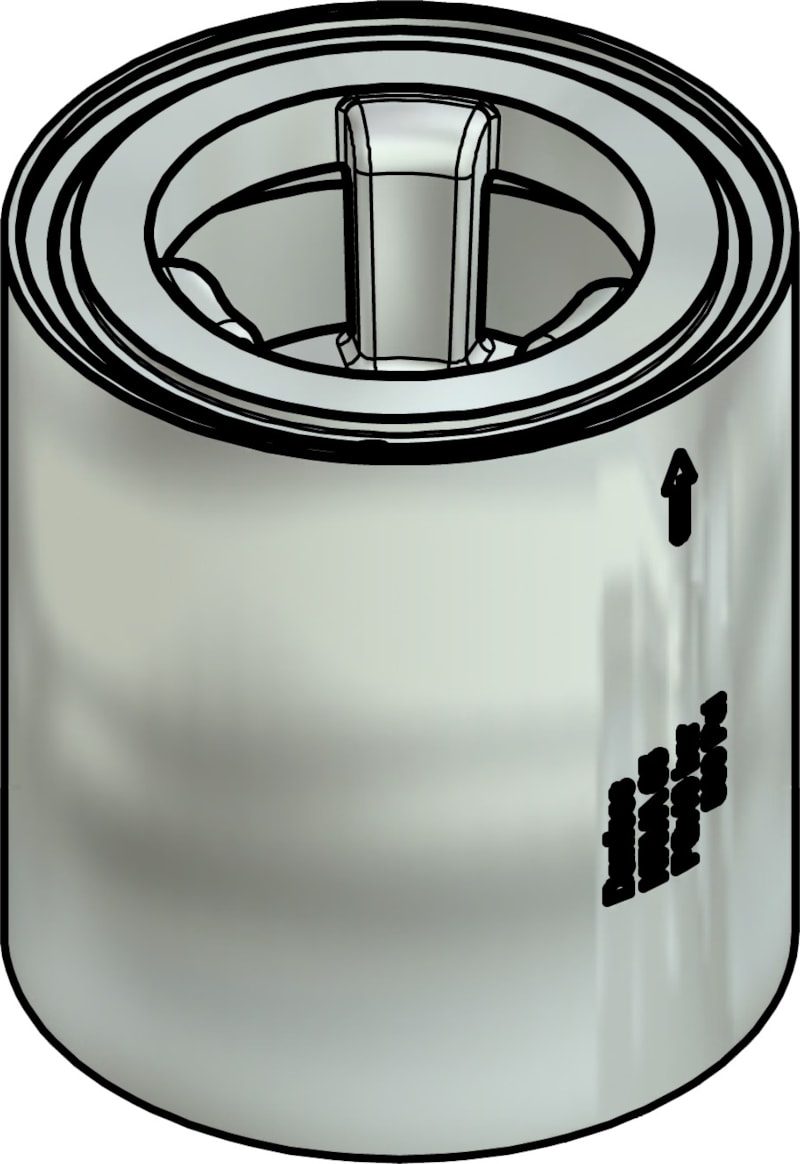

Danfoss NRVA 65 Check Valve Body (Flangeless) 020-2026
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss NRVA 65 check-valve body, OEM P/N 020-2026 — the flangeless valve housing (without flanges) of the NRVA industrial refrigeration check valve. Ordered separately from the weld/socket/solder/FPT flange set so the same body can be matched to any connection standard. Contains the damping piston and PTFE seat; prevents reverse refrigerant flow in ammonia (R717), HCFC and HFC plant. Straightway pattern, no orientation limitation. Max working pressure 40 bar (580 psig); media temperature -50 °C to 140 °C. Kv 75 m³/h. Pair with the matching NRVA flange kit for the required connection.
Specifications
- Part number
- 020-2026
- HS code
- 8481.90
- Material
- Valve housing steel (A352 LCC / P285QH); valve seat PTFE; spring stainless steel (A2-70); damping piston stainless steel
- Pressure rating
- 40 bar (580 psig) max working pressure
- Temperature range
- -50 °C to 140 °C
Compatibility
Body only — supply the connection flanges to complete the valve. Install in the direction of the flow arrow. The differential pressure must exceed the minimum opening pressure differential at all capacity stages. Verify code and body size (which covers a size range) before ordering.
Standards
Approvals
