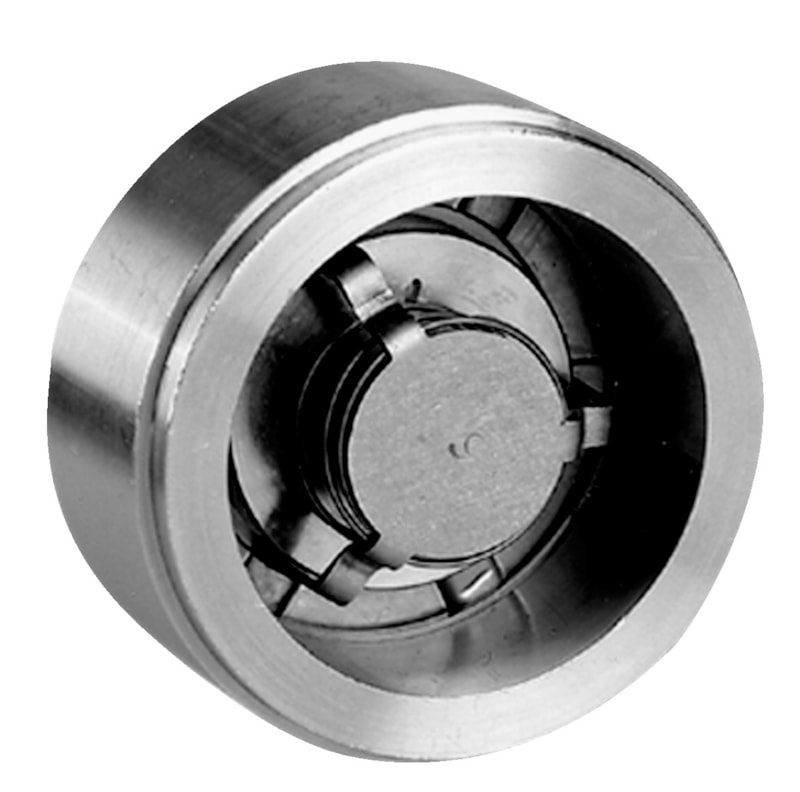

Danfoss NRVS 25 Stainless Steel Check Valve 1 in Port

Danfoss NRVS 25 stainless-steel check valve, OEM P/N 020-2033. A compact non-return valve designed to be mounted inside an EVRA solenoid valve or PM main valve to prevent reverse refrigerant flow. Unlike the NRVA, the NRVS has no damping feature. Stainless-steel valve housing; applicable to HCFC, HFC and R717 (ammonia). Port 1 in. Max working pressure 28 bar (406 psig); media temperature -50 °C to 140 °C. minimum opening differential pressure 0.11 bar. Flammable hydrocarbons are not recommended.

Brand

Danfoss Part number: 020-2033 Model: NRVS 25 check valve (no damping), stainless steel Category: HVAC & Refrigeration — Check Valves Type: Insert check valve — mounts inside EVRA solenoid valve / PM main valve Port size: 1 in Max working pressure (PS/MWP): 28 bar (406 psig) Media temperature range: -50 °C to 140 °C (-58 °F to 284 °F) minimum opening differential pressure: 0.11 bar Damping: none (NRVS has no damping feature) Net weight: 0.11 kg (gross 0.179 kg) Packing: Multi pack (10 pc) EAN: 5702422186557 Materials: Valve housing stainless steel Approvals: PED (Art. 4 par. 3), EU RoHS Refrigerants: HCFC, HFC and R717 (Ammonia); flammable hydrocarbons not recommended — see datasheet Product group: Check valves China RoHS compliance: Yes Comments: 97004 EU RoHS compliance: Yes Fluid Group: 1 Max. Working Pressure [bar]: 28 bar Max. Working Pressure [psig]: 406 psig PED category: Art. 4, par. 3 REACH Candidate List substances: No Temperature range [°C] [max]: 140 °C Temperature range [°C] [min]: -50 °C Temperature range [°F] [max]: 284 °F Temperature range [°F] [min]: -58 °F Used for product: EVRA 20 - 25

Material

Valve housing stainless steel

Pressure Rating

28 bar (406 psig) max working pressure

Temperature Range

-50 °C to 140 °C

Classification / Approval

PED (Art. 4 par. 3), EU RoHS

HS Code

8481.30
