Danfoss GBC 28L Shut-off Ball Valve with Cap Strap and Access Port 1 1/8 in Solder ODF 009L8366
Danfoss · HVAC & Refrigeration · Ball Valves
Danfoss GBC 28L manually operated shut-off ball valve, OEM P/N 009L8366. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder ODF/ODF connections, 1 1/8 in. Stainless steel body with Cu-plated stainless steel tube and a one-piece wire-seal cap retained by a cap strap so the cap is not lost during service. This version has an external access port. Max working pressure 50 bar (725 psig); media temperature -40 °C to 150 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.
Specifications
- Part number
- 009L8366
- HS code
- 8481.80
- Material
- Stainless steel body; Cu-plated stainless steel tube — full material breakdown in the GBC datasheet
- Pressure rating
- 50 bar (725 psig) max working pressure
- Temperature range
- -40 °C to 150 °C
Compatibility

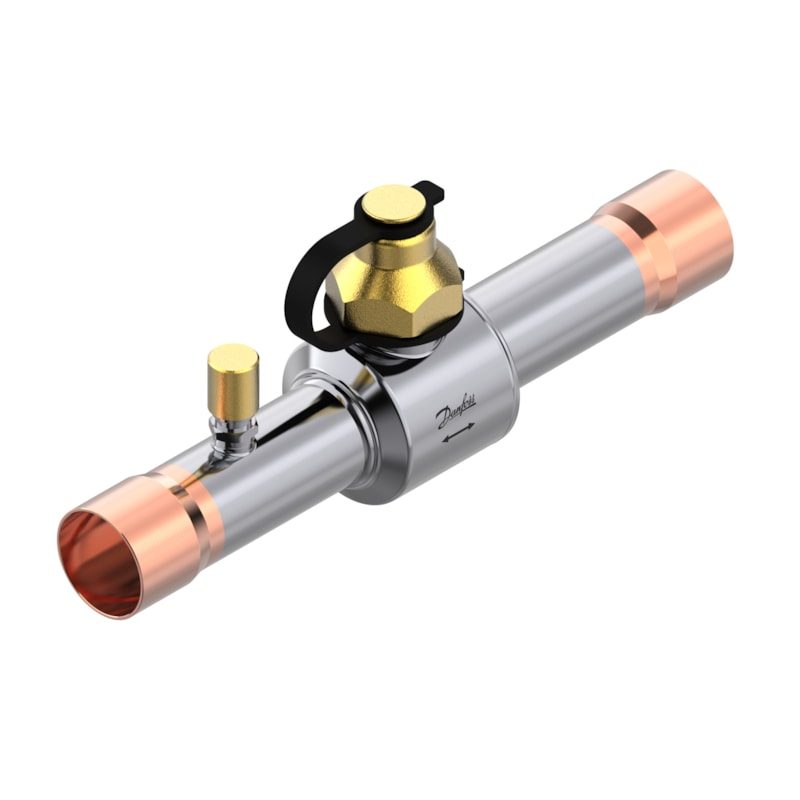

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-directional (valve orientation is unimportant). Solder ODF/ODF 1 1/8 in connections, with external access port and a cap strap that keeps the wire-seal cap with the valve — verify code and connection size before ordering. Image is the genuine Danfoss GBC datasheet product render (representative GBC-family body) shared across the GBC line.
Standards
Approvals
