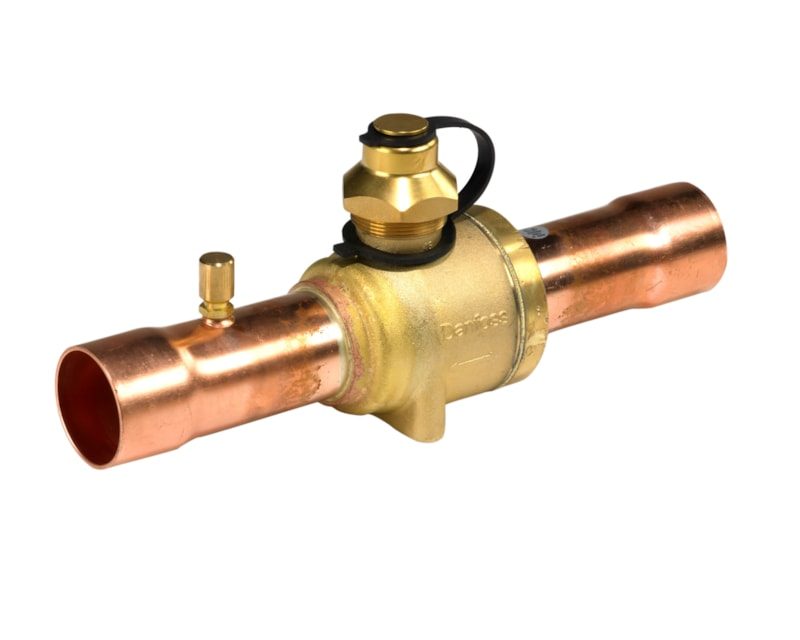

Danfoss GBC 42S Shut-off Ball Valve 1 5/8 in Solder ODF with cap strap

Danfoss GBC 42s manually operated shut-off ball valve, OEM P/N 009L8068. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder odf with cap strap connections, 1 5/8 in inlet and outlet. Brass body with copper tube and a one-piece wire-seal cap retained by a cap strap. This version is supplied with an external access port. Max working pressure 45 bar (650 psig); media temperature -40 °C to 100 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.

Brand

Danfoss

Part number

009L8068

Model

GBC 42s shut-off (stop) ball valve with cap strap

Category

HVAC & Refrigeration — Ball Valves

Direction

Straightway

Flow

Bi-directional (valve orientation is unimportant)

Connection

Solder, ODF, 1 5/8 in, inlet and outlet

Access port

Yes

Max working pressure (PS/MWP)

45 bar (650 psig)

Media temperature range

-40 °C to 100 °C (-40 °F to 212 °F)

Kv

134.76 m³/h

Cv

155.78 gal/min

Net weight

2.2 kg

Gross weight

2.727 kg

Materials

Brass body; copper tube; one-piece wire-seal cap with cap strap

PED category

I

Approvals

C UL US Listed, CE

Multipack

4

EAN

5702428005692

Refrigerant compatibility

R134a, R22/R407C, R290, R32, R404A/R507, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1233zd(E), R1234ze(E), R1234yf

Material

Brass body; copper tube — full material breakdown in the GBC datasheet

Pressure Rating

45 bar (650 psig) max working pressure

Temperature Range

-40 °C to 100 °C

Classification / Approval

C UL US Listed, CE

HS Code

8481.80
