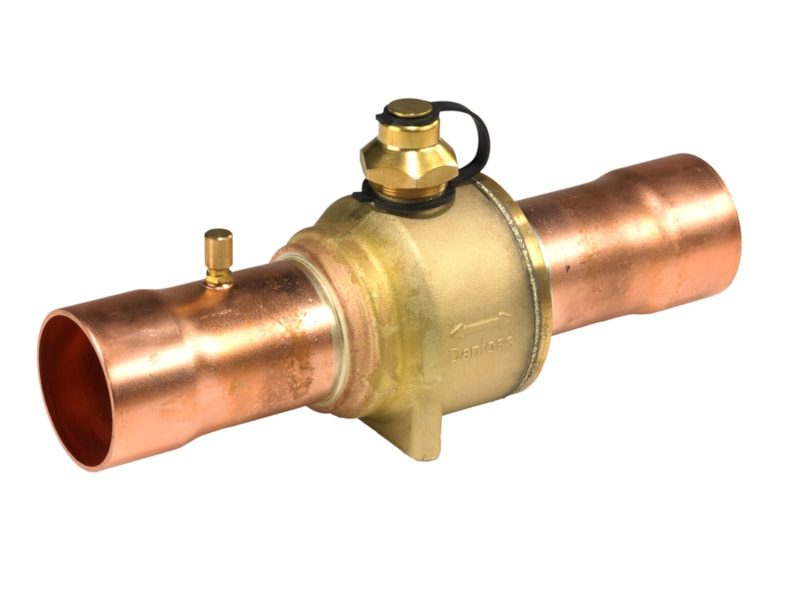

Danfoss GBC 67S Shut-off Ball Valve 2 5/8 in Solder ODF with cap strap

Danfoss GBC 67s manually operated shut-off ball valve, OEM P/N 009L8069. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder odf with cap strap connections, 2 5/8 in inlet and outlet. Brass body with copper tube and a one-piece wire-seal cap retained by a cap strap. This version is supplied with an external access port. Max working pressure 45 bar (650 psig); media temperature -40 °C to 100 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.

Brand

Danfoss

Part number

009L8069

Model

GBC 67s shut-off (stop) ball valve with cap strap

Category

HVAC & Refrigeration — Ball Valves

Direction

Straightway

Flow

Bi-directional (valve orientation is unimportant)

Connection

Solder, ODF, 2 5/8 in, inlet and outlet

Access port

Yes

Max working pressure (PS/MWP)

45 bar (650 psig)

Media temperature range

-40 °C to 100 °C (-40 °F to 212 °F)

Kv

367.38 m³/h

Cv

424.69 gal/min

Net weight

5.8 kg

Gross weight

6.954 kg

Materials

Brass body; copper tube; one-piece wire-seal cap with cap strap

PED category

I

Approvals

C UL US Listed, CCS, CE, EAC

Multipack

1

EAN

5702428005685

Refrigerant compatibility

R134a, R22/R407C, R290, R32, R404A/R507, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1233zd(E), R1234ze(E), R1234yf

Material

Brass body; copper tube — full material breakdown in the GBC datasheet

Pressure Rating

45 bar (650 psig) max working pressure

Temperature Range

-40 °C to 100 °C

Classification / Approval

C UL US Listed, CCS, CE, EAC

HS Code

8481.80
