Danfoss GBC 18L Shut-off Ball Valve with Cap Strap and Access Port 3/4 in Solder ODF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss GBC 18L manually operated shut-off ball valve, OEM P/N 009L8354. Used to isolate liquid, suction and hot-gas lines in commercial refrigeration and air-conditioning systems. Straightway, bi-directional design with solder ODF/ODF connections, 3/4 in. Stainless steel body with Cu-plated stainless steel tube and a one-piece wire-seal cap retained by a cap strap so the cap is not lost during service. This version has an external access port. Max working pressure 50 bar (725 psig); media temperature -40 °C to 150 °C. Refrigerant compatibility is listed below and on the datasheet — verify against your system charge.
Technical Specifications
- Brand
- Danfoss
- Part number
- 009L8354
- Model
- GBC 18L shut-off (stop) ball valve, cap-strap version
- Category
- HVAC & Refrigeration — Ball Valves
- Direction
- Straightway
- Flow
- Bi-directional (valve orientation is unimportant)
- Connection
- Solder, ODF, 3/4 in, inlet and outlet
- Access port
- Yes (external, thread 7/16-20 UNF)
- Cap retention
- One-piece wire-seal cap with cap strap
- Max working pressure (PS/MWP)
- 50 bar (725 psig)
- Media temperature range
- -40 °C to 150 °C (-40 °F to 302 °F)
- Kv
- 21.93 m³/h
- Cv
- 25.35 gal/min
- Net weight
- 0.32 kg
- Gross weight
- 0.396 kg
- Materials
- Stainless steel body; Cu-plated stainless steel tube; one-piece wire-seal cap with cap strap; access port cap
- PED category
- Art. 4.3 (fluid groups 1 and 2)
- Approvals
- PED (2014/68/EU), UL 207 (UL/cUL Listed), UA
- Refrigerant compatibility
- R134a, R22/R407C, R290, R32, R404A/R507, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1233zd(E), R1234ze(E), R1234yf
- Code number
- 009L8354
- Product type
- GBC 18L
- Product group
- Shut-off and regulating valves
- Body material
- Stainless steel
- Connection material
- Cu-plated SS
- Inlet connection type
- Solder, ODF
- Inlet size
- 3/4 in
- Outlet connection type
- Solder, ODF
- Outlet size
- 3/4 in
- Cv value
- 25.350 gal/min
- Max. media temp. Oil free
- 150 °C
- Temperature range
- -40 °C to 150 °C
- Refrigerants
- R1233zd(E); R1234yf; R1234ze(E); R134a; R22/R407C; R245fa; R290; R32; R404A/R507A; R407A; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R515B; R516A
- Fluid Group
- 1; 2
- UL approved refrigerants
- R1233zd(E); R1234yf; R1234ze(E); R134a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- EAN
- 5715255015840
- Equipment
- Cap w. wire seal
- Flow direction
- Bi-flow
- Flow direction indicator
- Laser engraved 2-way arrow
- Ignition source assessment
- Yes
Standards & Compliance
- Material
- Stainless steel body; Cu-plated stainless steel tube — full material breakdown in the GBC datasheet
- Pressure Rating
- 50 bar (725 psig) max working pressure
- Temperature Range
- -40 °C to 150 °C
- Classification / Approval
- PED (2014/68/EU), UL 207 (UL/cUL Listed), UA
- HS Code
- 8481.80
Compatibility & Fitment

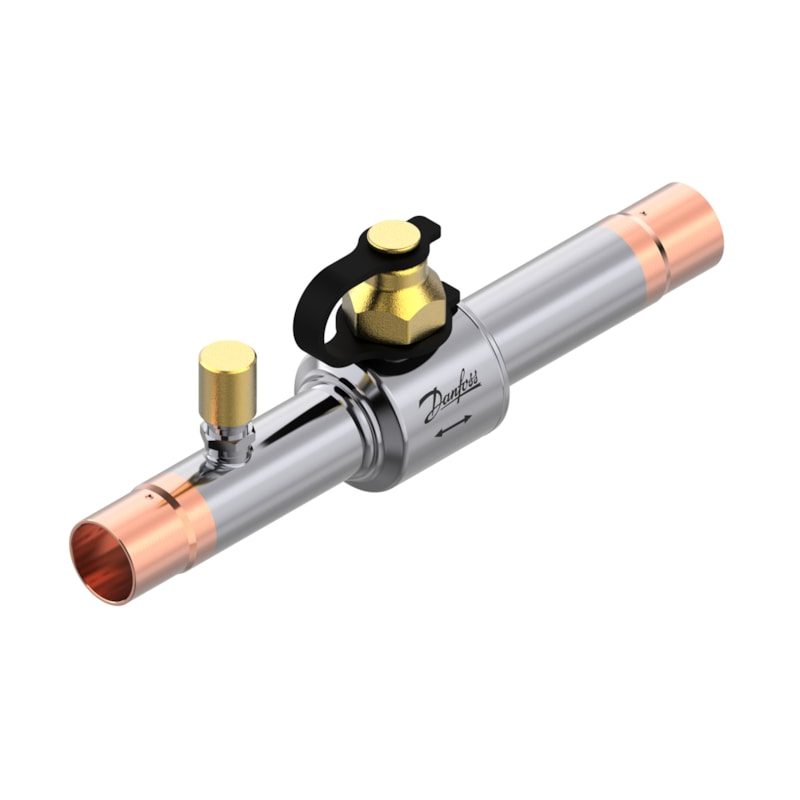

Manually operated shut-off ball valve for liquid, suction and hot-gas lines in refrigeration and air-conditioning systems. Bi-directional (valve orientation is unimportant). Solder ODF/ODF 3/4 in connections, with external access port and a cap strap that keeps the wire-seal cap with the valve — verify code and connection size before ordering. Image is the genuine Danfoss GBC datasheet product render (representative GBC-family body) shared across the GBC line.
