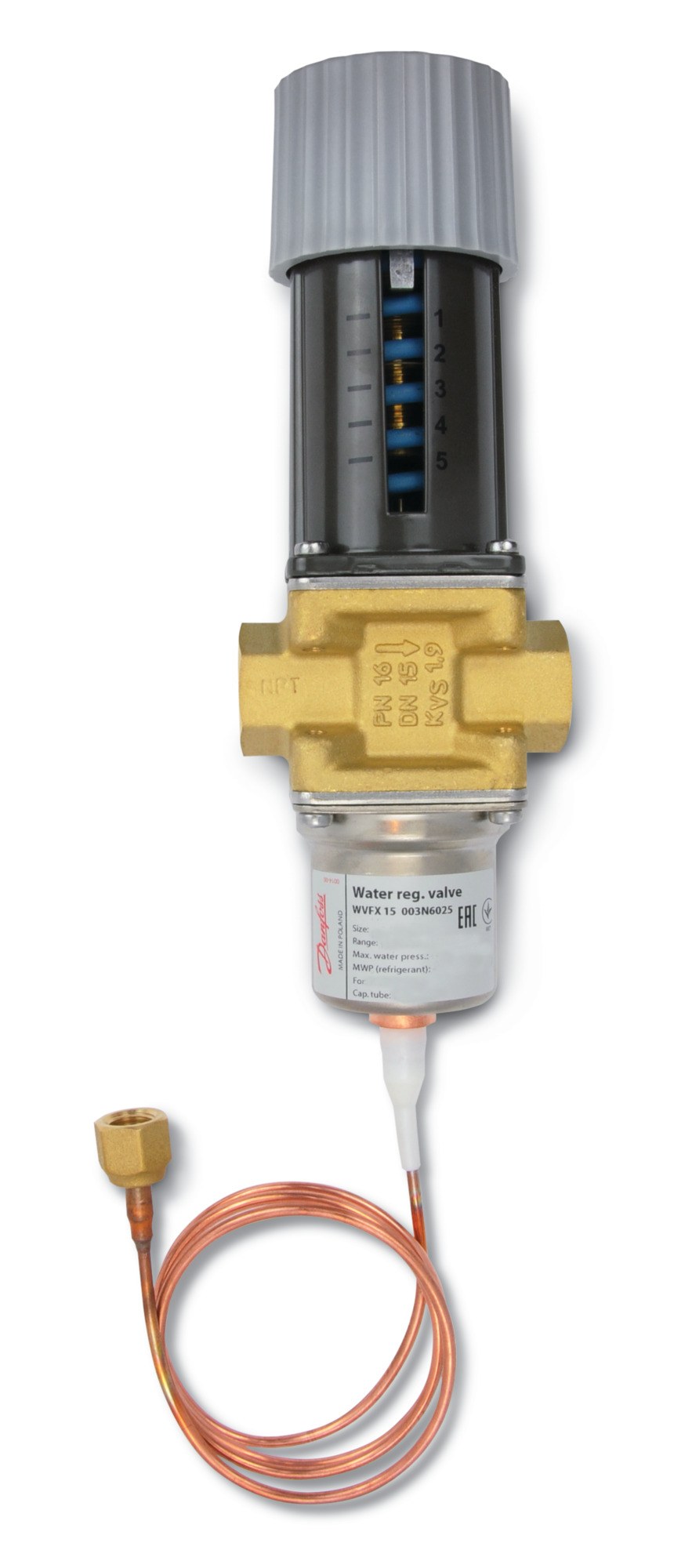

Danfoss WVFX 15 Water Regulating Valve G 1/2 in 15 – 29 003N2410
Danfoss · HVAC & Refrigeration · Water Regulating Valves
Danfoss WVFX 15 pressure-operated water regulating valve, OEM P/N 003N2410. Modulates cooling-water flow to a water-cooled condenser to hold the condensing pressure constant, and shuts the water off when the plant stops. The valve is opened by the condensing (refrigerant) pressure acting on a bellows and is closed by an adjustable spring; the setting is read on a 1–5 scale. High-pressure refrigerant version (refrigerant-side MWP 45.2 bar). Water connection G 1/2 in (ISO 228-1); refrigerant sensing connection 1/4 in / 6 mm SAE flare. Control pressure range 15 – 29 bar (232 – 421 psig); Kv 1.9 m³/h. Body brass. Max working pressure 16 bar (232 psig) water side; 45.2 bar (655 psig) refrigerant side. Media: Fresh water, neutral brine. Verify the setting range and refrigerant against the datasheet before ordering.
Specifications
- Part number
- 003N2410
- HS code
- 8481.80
- Material
- Valve housing hot-pressed brass; regulating seat and bellows stainless steel; adjustment spring steel
- Pressure rating
- 16 bar (232 psig) water side; 45.2 bar (655 psig) refrigerant side max working pressure
- Temperature range
- -25 °C to 130 °C
- Standard size
- WVFX 15
- Thread standard
- ISO 228-1
Compatibility
Fit in the cooling-water line to the condenser with the flow arrow in the direction of flow; the refrigerant sensing flare connects to the condenser/receiver. Set the closing pressure on the 1–5 scale to the required condensing pressure. Direct-acting (opens on rising pressure). Confirm code, water connection and setting range before ordering.
Standards
Approvals
