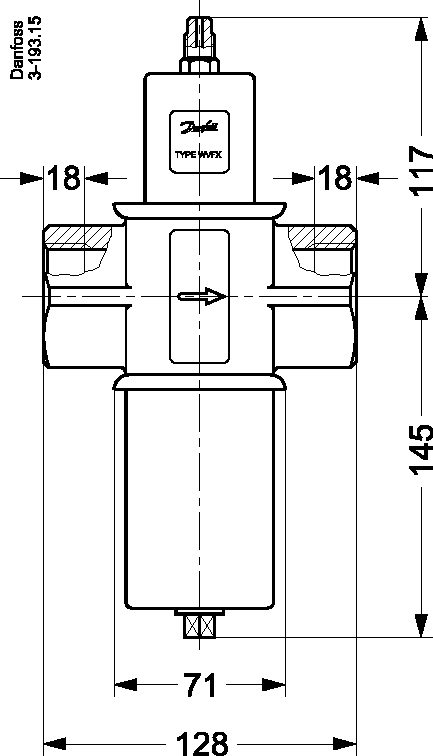

Danfoss WVFX 40 Water Regulating Valve G 1 1/2 in 4 – 17 003F1240
Danfoss · HVAC & Refrigeration · Water Regulating Valves
Danfoss WVFX 40 pressure-operated water regulating valve, OEM P/N 003F1240. Modulates cooling-water flow to a water-cooled condenser to hold the condensing pressure constant, and shuts the water off when the plant stops. The valve is opened by the condensing (refrigerant) pressure acting on a bellows and is closed by an adjustable spring; the setting is read on a 1–5 scale. Commercial version, cast iron body, G (ISO 228-1) water connection. Water connection G 1 1/2 in (ISO 228-1); refrigerant sensing connection 1/4 in / 6 mm SAE flare. Control pressure range 4 – 17 bar (58 – 247 psig); Kv 11 m³/h. Body cast iron. Max working pressure 10 bar (145 psig). Media: Fresh water, neutral brine. Verify the setting range and refrigerant against the datasheet before ordering.
Specifications
- Part number
- 003F1240
- HS code
- 8481.80
- Material
- Valve housing cast iron; regulating seat and bellows stainless steel; adjustment spring steel
- Pressure rating
- 10 bar (145 psig) water side; 24.1 bar (350 psig) refrigerant side max working pressure
- Temperature range
- -25 °C to 90 °C
- Standard size
- WVFX 40
- Thread standard
- ISO 228-1
Compatibility
Fit in the cooling-water line to the condenser with the flow arrow in the direction of flow; the refrigerant sensing flare connects to the condenser/receiver. Set the closing pressure on the adjustment spring to the required condensing pressure. Direct-acting (opens on rising pressure). Confirm code, water connection and setting range before ordering.
Standards
Approvals
