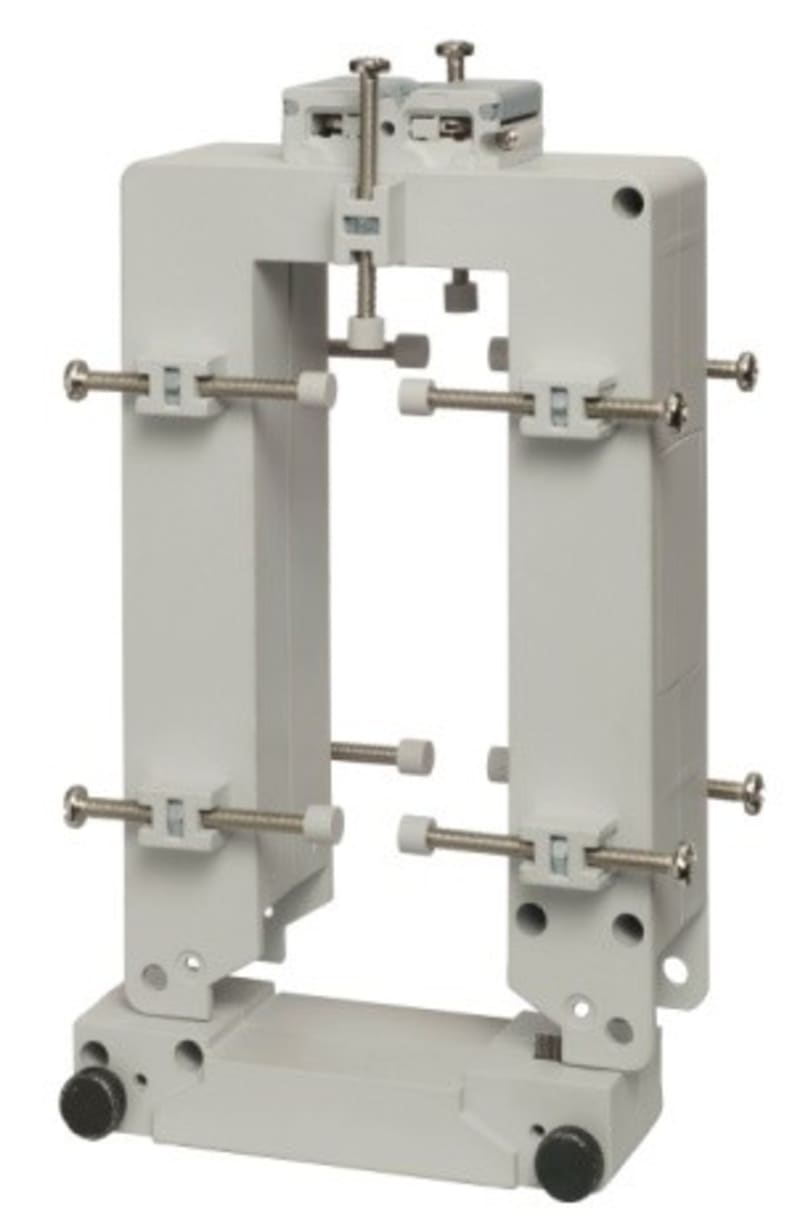

Split-core current transformer 1000 (CTD10S10005AXXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CTD10S10005AXXX Manufacturer description: Split core Current transformer 1000A/5A. CTD10S10005AXXX Divisible current transformer 1000/5A.
Technical Specifications
- Manufacturer part number (MPN)
- CTD10S10005AXXX
- Sales unit
- pcs
- El-nummer (NO)
- 8200614
- ETIM class
- SC002048
- Rated primary current
- 1000 A
- Output
- 5 A
- Hole diameter
- 51 mm (2.01 in)
- Max busbar width
- 51 mm (2.01 in)
- Accuracy class
- 1
- E-number (NO)
- 8200614
- Model
- Through-feed current converter
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 12 VA
- Overcurrent limiting factor
- FS 5
- Opening diameter
- 51 mm
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8504.31
Cross References
- SAP 1200453948
- Code 82514795
- El-nr 8200614
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Time Relay On-delay (DAA51CM24)
Carlo Gavazzi
Split-core current transformer 800A (CTD6S8005AXXX)
Carlo Gavazzi
SMB Analog input 3 x 0-10V
SHPINV324
Carlo Gavazzi
Current Transformer 100/5A (CTD2X1005AXXX)
Carlo Gavazzi
Split-core current transformer 2000 (CTD10S20005AXXX)
Carlo Gavazzi
Inductive Transmitter M8 IO-LINK (ICS08L45F20A2IO)
Carlo Gavazzi
Current Relay progr.bart 1/2/5MA 230V
DIB01CB235mA
Carlo Gavazzi
Current Transformer 3-Phase 20A
MP3020
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CTD10S10005AXXX?
- CTD10S10005AXXX can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is CTD10S10005AXXX.
- What is the HS code for CTD10S10005AXXX?
- The customs tariff (HS) code for CTD10S10005AXXX is 8504.31.
- Who manufactures CTD10S10005AXXX?
- CTD10S10005AXXX is a Carlo Gavazzi product in the Electrical Components range.
- Is a datasheet available for CTD10S10005AXXX?
- Yes — the CTD10S10005AXXX datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CTD10S10005AXXX?
- The minimum order quantity is 1.
- Is CTD10S10005AXXX available?
- Yes — CTD10S10005AXXX is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
