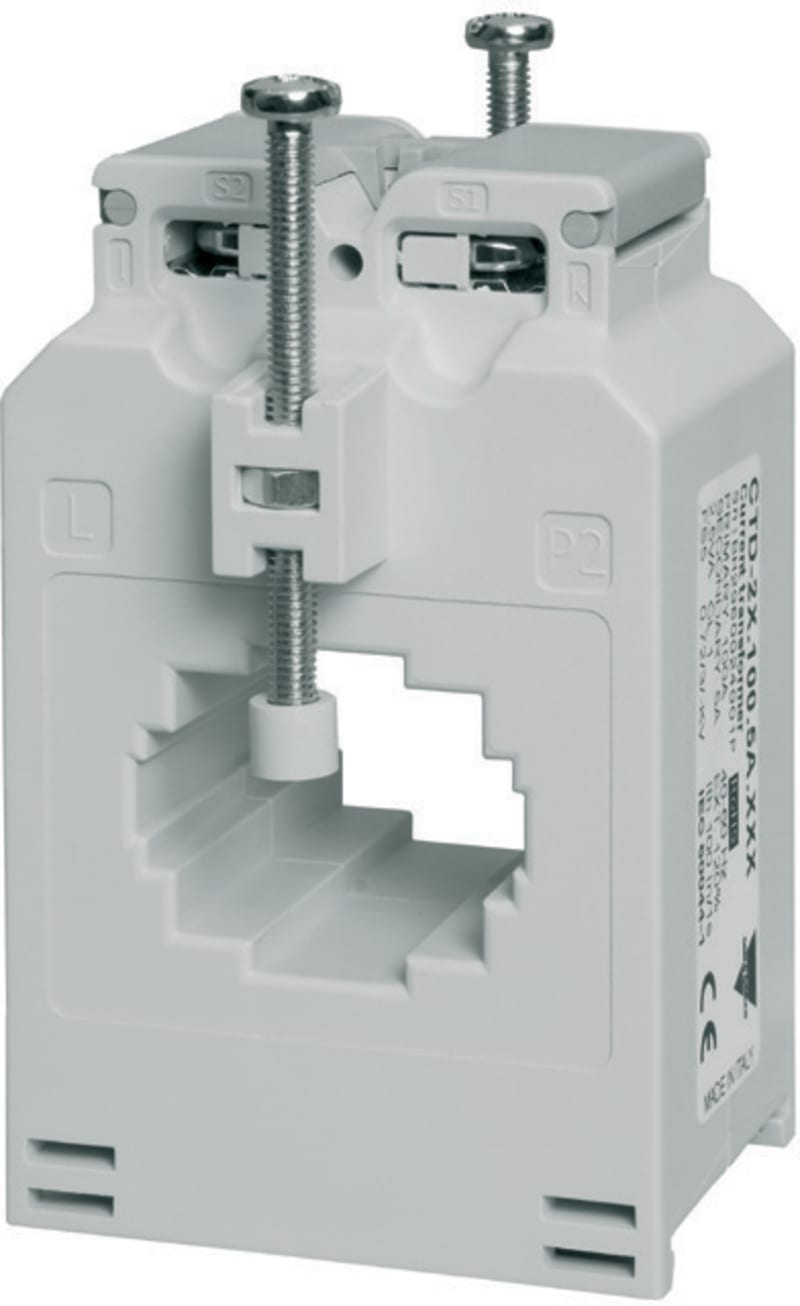

Current Transformer 100/5A (CTD2X1005AXXX)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CTD2X1005AXXX Manufacturer description: Solid core Current transformer 100A/5A. CTD2X1005AXXX Current transformer.
Technical Specifications
- Manufacturer part number (MPN)
- CTD2X1005AXXX
- EAN / GTIN
- 8030956039719
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Rated primary current
- 100 A
- Output
- 5 A
- Hole diameter
- 24 mm (0.94 in)
- Max busbar width
- 32 mm (1.26 in)
- Accuracy class
- 1
- E-number (NO)
- 8200449
- E-number (SE)
- 4272512
- Model
- Through-feed current converter
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 2.5 VA
- Overcurrent limiting factor
- FS 5
- Calibrated
- No
- Height opening
- 10 mm
- Width opening
- 30 mm
- Opening diameter
- 24 mm
- Number of primary inputs
- 1
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 8030956039719
- SAP 1000140875
- Code 8175636
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Split-core current transformer 2000 (CTD10S20005AXXX)
Carlo Gavazzi
Inductive Transmitter M8 IO-LINK (ICS08L45F20A2IO)
Carlo Gavazzi
Current Relay progr.bart 1/2/5MA 230V
DIB01CB235mA
Carlo Gavazzi
Current Transformer 3-Phase 20A
MP3020
Carlo Gavazzi
Motor Load Monitor cos. phi 380-480V (DWB02CM4810A)
Carlo Gavazzi
3-Phase soft starter 12A 230-400V (4115401)
Carlo Gavazzi
Inductive Transmitter M8 IO-LINK (ICS08S30N40A2IO)
Carlo Gavazzi
Auxiliary Relay 5A 4P 48VAC
RMIA4548VAC
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy CTD2X1005AXXX?
- CTD2X1005AXXX can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is CTD2X1005AXXX.
- What is the HS code for CTD2X1005AXXX?
- The customs tariff (HS) code for CTD2X1005AXXX is 9030.90.
- Who manufactures CTD2X1005AXXX?
- CTD2X1005AXXX is a Carlo Gavazzi product in the Electrical Components range.
- Is a datasheet available for CTD2X1005AXXX?
- Yes — the CTD2X1005AXXX datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for CTD2X1005AXXX?
- The minimum order quantity is 1.
- Is CTD2X1005AXXX available?
- Yes — CTD2X1005AXXX is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
