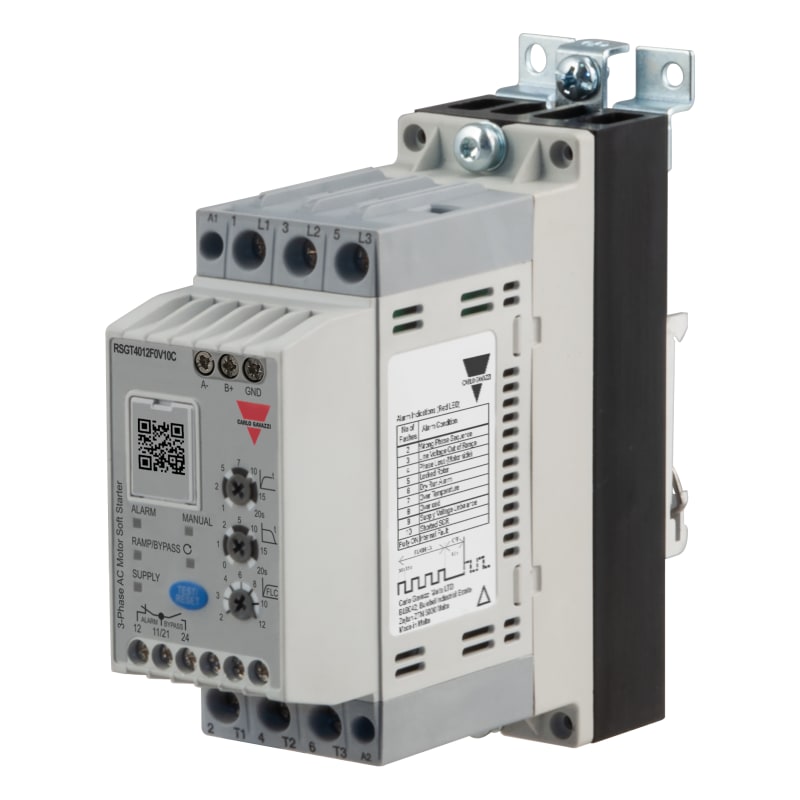

3-Phase soft starter 12A 230-400V (4115401)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi 4115401 3-phase soft starter 12A 230-400V For general drift.
Technical Specifications
- Manufacturer part number (MPN)
- 4115401
- Sales unit
- pcs
- El-nummer (NO)
- 4115401
- ETIM class
- SC000640
- Voltage
- 230-400 V
- Rated current
- 12 A
- Function
- Single direction
- Degree of protection (IP)
- IP20
- Release class
- CLASS 10
- Rated operation current Ie at 40 °C Tu
- 12 A
- Rated power three-phase motor, inline, at 230 V
- 3 kW
- Rated power three-phase motor, inline, at 400 V
- 5.5 kW
- Rated surrounding temperature without derating
- 40 °C
- Voltage type for actuating
- AC/DC
Standards & Compliance
- HS Code
- 8503.00
Cross References
- 5350035435854
- El-nr 4115401
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi

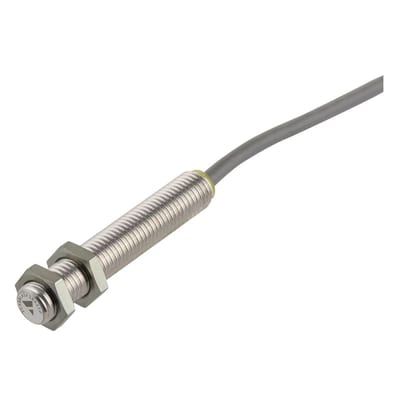

Inductive Transmitter M8 IO-LINK (ICS08S30N40A2IO)
Carlo Gavazzi

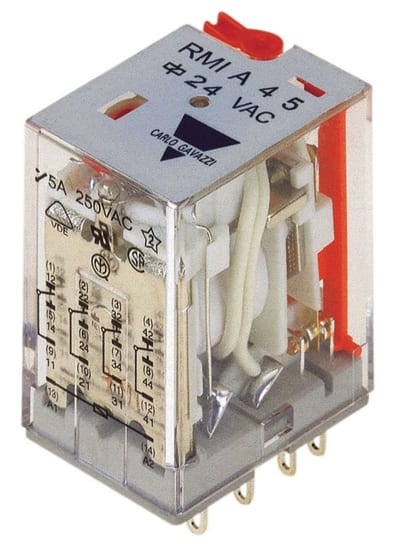

Auxiliary Relay 5A 4P 48VAC
RMIA4548VAC
Carlo Gavazzi

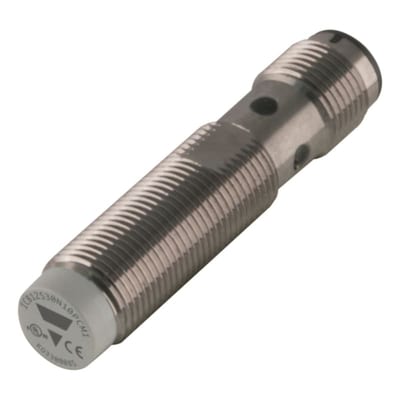

Inductive transmitter M12 PNP NC plug connection (ICB12S30N10PCM1)
Carlo Gavazzi
Split-core current transformer 1000 (CTD9S10005AXXX)
Carlo Gavazzi

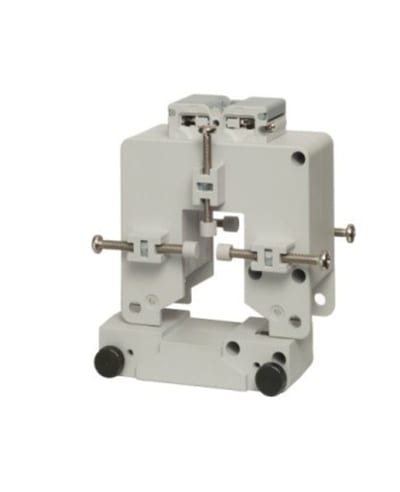

Split-core current transformer 150A (CTD5S1505AXXX)
Carlo Gavazzi

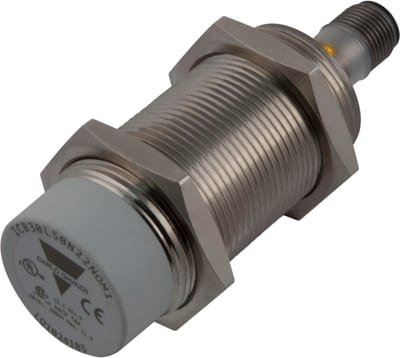

Inductive transmitter M30 PNP NC plug connection (ICB30L50N15PCM1)
Carlo Gavazzi

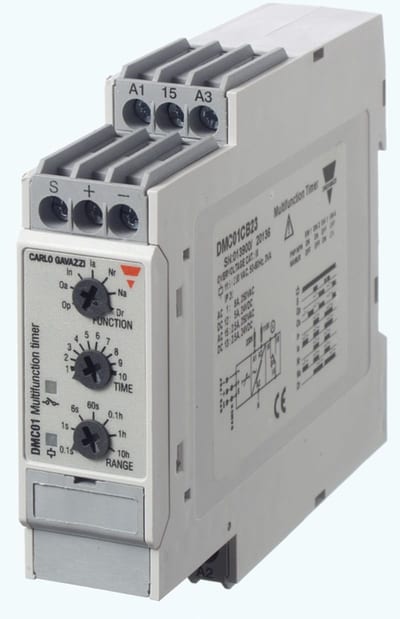

Time relay multifunk. 1XRELE 24VDC 22.5mm
DMC01C724
Carlo Gavazzi

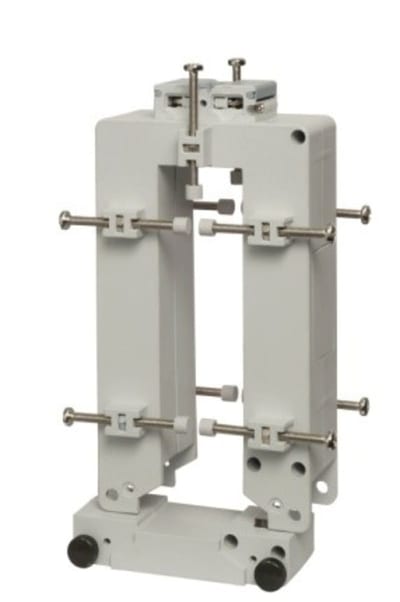

Split-core current transformer 800A (CTD9S8005AXXX)
