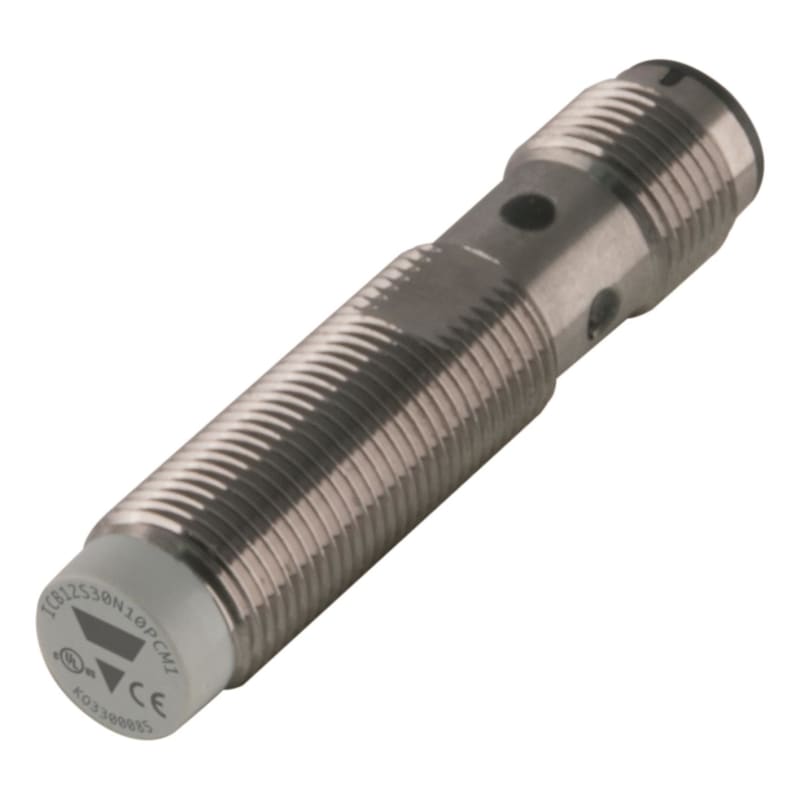

Inductive transmitter M12 PNP NC plug connection (ICB12S30N10PCM1)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi ICB12S30N10PCM1 Manufacturer description: Inductive proximity sensor, M12 Nickel-Plated Brass, M12 plug, Sn 10mm, Non-Flush mount, Short body, PNP NC output, Supply voltage 10-36Vdc, Max output current 200 mA, Max switching frequency 2 kHz, Operating temperature -25C - +70C, IP67. Inductive transmitter M12 PNP NC plug connection, unshielded version length 30mm. Sensing distance 10mm.
Technical Specifications
- Manufacturer part number (MPN)
- ICB12S30N10PCM1
- EAN / GTIN
- 8030956075168
- Sales unit
- pcs
- Rated operating distance
- 10 mm
- Installation type
- Non-flush
- Diameter
- M12
- Output type
- PNP
- Output function
- Normally Closed (NC)
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Metal
- Rated power supply
- 10 V ... 36 V
- E-number (NO)
- 4336936
- Length of sensor
- 54 mm
- Diameter sensor
- 12 mm
- Mechanical mounting condition for sensor
- Not flat
- Switching distance
- 10 mm
- Suitable for safety functions
- No
- Type of switch function
- Breaker contact (NC)
- Type of switching output
- PNP
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic Target
- Type of interface
- None
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- Coating housing
- Nickel-plated
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 2000 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Interference resistance to magnetic fields
- Immune against magnetic AC-field
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 8030956075168
- SAP 1200292768
- Code 82263296
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
Split-core current transformer 1000 (CTD9S10005AXXX)
Carlo Gavazzi
Split-core current transformer 150A (CTD5S1505AXXX)
Carlo Gavazzi
Inductive transmitter M30 PNP NC plug connection (ICB30L50N15PCM1)
Carlo Gavazzi
Time relay multifunk. 1XRELE 24VDC 22.5mm
DMC01C724
Carlo Gavazzi
Split-core current transformer 800A (CTD9S8005AXXX)
Carlo Gavazzi

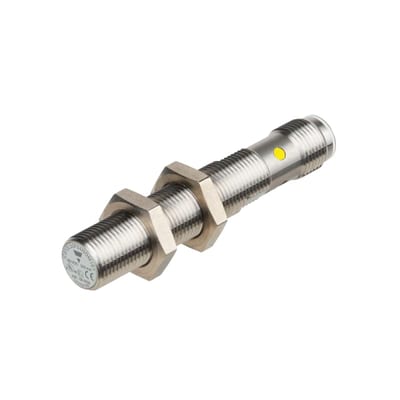

IND Transmitter M12 NPN NO Shielded PLUG
4316481
Carlo Gavazzi

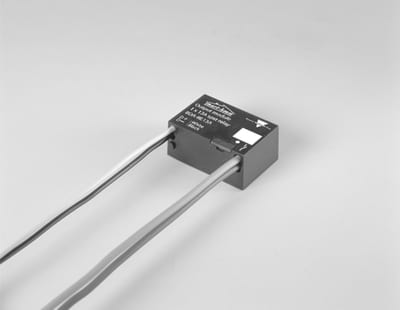

Smart-house Decentralised Relay Output 13 A
BDA-RE13A
Carlo Gavazzi

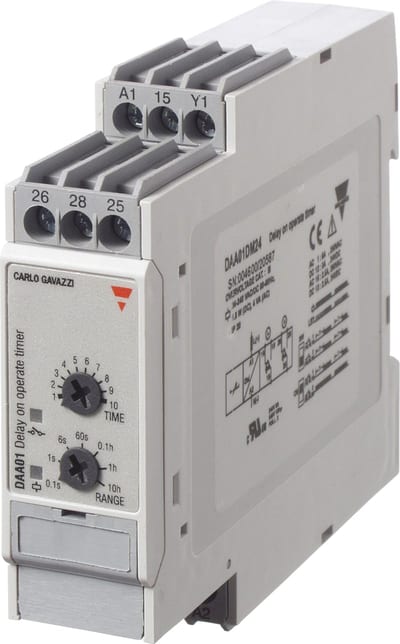

Time Relay On-delay (DAA01DM24)
