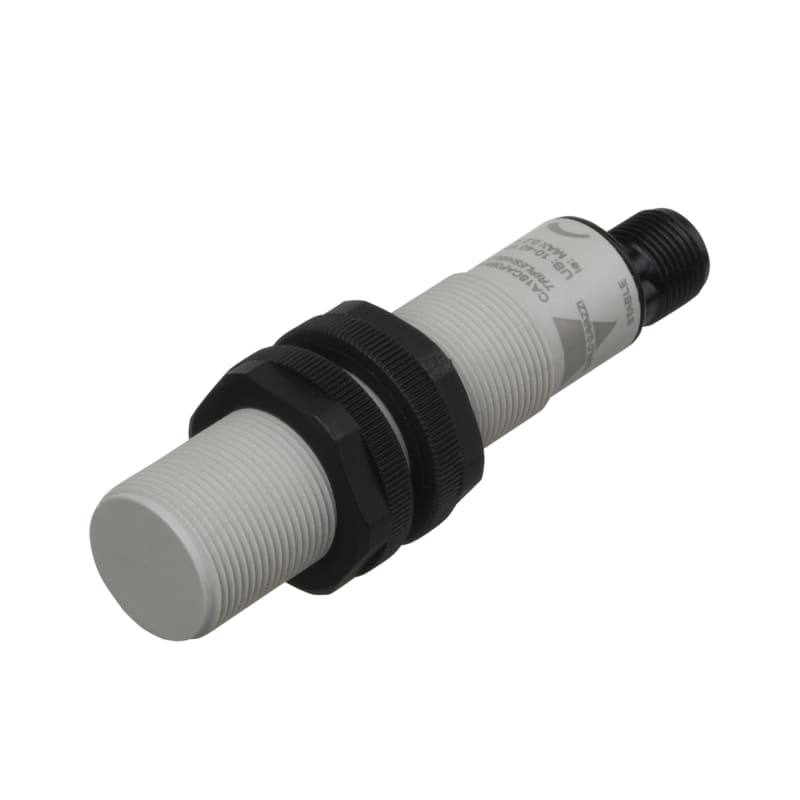

M18 Capacitive transmitter IO link with M12 plug (CA18CAF08BPM1IO)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi CA18CAF08BPM1IO Manufacturer description: Capacitive Proximity Sensor, Flush mountable, Sensing Range 8mm, Adjustable 2-10mm, Power Supply 10-40VDC, NPN/PNP Output, N.O./N.C., IO-Link, Connector M12, Housing M18 x 70mm, 4th Generation Tripleshield, Improved EMC performances, ECOLAB, IP67 IP69K. M18 Capacitive transmitter with IO link communication. M12 plug. Programmable function NPN/PNP, NO/NC etc.
Technical Specifications
- Manufacturer part number (MPN)
- CA18CAF08BPM1IO
- EAN / GTIN
- 5709870393995
- Sales unit
- pcs
- Rated operating distance
- 8 mm
- Installation type
- Flush
- Diameter
- 18 mm
- Output type
- PNP/NPN
- Output function
- Configurable
- Connection type
- Connector M12
- Housing type
- Cylindrical, threaded barrel
- Housing material
- Plastic
- Rated power supply
- 12 V ... 36 V
- Degree of protection
- IP67, IP68, IP69K
- E-number (NO)
- 4368505
- E-number (SE)
- 3832439
- Length of sensor
- 70 mm
- Diameter sensor
- 18 mm
- Mechanical mounting condition for sensor
- Concise
- Switching distance
- 8 mm
- Type of switch function
- Programmable/configurable
- Type of switching output
- PNP/NPN
- Type of electric connection
- Connector M12
- Number of semiconductor outputs with signalling function
- 1
- Number of protected semiconductor outputs
- 1
- Type of actuation
- Metallic and non-metallic target
- Type of interface for safety communication
- None
- Construction type housing
- Cylinder, screw-thread
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- None
- Max. output current at protected output
- 200 mA
- Voltage type
- DC
- Switching frequency
- 50 Hz
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Country of origin
- Lithuania
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870393995
- SAP 1200738471
- Code 83870926
Product Documentation
