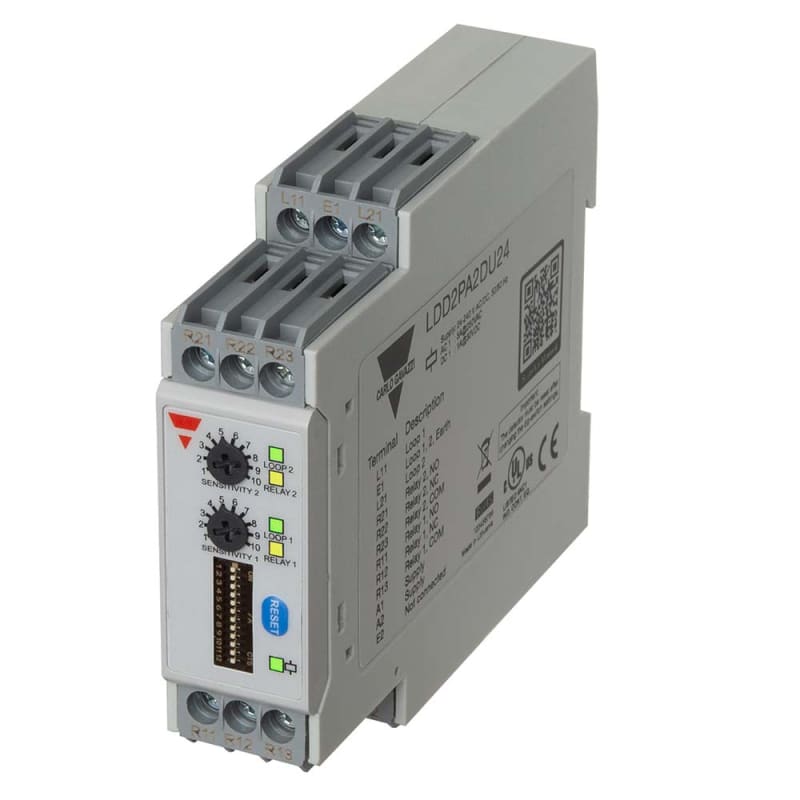

Carlo Gavazzi Dual-Channel Inductive Loop Detector 24-240 V AC/DC

Carlo Gavazzi LDD2PA2DU24 is a dual-channel inductive loop detector for DIN-rail mounting, supplied at 24-240 V AC/DC. It reads two independent loops in the 20 uH to 1000 uH range with adjustable sensitivity from 0.01 to 1 per cent and provides Automatic Sensitivity Boost together with manual or automatic frequency tuning across four channels. The IP20 unit is used in access control, parking and traffic applications to detect vehicles crossing a buried inductive loop.

Manufacturer part number (MPN)

LDD2PA2DU24

EAN / GTIN

5709870396187

Sales unit

pcs

Number of input probes

2

Adjustable sensitivity

Yes

Min on-delay time

0.01 s

Max on-delay time

1 s

Rated operating voltage

24 V ... 240 V

Connection type

Screw terminals

Product width

22.5 mm

E-number (NO)

4367690

Type of electric connection

Screw connection

Voltage type for actuating

AC/DC

With detachable clamps

No

Number of inputs for electrodes

2

Min. adjustable operate delay time

0 s

Min. adjustable off-delay time

0 s

Number of contacts as change-over contact

2

Physical measurement principle

Inductive

Cascadable

No

Width

22 mm

Height

84 mm

Depth

99 mm

Country of origin

Italy

HS Code

9030.90
