Monitoring Relay

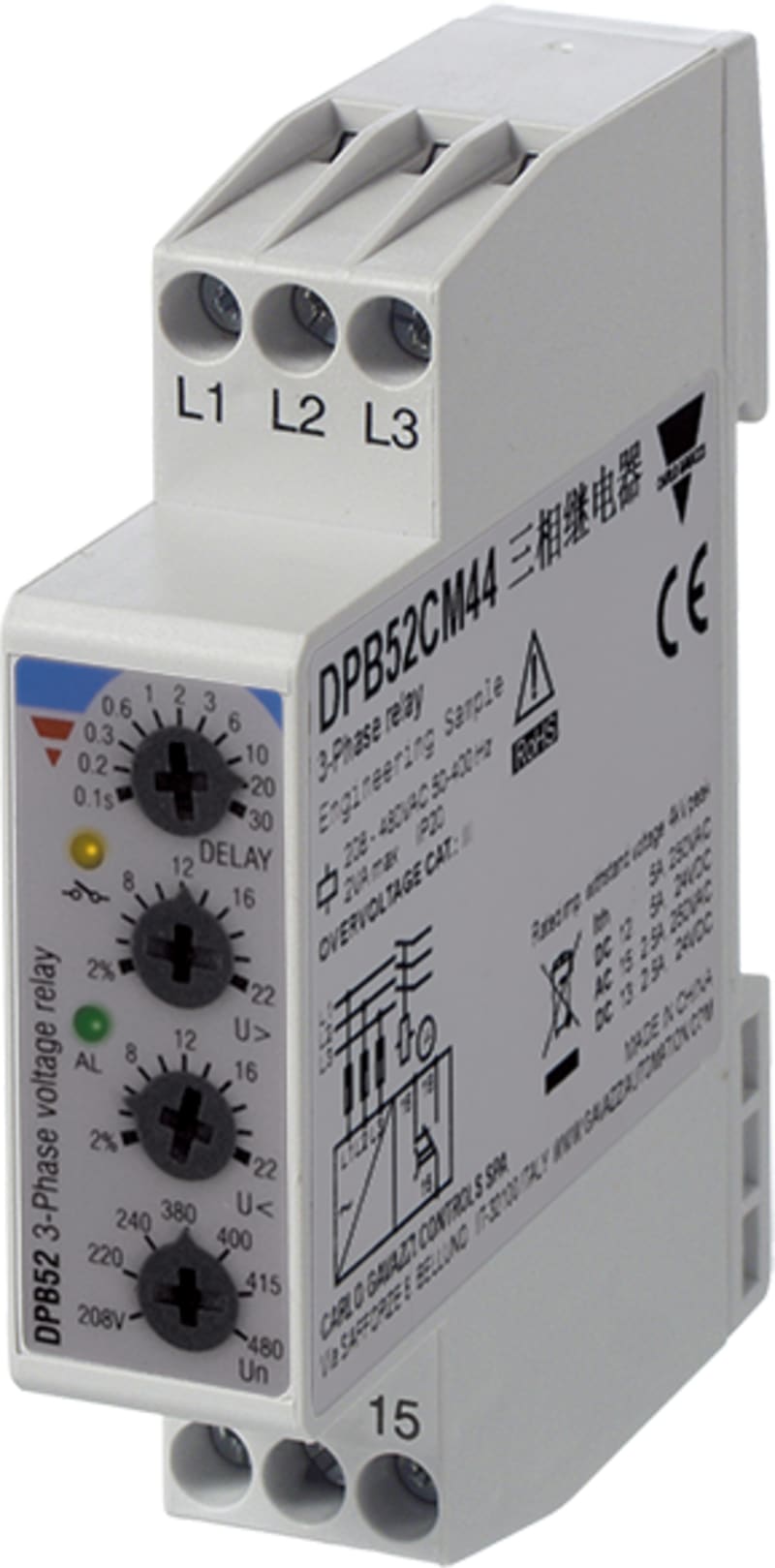

Carlo Gavazzi DPB52CM44 Manufacturer description: 3-phase monitoring relay for phase loss, sequence, over and undervoltage, nominal range 208-480 V AC, delay on alarm 0.1-30 s, SPDT relay output, high harmonic immunity, 17.5 mm DIN-rail housing. DPB52CM44 Phase monitoring relay.

Manufacturer part number (MPN)

DPB52CM44

EAN / GTIN

8030956083378

Sales unit

pcs

Mounting

Mini DIN-rail

Function

Phase loss; Phase sequence; Overvoltage; Undervoltage

3-phase voltage range

208-240 Vac; 208-480 Vac; 380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

1 relay

Time delay

Delay on alarm

Approvals, marks, declarations

for Europe; for North America; for China

Setting method through NFC

No

E-number (NO)

4367698

Type of electric connection

Screw connection

Voltage type for actuating

AC

Voltage measuring range

125–624 V

Min. adjustable delay-on energization time

0.1 s

Max. permitted delay-on energization time

30 s

Min. adjustable off-delay time

0 s

Number of contacts as change-over contact

1

Width

17.5 mm

Height

81 mm

Depth

67.2 mm

Country of origin

China

HS Code

9030.90

• EAN 8030956083378
• SAP 1200116310
• Code 81969153
