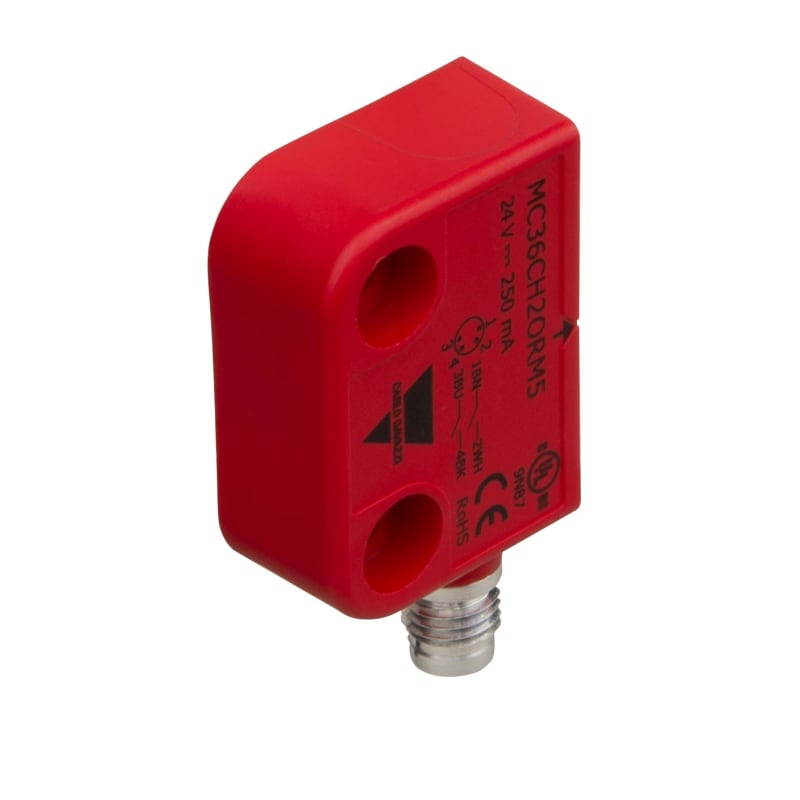

Carlo Gavazzi Safety Magnetic Sensor 2NO Right-Exit M8 Plug
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi MC36CH2ORM5 safety magnetic sensor with a rectangular plastic housing and M8 plug (right exit). 2NO reed contact outputs, max switching voltage 12/24 V ac/dc, max switching current 250 mA, max switching power 6 W. Operating temperature -25 to +80 degrees C, IP69K protection, PL e per EN ISO 13849-1.
Technical Specifications
- Manufacturer part number (MPN)
- MC36CH2ORM5
- EAN / GTIN
- 5709870398402
- Sales unit
- pcs
- Switch ON distance
- 5 mm
- Switch OFF distance
- 15 mm
- Output type
- Reed switch
- Max switching current
- 250 mA
- Connection type
- Connector M8
- Housing type
- Rectangular
- Degree of protection
- IP69K
- E-number (NO)
- 4367685
- Number of contact energized outputs with signalling function
- 2
- Type of actuation
- Magnet
- Type of electric connection
- Connector M8
- Type of switching output
- Dry reed contact
- Width sensor
- 26 mm
- Height of sensor
- 13 mm
- Length of sensor
- 36 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Coating housing
- Uncoated
- Protected switch distance OFF
- 15 mm
- Protected switch distance ON
- 5 mm
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 0.25 mA
- Min. output current
- 0 mA
- Voltage type
- AC/DC
- Switching distance
- 5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870398402
- SAP 1200583121
- Code 82959159
Product Documentation
