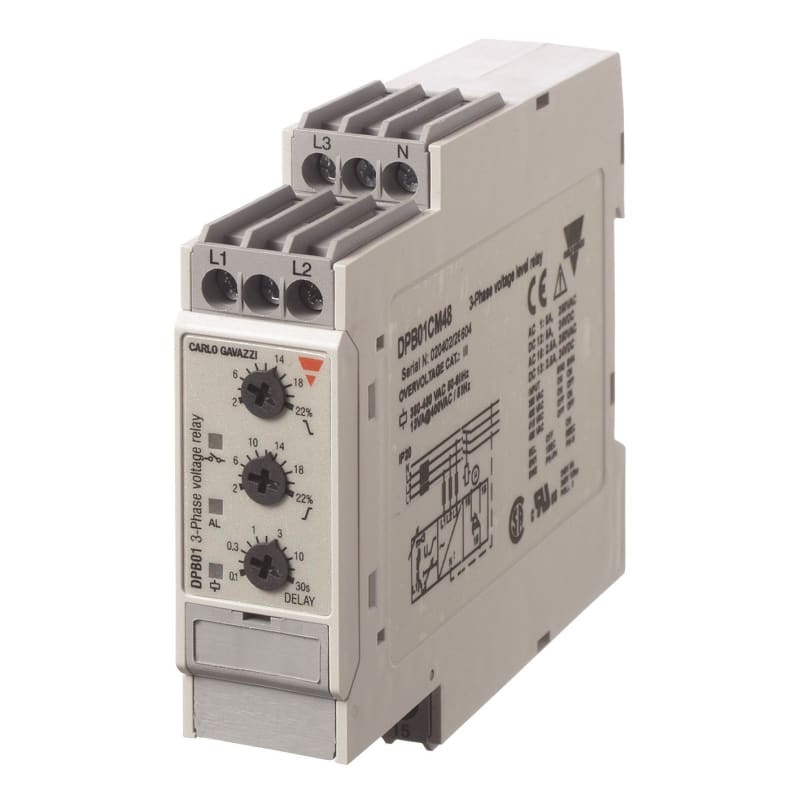

3-Phase mains monitor over-/undervoltage 208-240V

Mains monitoring relay 3-phase AC. Manufacturer description: 3-phase monitoring relay for phase loss, over or undervoltage, nominal range 380-480 V AC, delay on alarm 0.1-30 s, SPDT relay output, regenerated voltage detection, 22.5 mm DIN-rail housing. Over-/undervoltage + phase break. For DIN-rail.

Manufacturer part number (MPN)

DPB01CM48N

EAN / GTIN

8030956034646

Sales unit

pcs

Mounting

Industrial DIN-rail

Function

Phase loss; Overvoltage; Undervoltage

3-phase voltage range

380-480 Vac; 440-480 Vac

Frequency range

50-60 Hz

Output

1 relay

Time delay

Delay on alarm

Approvals, marks, declarations

for Europe; for North America; for China; for Australia

Setting method through NFC

No

E-number (NO)

4360114

External power supply required

No

Rated switch current

8 A

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

With detachable clamps

No

Rated control supply voltage AC 50 Hz

380–480 V

Rated control supply voltage AC 60 Hz

380–480 V

Voltage type for actuating

AC

Phase sequence monitoring

No

Phase failure detection

Yes

Function under voltage detection

Yes

Function overvoltage detection

Yes

Phase imbalance monitoring

No

Voltage measuring range

380–480 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time:

HS Code

9030.90

• EAN 8030956034646
• SAP 1000140999
• Code 8645642
