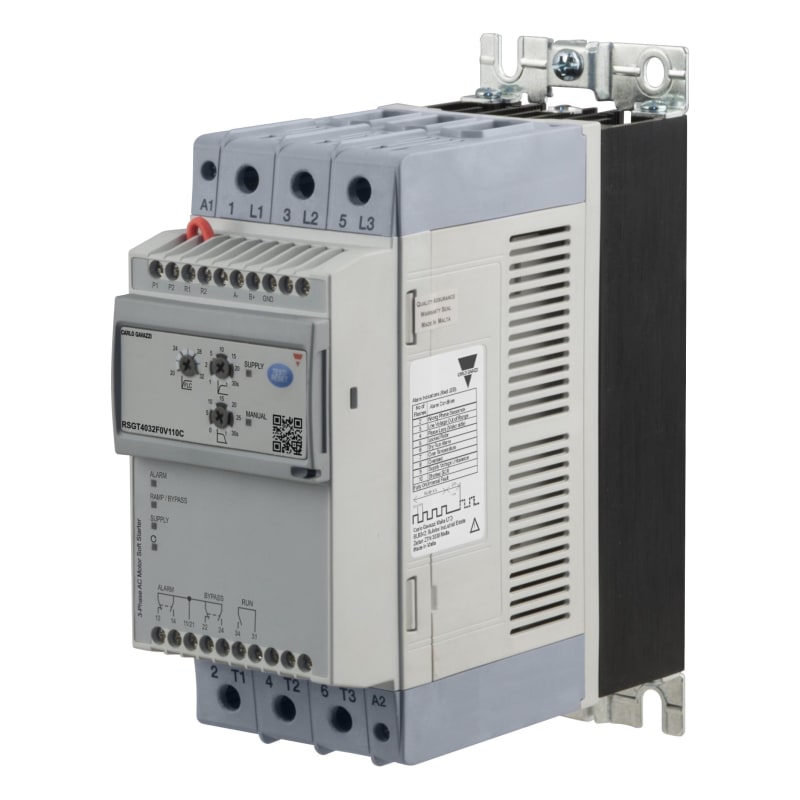

3-Phase soft starter 32A 230-400V (RSGT4032F0V110C)
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi RSGT4032F0V110C Manufacturer description: 3 phase soft starter for induction motors, Operating voltage (Ue): 220 - 400 Vac, Rated current (Ie): 32 Aac, Control voltage (Uc): 24 Vac/dc, DIN rail/Panel mount, Supply voltage (Us): Internal, 3-phase control, Class 10 overload, Modbus. 3-phase soft starter 32A 230-400V For general drift.
Technical Specifications
- Manufacturer part number (MPN)
- RSGT4032F0V110C
- EAN / GTIN
- 5350035435212
- Sales unit
- pcs
- Rated operation current Ie at 40C Tu
- 32 A
- Rated operating voltage Ue
- 187 V ... 440 V
- Rated power three-phase motor, inline, at 230 V
- 9 kW
- Rated power three-phase motor, inline, at 400 V
- 15 kW
- Rated control supply voltage Us at AC 50HZ
- 21.6 V ... 26.4 V
- Rated control supply voltage Us at DC
- 21.6 V ... 26.4 V
- Internal bypass
- Yes
- Product Width
- 75 mm
- Product Height
- 205 mm
- Product Depth
- 180 mm
- E-number (NO)
- 4115407
- Function
- Single direction
- Degree of protection (IP)
- IP20
- Release class
- CLASS 10
- Rated surrounding temperature without derating
- 40 °C
- Voltage type for actuating
- AC/DC
Standards & Compliance
- HS Code
- 8503.00
Cross References
- EAN 5350035435212
- SAP 1200655570
- Code 83083991
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
3-Phase nettvakt multifunction 208-240V (DPC01DM23)
Carlo Gavazzi
3-Phase Soft starter (RSBD4032EV61HP)
Carlo Gavazzi

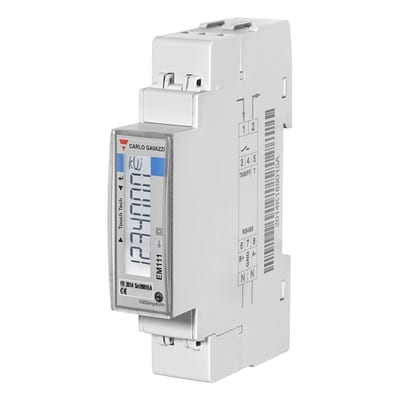

Meter 1-Phase 230VAC (5A) with RS485
EM111DINAV51XS1X
Carlo Gavazzi

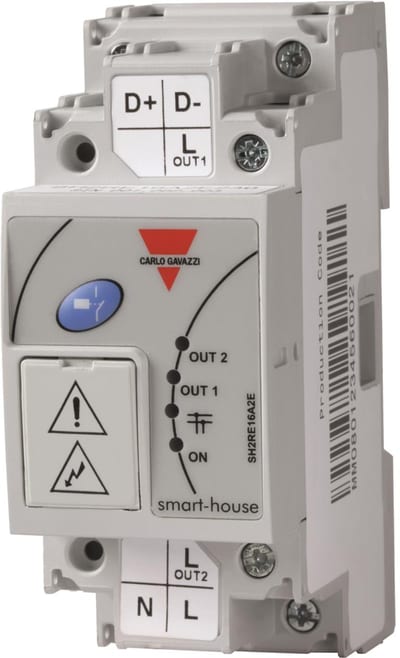

SMH 2X16A Relay with kWh Meter
SH2RE16A2E230
Carlo Gavazzi
3 pole 25A with auxiliary contact
SDS325AUX
Carlo Gavazzi

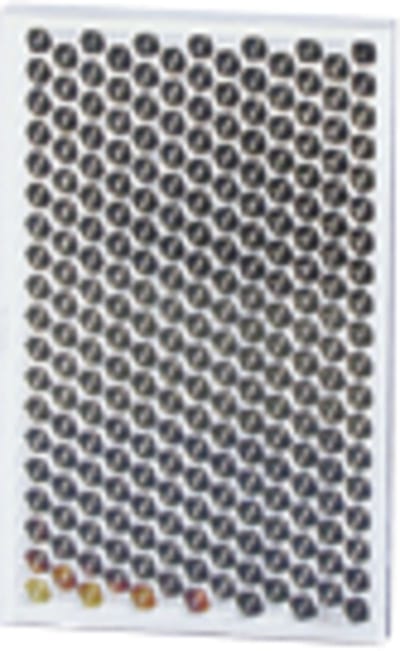

Reflector 54 X 80mm (ER5080)
Carlo Gavazzi
Motor Load Monitor cos. phi 208-240V (DWB02CM2310A)
Carlo Gavazzi

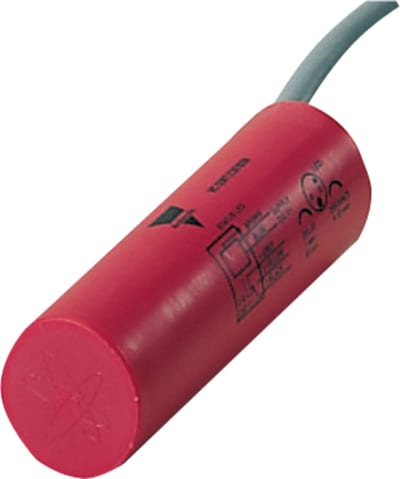

KAP.Transmitter Ø32,Relay,Multi (VC12RN924)
