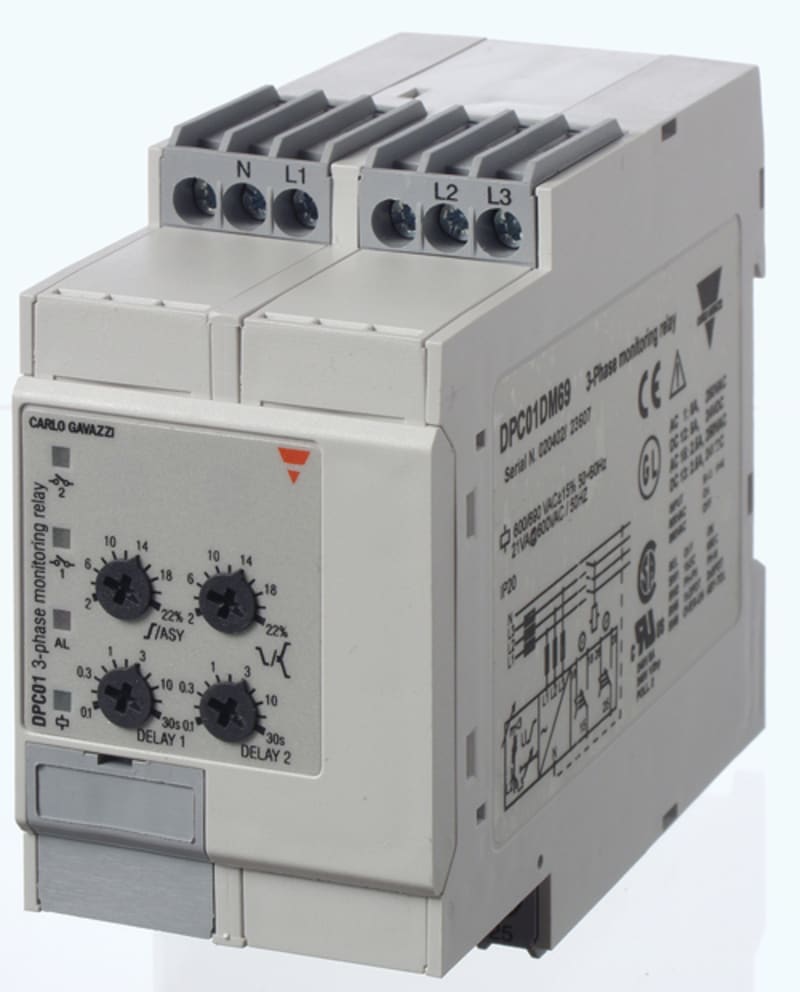

3-Phase nettvakt multifunction 208-240V (DPC01DM23)

Carlo Gavazzi DPC01DM23 Manufacturer description: 3-phase monitoring relay for phase loss, sequence, asymmetry, tolerance, over and undervoltage, nominal range 208-240 V AC, delay on alarm 0.1-30 s, 2 SPDT relay outputs, 45 mm DIN-rail housing. DPC01DM23 Phase monitoring relay.

Manufacturer part number (MPN)

DPC01DM23

EAN / GTIN

8030956000603

Sales unit

pcs

Mounting

Industrial DIN-rail

Function

Phase loss; Phase sequence; Overvoltage; Undervoltage; Voltage asymmetry

3-phase voltage range

208-240 Vac

Frequency range

50-60 Hz

Output

2 relays

Time delay

Delay on alarm

Approvals, marks, declarations

for Europe; for North America; for China; for Australia

Setting method through NFC

No

E-number (NO)

4367516

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

208–240 V

Rated control supply voltage AC 60 Hz

208–240 V

Voltage type for actuating

AC

Voltage measuring range

208–240 V

Min. adjustable delay-on energization time

0 s

Min. adjustable off-delay time

0.1 s

Max. permitted off-delay time

30 s

Number of contacts as change-over contact

2

Width

45 mm

Height

80 mm

Depth

99.5 mm

Country of origin

Italy

HS Code

9030.90

• EAN 8030956000603
• SAP 1000140302
• Code 848645
