Meter 1-Phase 230VAC (5A) with RS485
Pricing
Request a quote
We reply within 24 hours
Product Description

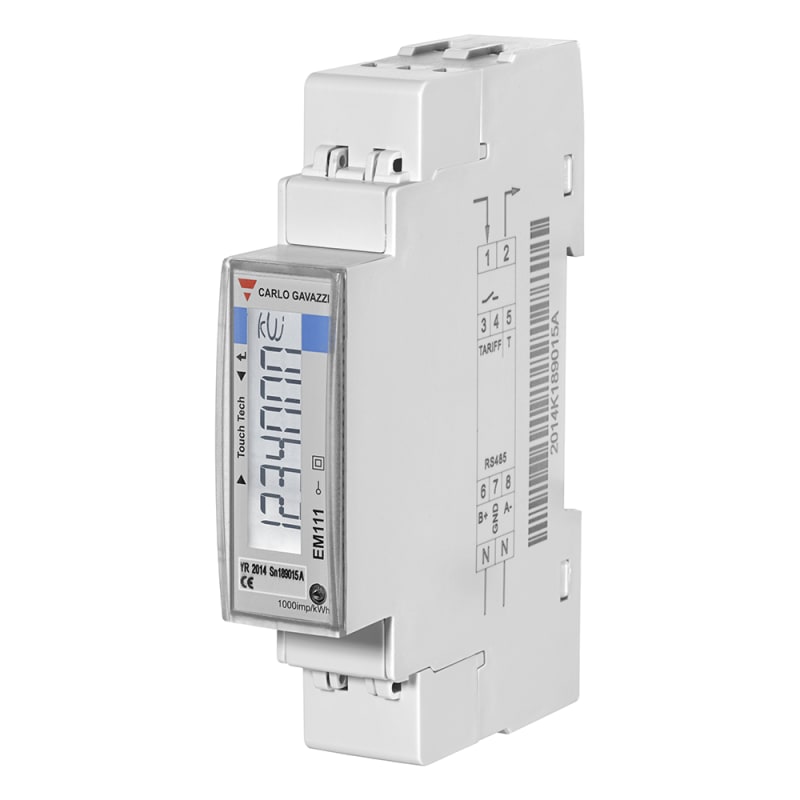

Carlo Gavazzi EM111DINAV51XS1X Manufacturer description: Single-Phase Energy analyzer, 230 to 277 V L-N, 5 (6) A, RS485 Modbus RTU. Energy meter 1-phase for measurement via current transformer (5A). With RS485 Modbus grensesnitt.
Technical Specifications
- Manufacturer part number (MPN)
- EM111DINAV51XS1X
- EAN / GTIN
- 8030956087000
- Sales unit
- pcs
- Voltage inputs
- 1-phase (2-wire), 230 V L-N
- Frequency
- 50Hz; 60Hz
- Current inputs
- 5 A current transformers
- Energy metering
- Consumption and generation
- Communication port and protocol
- RS485 (Modbus RTU)
- Power supply
- Self power supply
- Approvals, marks, declarations
- CE (Europe); UKCA (UK)
- E-number (NO)
- 8201163
- Mounting method
- DRA (DIN-rail adaptor)
- Width
- 17.8 mm
- Model
- Measurement transformer
- Height
- 91.5 mm
- Depth
- 60 mm
- Suitable for
- Purchase/supply
- Type of indication
- Digital
- Max. current (Imax)
- 300 A
- Width in number of modular spacings
- 1
- Type of meter
- Electronic
- Degree of protection (IP)
- IP20
- Type of interface
- Modbus
- Energy type
- Effective power and reactive power
- Tariff type
- Two-tariff
- Tariff control
- External
- Approval
- Measuring Instruments Directive
- Pulse output
- None
- Accuracy class
- B
- Pole type
- Three conductor
- Nominal current (In)
- 5 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9028.30
Cross References
- EAN 8030956087000
- SAP 1200714237
- Code 83813590
Product Documentation
