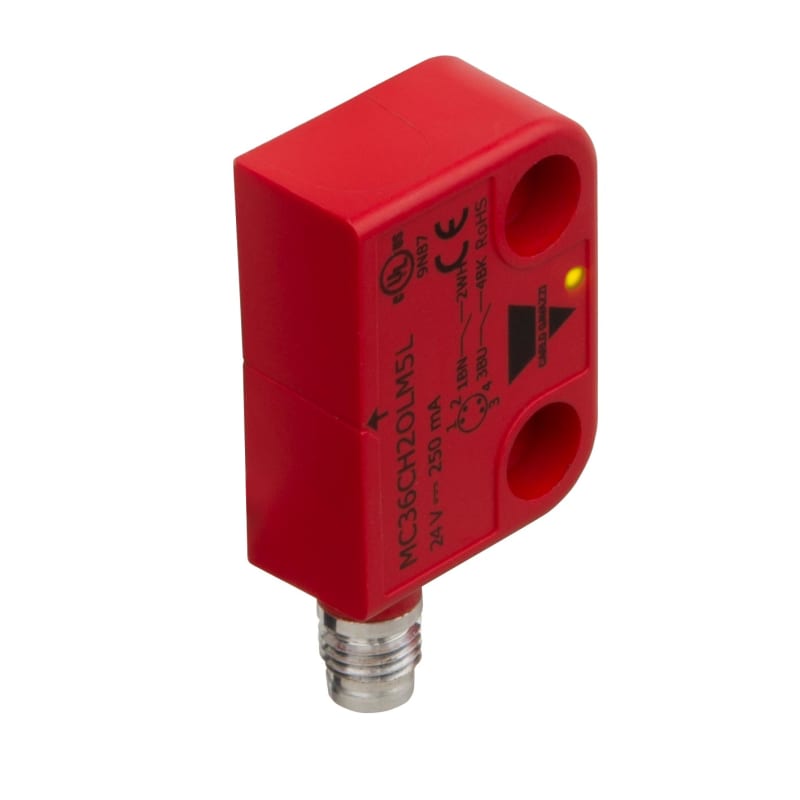

Magnetic Switch VE. 2NO Plug LED
Pricing
Request a quote
We reply within 24 hours
Product Description
Carlo Gavazzi MC36CH2OLM5L Manufacturer description: Safety magnetic sensor with LED, Rectangular plastic housing, M8-plug, Left Exit, 2NO output reed contacts, Max switching voltage 12/24 Vac/dc, Max switching current 250mA, Max switching power 6W, Operating temp. -25.+80 C, IP67. Safety magnet sensor MC36CH2OLM5L.
Technical Specifications
- Manufacturer part number (MPN)
- MC36CH2OLM5L
- EAN / GTIN
- 5709870398389
- Sales unit
- pcs
- Switch ON distance
- 5 mm
- Switch OFF distance
- 15 mm
- Output type
- Reed switch
- Max switching current
- 250 mA
- Connection type
- Connector M8
- Housing type
- Rectangular
- Degree of protection
- IP67
- E-number (NO)
- 4367682
- Number of contact energized outputs with signalling function
- 2
- Type of actuation
- Magnet
- Type of electric connection
- Connector M8
- Type of switching output
- Dry reed contact
- Width sensor
- 26 mm
- Height of sensor
- 13 mm
- Length of sensor
- 36 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Housing material
- Plastic
- Coating housing
- Uncoated
- Protected switch distance OFF
- 15 mm
- Protected switch distance ON
- 5 mm
- SIL according to IEC 61508
- None
- Performance level according to EN ISO 13849-1
- Level e
- Max. output current at protected output
- 0.25 mA
- Min. output current
- 0 mA
- Voltage type
- AC/DC
- Switching distance
- 5 mm
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 9030.90
Cross References
- EAN 5709870398389
- SAP 1200583118
- Code 82959174
Product Documentation
More from Carlo Gavazzi
Carlo Gavazzi
SMH wireless magnetsensor + ing
SHDWWISENIN1
Carlo Gavazzi
Modular contactor (22.32.0.230.4340)
Carlo Gavazzi
SSR 230VAC/75A 3-32VDC
RM1A23D75
Carlo Gavazzi
Photocell IO link REFL 6M cable IP69K SS
PD30ETRR60BPA2IO
Carlo Gavazzi
Room sensor for measurement of CO2, temp and Rh% (5470089)
Carlo Gavazzi
3-Phase soft starter 32A 230-400V (RSGT4032F0V110C)
Carlo Gavazzi
3-Phase nettvakt multifunction 208-240V (DPC01DM23)
Carlo Gavazzi
3-Phase Soft starter (RSBD4032EV61HP)
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy MC36CH2OLM5L?
- MC36CH2OLM5L can be ordered from cballast.com as a Carlo Gavazzi catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Carlo Gavazzi product?
- The manufacturer part number is MC36CH2OLM5L.
- What is the HS code for MC36CH2OLM5L?
- The customs tariff (HS) code for MC36CH2OLM5L is 9030.90.
- Who manufactures MC36CH2OLM5L?
- MC36CH2OLM5L is a Carlo Gavazzi product in the Safety & Detection range.
- Is a datasheet available for MC36CH2OLM5L?
- Yes — the MC36CH2OLM5L datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for MC36CH2OLM5L?
- The minimum order quantity is 1.
- Is MC36CH2OLM5L available?
- Yes — MC36CH2OLM5L is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
